DNMG 444-FM:T9415

DNMG 444-FM:T9415

SKU DOR8244280
by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: K - Cast Iron

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$0
$20.14 - $20.14
$20.14
$20.14 - $20.14
$20.14
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

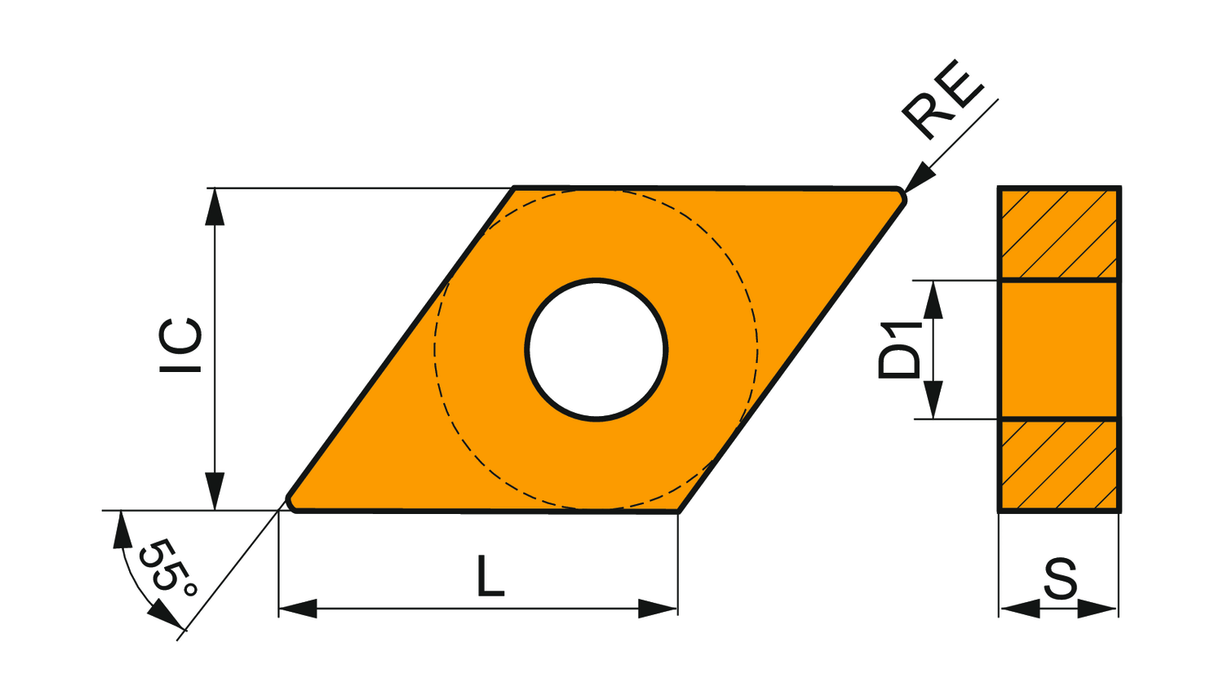

Insert Design: DNMG

Insert Shape Code: D - rhombic 55° included angle

Insert Shape Code: gid://shopify/Metaobject/130432892990

Insert Thickness: 0.25

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: FM

Grade: T9415

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 8244280

EAN: 3603604014632

MFG Part Number: 8244280
