A012N54

A012N54

by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals Possible Use: M - Stainless Steel S - High Temperature Alloys

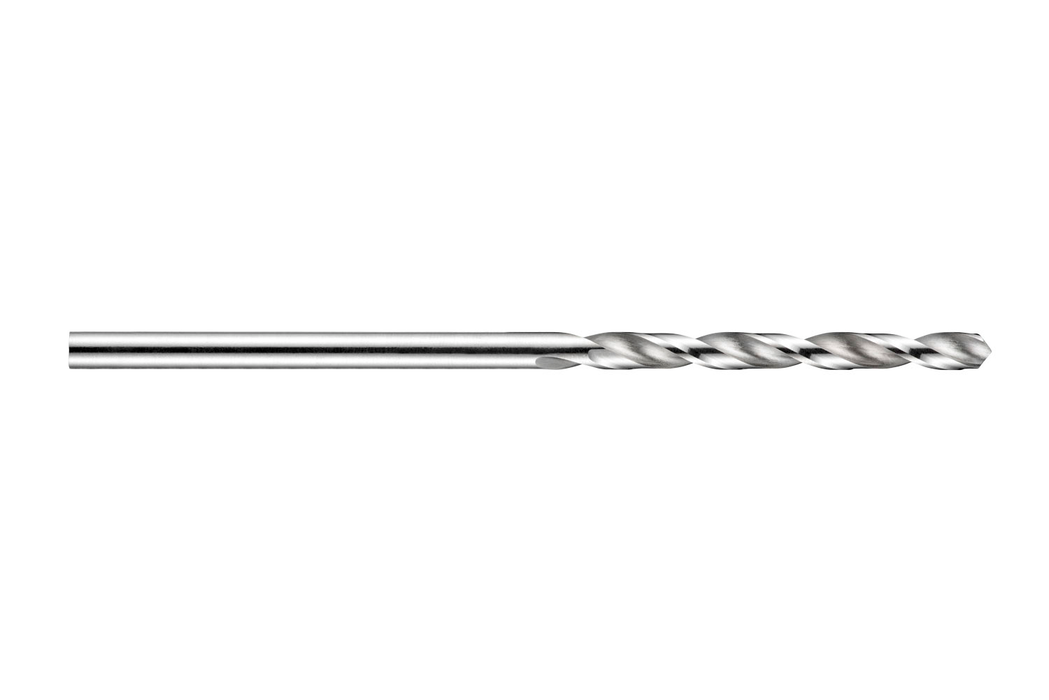

Jobber length drill with straight shank, diameter 0.0550" (N54) with an overall length of 1.7/8" and flute length of 7/8" according to ANSI standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$1.89 - $1.89
$1.89 - $1.89
$1.89
$1.89 - $1.89
$1.89
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.055

Cutting Diameter - mm (DC): 1.4

Drill Point Angle - deg: 118

Flute Length: 0.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 1.875

Connetion Diameter: 0.055

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 573990

EAN: 7320760573990

MFG Part Number: 5966825
