332HDN32

332HDN32

SKU PRE7233717
by Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.67 - $1.67
$1.67
$1.67 - $1.67
$1.67

Sold in packs of: 12

Jobber length drill with straight shank, diameter 0.1160" (N32) with an overall length of 2.3/4" and flute length of 1.5/8" according to ANSI standard with 135° split point, HSS with steam tempered + bronze finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN32
GradeST/Bronze
Product Number7233717
Product Family332HD

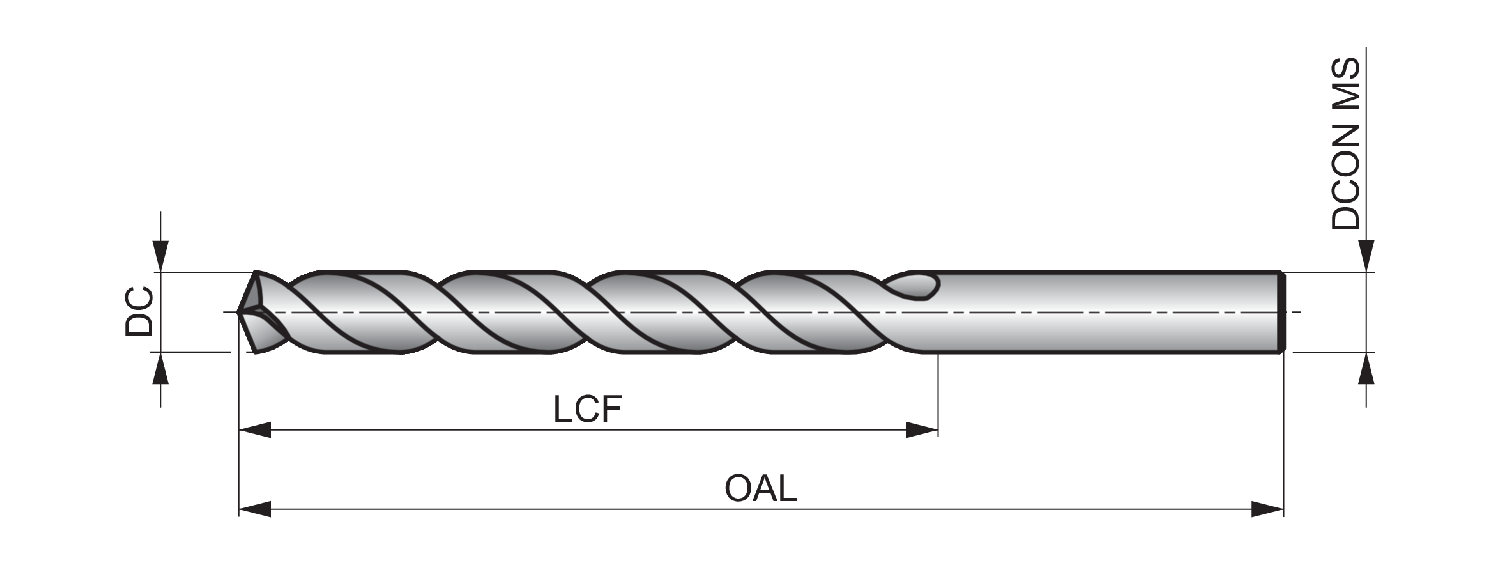

Dimensions
Cutting Diameter — in (DC)0.116"
Cutting Diameter — mm (DC)2.95 mm
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.116"
Connection Dia. — mm (DCON)2.95 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number47233717
EAN7320760717202
File Type Download
332HDN32 — 3D Model STP Download
332HDN32 — Line Drawing PDF Download
