S5335.0XD6

S5335.0XD6

SKU DOR6706546
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.36 - $108.36
$108.36
$108.36 - $108.36
$108.36

Sold in packs of: 1

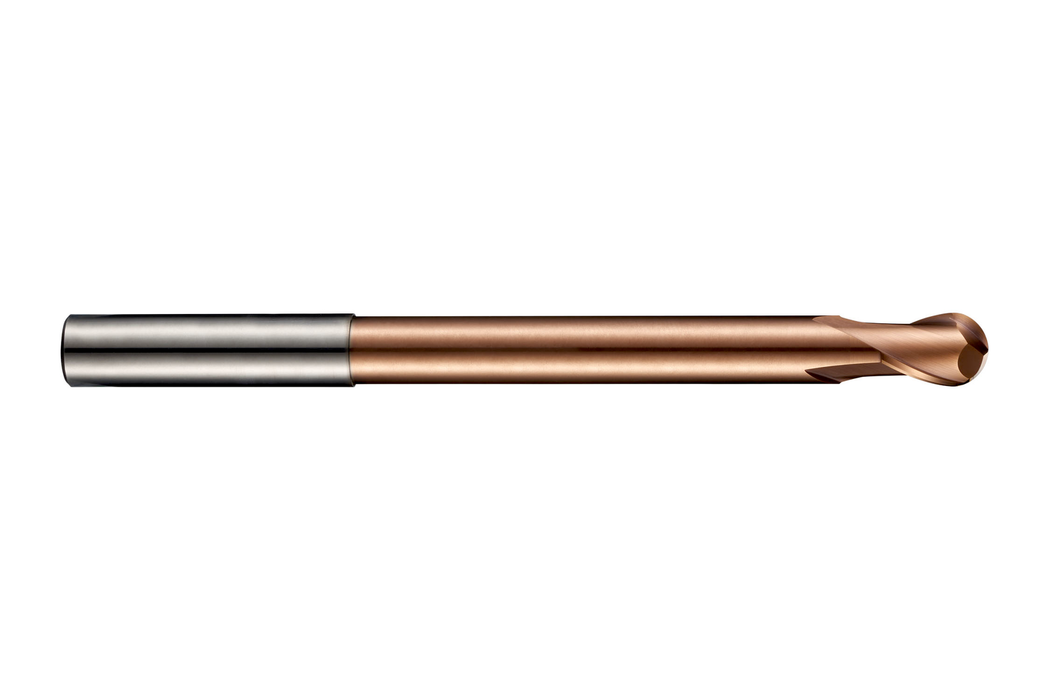

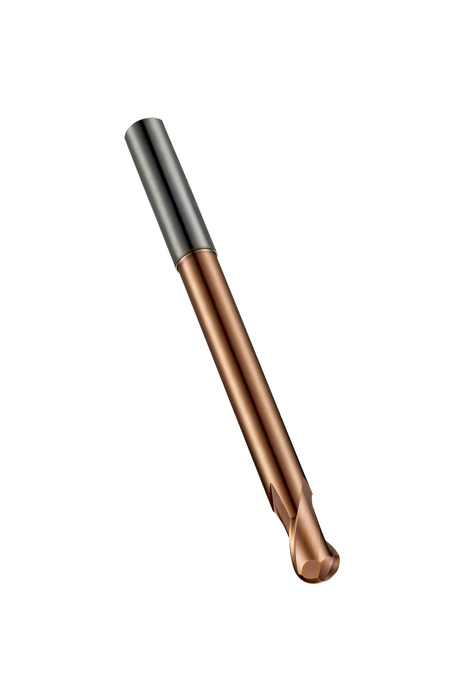

Extra short series ball-nose end mill with 2 flutes, diameter 5mm with 9mm length of cut, 100mm overall length, 50mm reach with neck relief and 2.5mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5335.0XD6
GradeTiSiN
Product Number6706546
Product FamilyS533

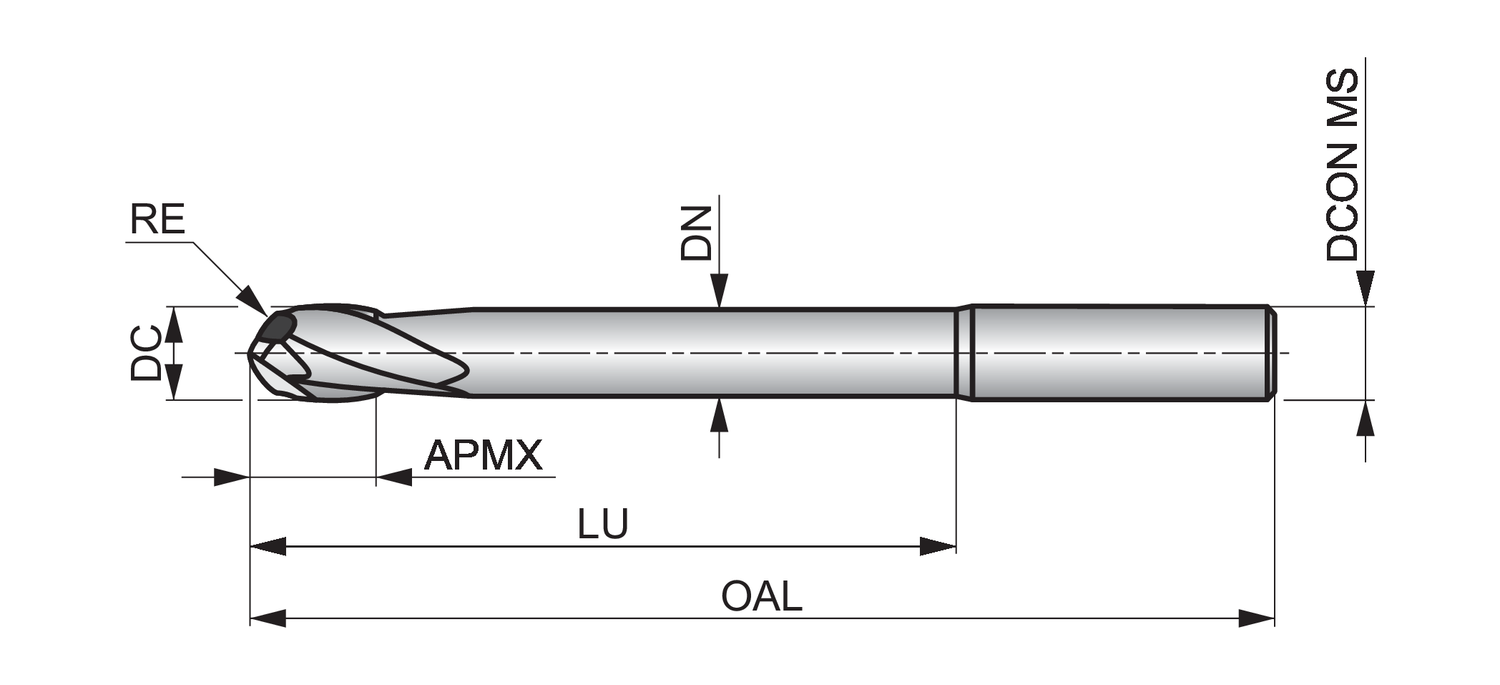

Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number46706546
EAN7320760680957
File Type Download
S5335.0XD6 — Line Drawing PDF Download
