S5216.0XR1.0

S5216.0XR1.0

SKU DOR6706676
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.37 - $99.37
$99.37
$99.37 - $99.37
$99.37

Sold in packs of: 1

Extra short series corner radius end mill with 4 flutes, diameter 6mm with 7mm length of cut, 60mm overall length, 20mm reach with neck relief and 1mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 45° helix and -10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5216.0XR1.0
GradeTiSiN
Product Number6706676
Product FamilyS521

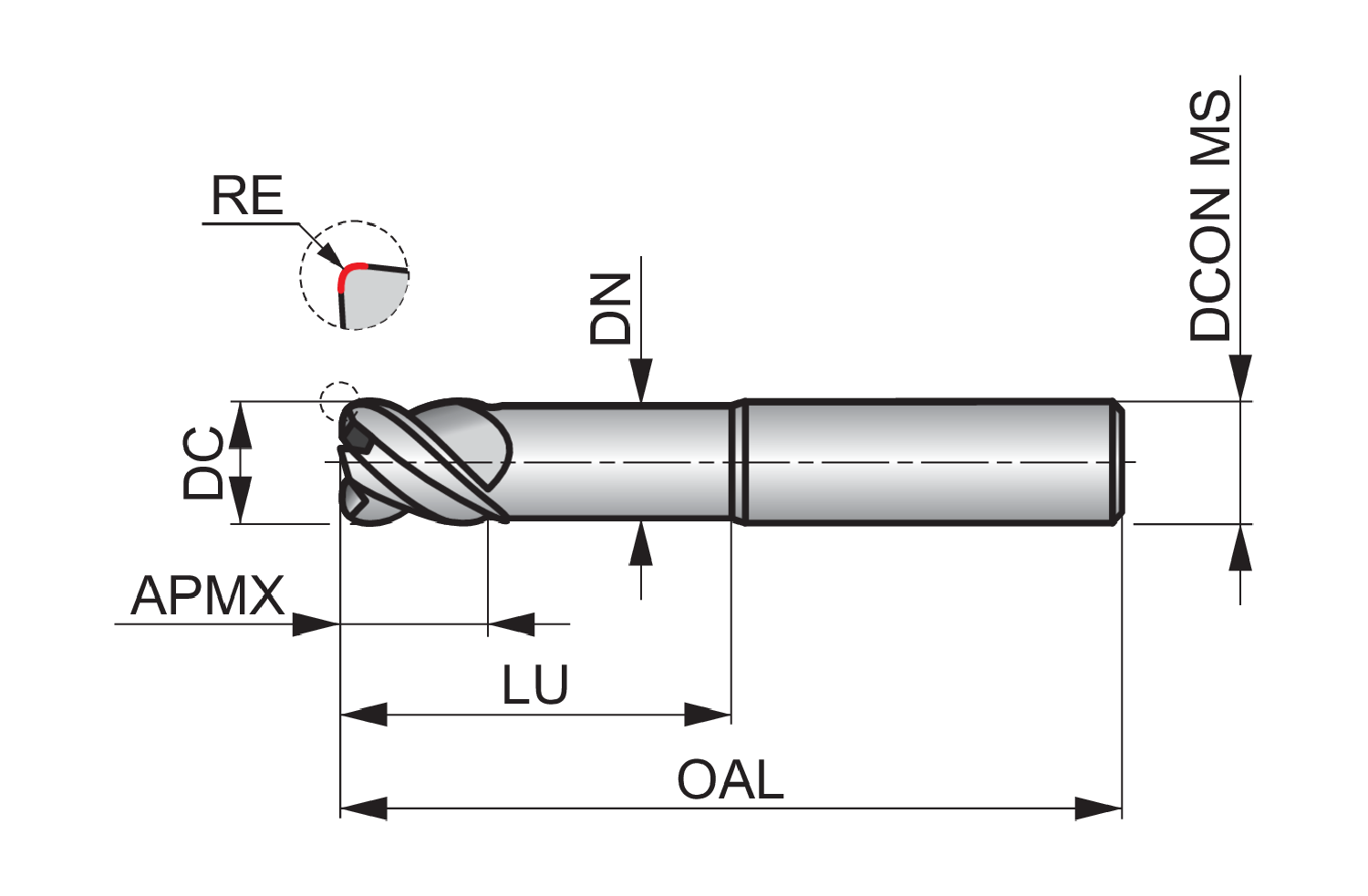

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number46706676
EAN7320760682258
File Type Download
S5216.0XR1.0 — Line Drawing PDF Download
