J26015.9-14

J26015.9-14

SKU DOR6821347
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$622.29 - $622.29
$622.29
$622.29 - $622.29
$622.29

Sold in packs of: 1

Thread milling cutter, for National Pipe Taper thread ≥ NPT 1/2" with 14 TPI, dimensions according to DORMER standard with 4 flutes, 15.9mm cutting diameter and 16mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20.46mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J26015.9-14
GradeAlcrona Pro
Product Number6821347
Product FamilyJ260
Insert Geometry
Depth of Cut Max — in (APMX)0.8055"
Depth of Cut Max — mm (APMX)20.46 mm

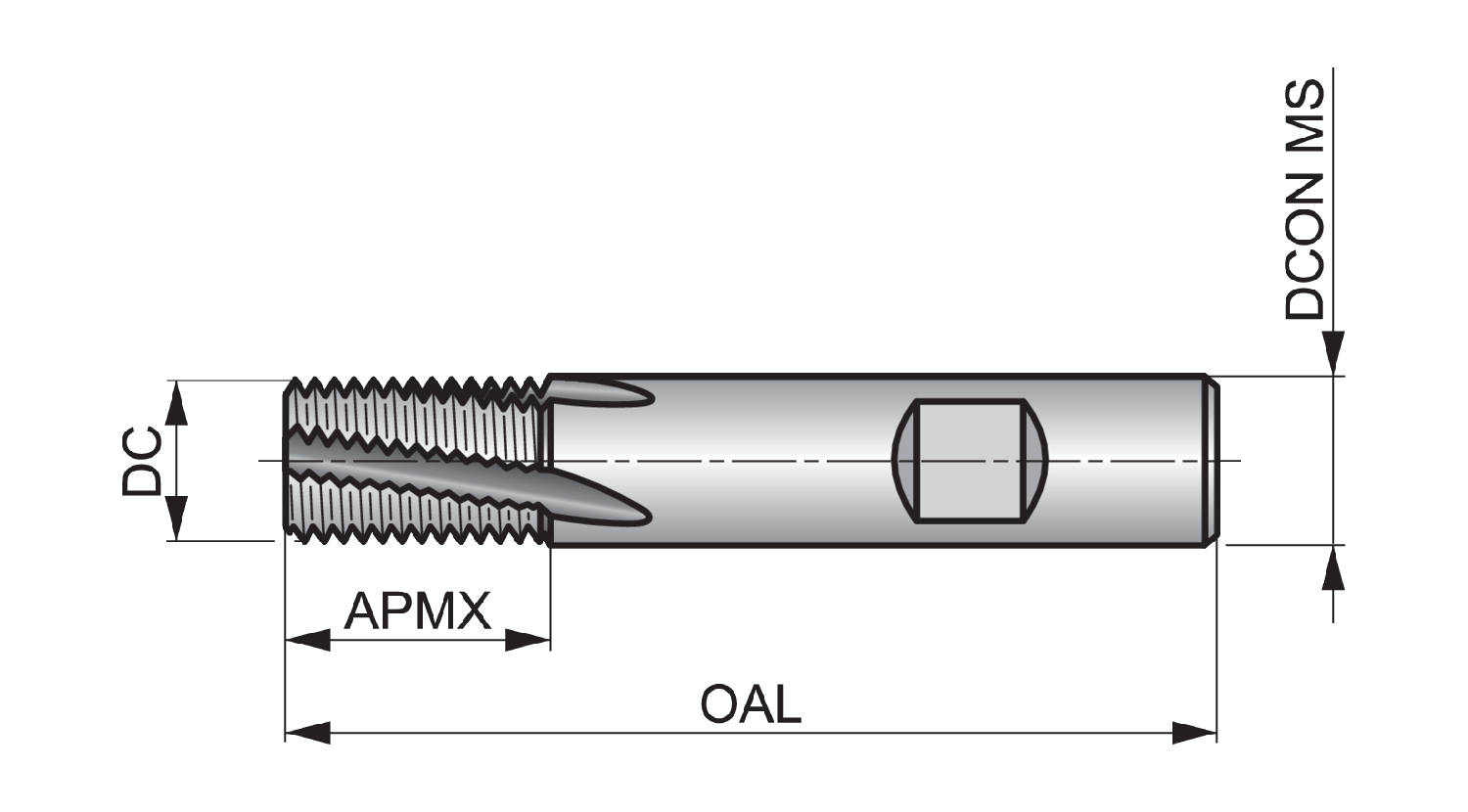

Dimensions
Cutting Diameter — in (DC)0.626"
Cutting Diameter — mm (DC)15.9 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)1/2, 3/4
Thread Form (THFT)NPT - National taper pipe
Threads per Inch (TPI)14.0
Tool Information
ShankCylindrical shank DIN 6535 HB
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number46821347
EAN7320760689257
File Type Download
J26015.9-14 — Line Drawing PDF Download
