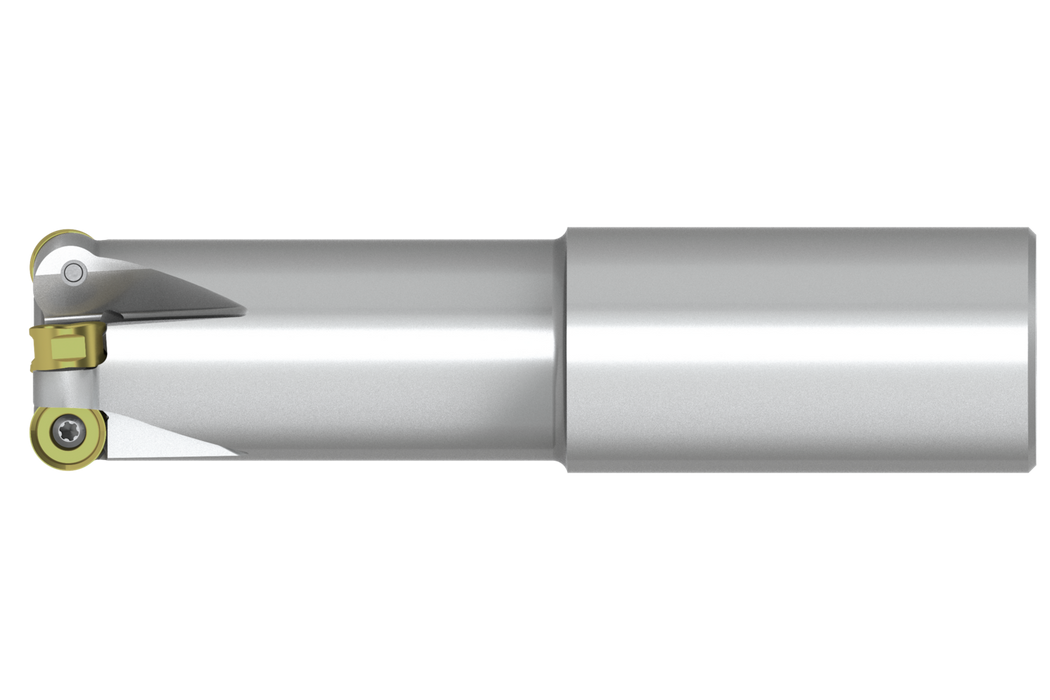

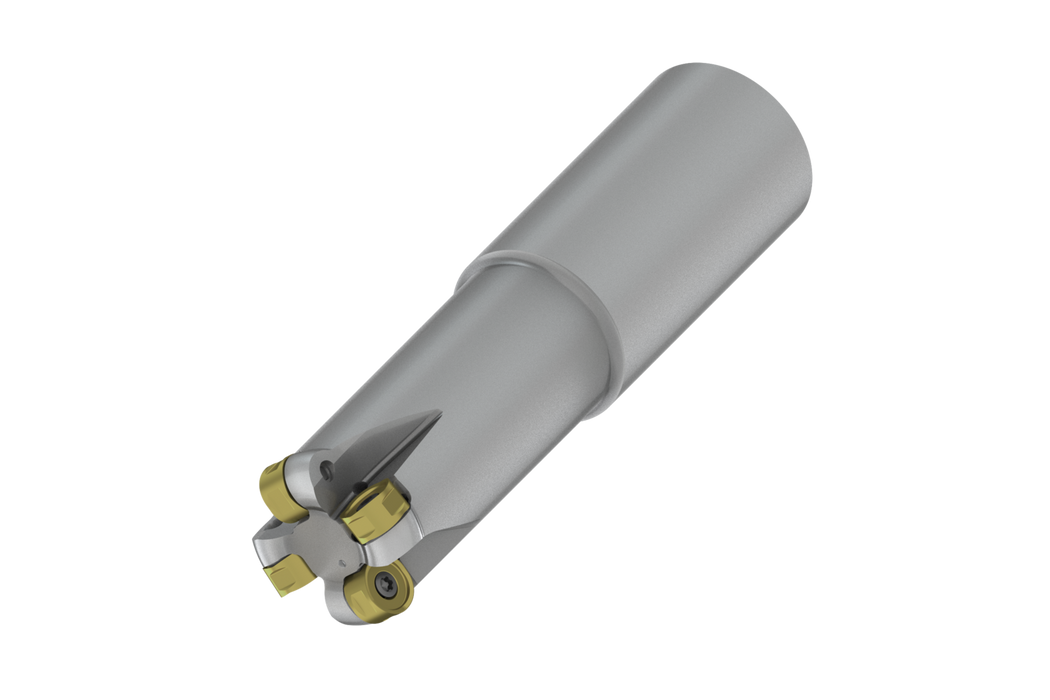

32E4R070A32-SRN10-C

32E4R070A32-SRN10-C

SKU DOR8547649
by Dormer Pramet
Primary Use:

Copy face mill with double negative geometry which utilises 4 of RNMU 1004MOT.. double-sided inserts, cutting diameter 32mm with 32mm parallel shank according to DIN 1835A, 70mm functional and 131mm overall length, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of 4.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$495.00 - $495.00
$495.00
$495.00 - $495.00
$495.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 0.866

Cutting Diameter - mm (DC): 22.0

Max Cut Diameter: 1.26

Overall Length (OAL): 5.157

Connetion Diameter: 0.492

Max. Depth of Cut: 0.197

Shank: Cylindrical shank DIN 1835A

Cutter Design: SRN10

Usable Length: 2.756

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8547649

EAN: 3603604262064

MFG Part Number: 8547649
