66A07R-SMORN12-C

66A07R-SMORN12-C

SKU DOR8547838
by Dormer Pramet
Primary Use:

Copy face mill with double negative geometry which utilises 7 of RNMU 1205MOT.. double-sided inserts, cutting diameter 66mm with 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of 5.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$717.00 - $717.00
$717.00
$717.00 - $717.00
$717.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

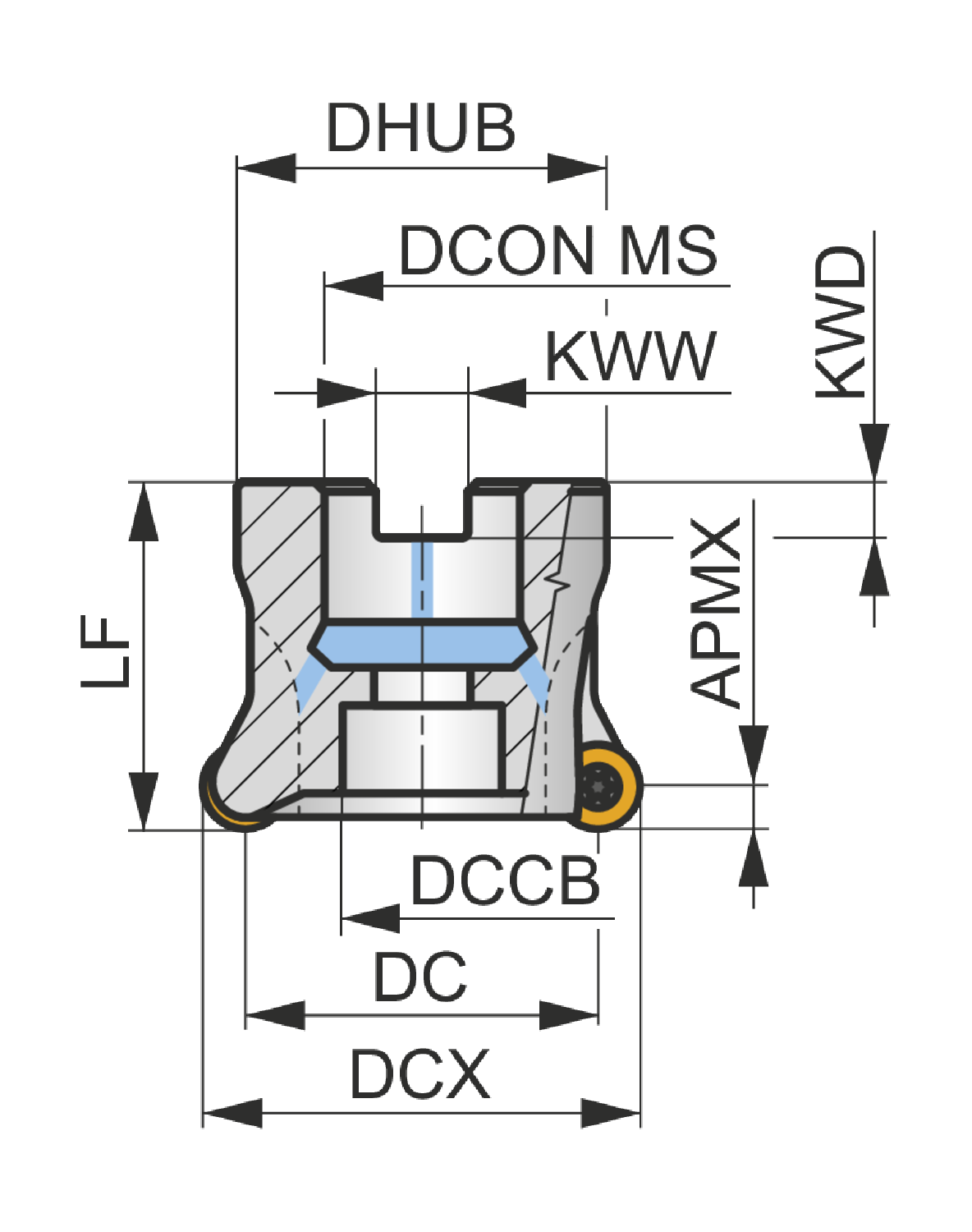

Cutting Diameter - in (DC): 2.126

Cutting Diameter - mm (DC): 54.0

Max Cut Diameter: 2.598

Connetion Diameter: 0.492

Max. Depth of Cut: 0.236

Insert Design: RNMU12

Shank: Shell mill DIN 8030 A

Cutter Design: SRN12

Functional Length: 1.969

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8547838

EAN: 3603604262217

MFG Part Number: 8547838
