200C06R-S90XN12N24
Primary Use:
Possible Use:
Possible Use:
Disc mill with positve/negative geometry which utilises 12 off XNHQ 1205.. double-sided inserts, cutting diameter 200mm with 90° approach angle and 40mm connection bore according to DIN 8030-C, 50mm protrusion length for deep slot milling with a width of cut of 19,0 ÷ 24,3mm
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$3,285.00
-
Original price
$3,285.00
Original price
$3,285.00
-
Original price
$3,285.00
Original price
Current price
$3,285.00
$3,285.00
-
$3,285.00
Current price
$3,285.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

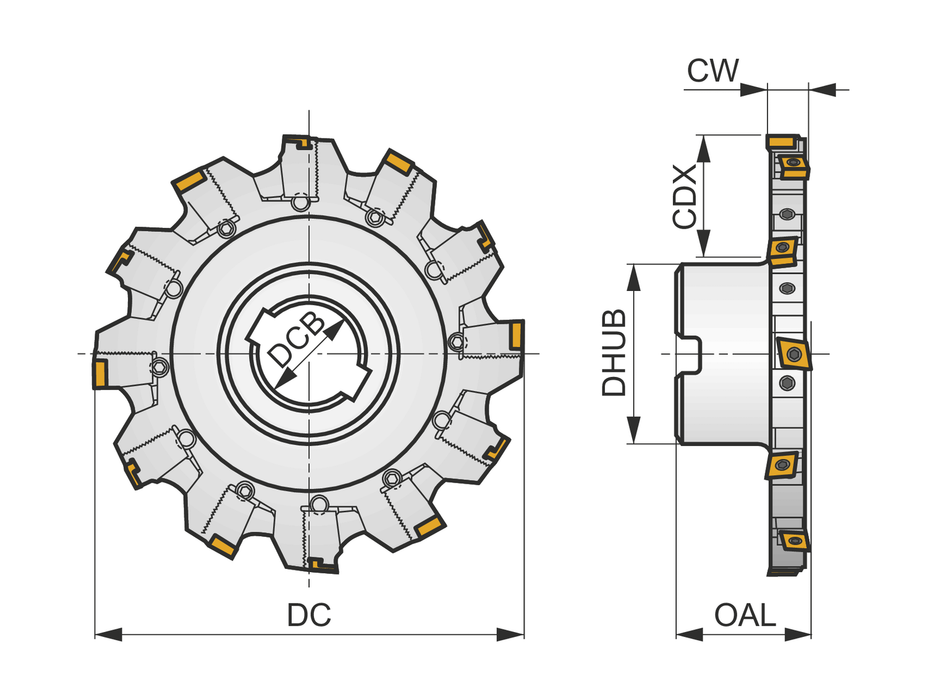

Cutting Diameter - in (DC): 7.874
Cutting Diameter - mm (DC): 200.0
Overall Length (OAL): 1.969
Tool Direction: Right
Shank: Shell mill DIN 8030 C
Cutter Design: S90CN(XN)
Cutting Edge Count: 12
EDP: 6760165
EAN: 3603602955111
MFG Part Number: 6760165
