501-6N15

501-6N15

SKU PRE6001465
by Precision Twist Drill
Primary Use:

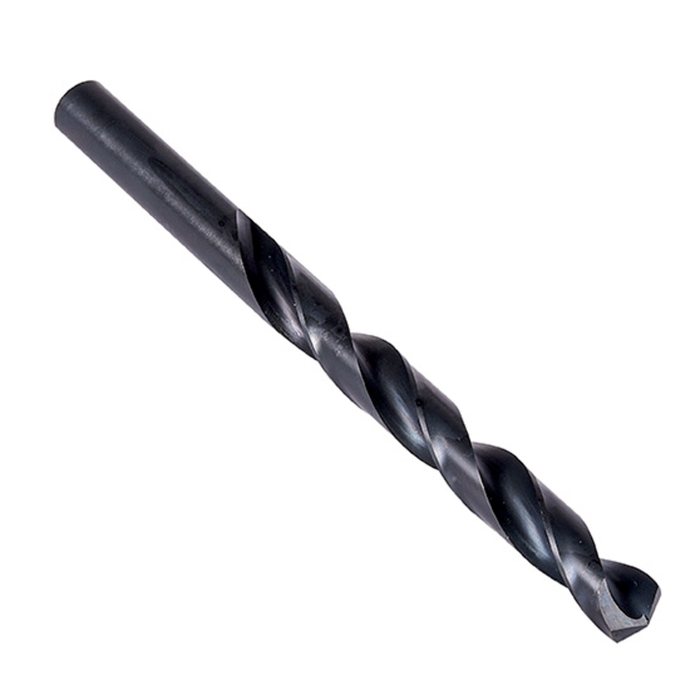

Aircraft extension-length drill with straight shank, diameter 0.1800" (N15) with an overall length of 6" and flute length of 2.3/16" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$6.27 - $6.27
$6.27
$6.27 - $6.27
$6.27
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

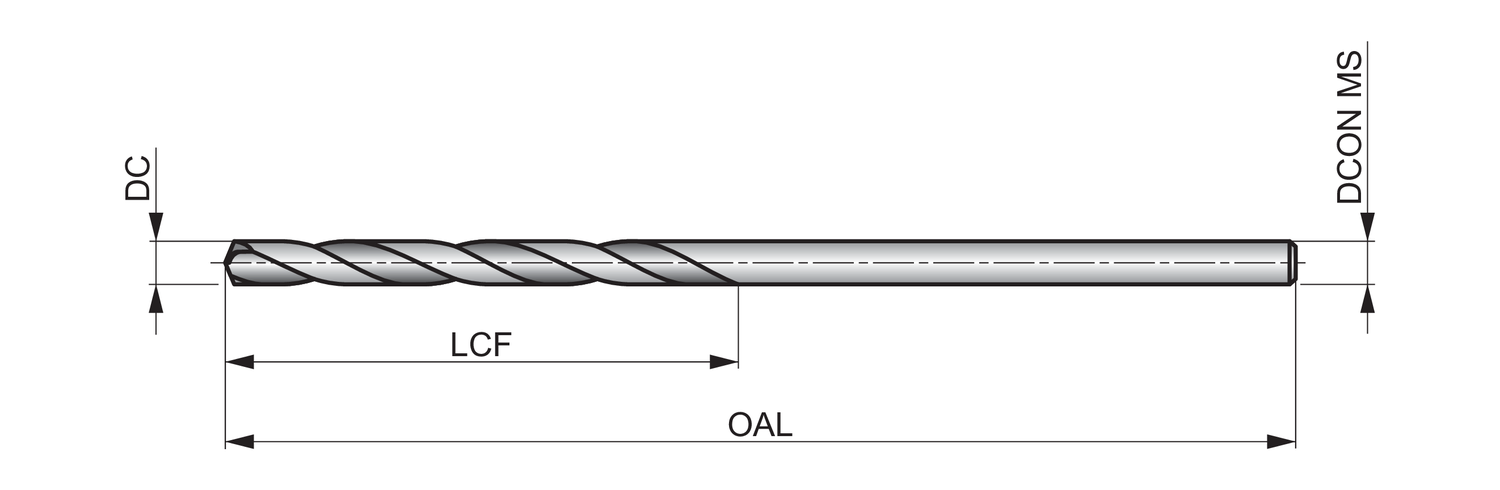

Cutting Diameter - in (DC): 0.18

Cutting Diameter - mm (DC): 4.57

Drill Point Angle - deg: 135

Flute Length: 2.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.0

Connetion Diameter: 0.18

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 58115

MFG Part Number: 6001465
