35A3R034A32-STD17D-C

35A3R034A32-STD17D-C

SKU DOR8782471
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$388.00 - $388.00
$388.00
$388.00 - $388.00
$388.00

Sold in packs of: 1

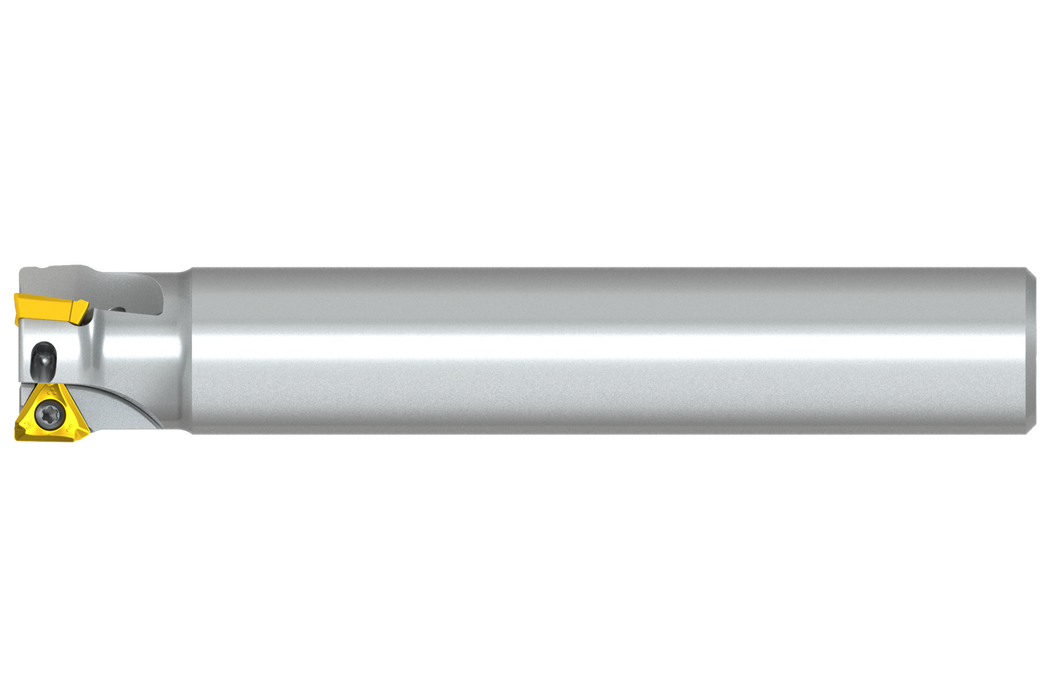

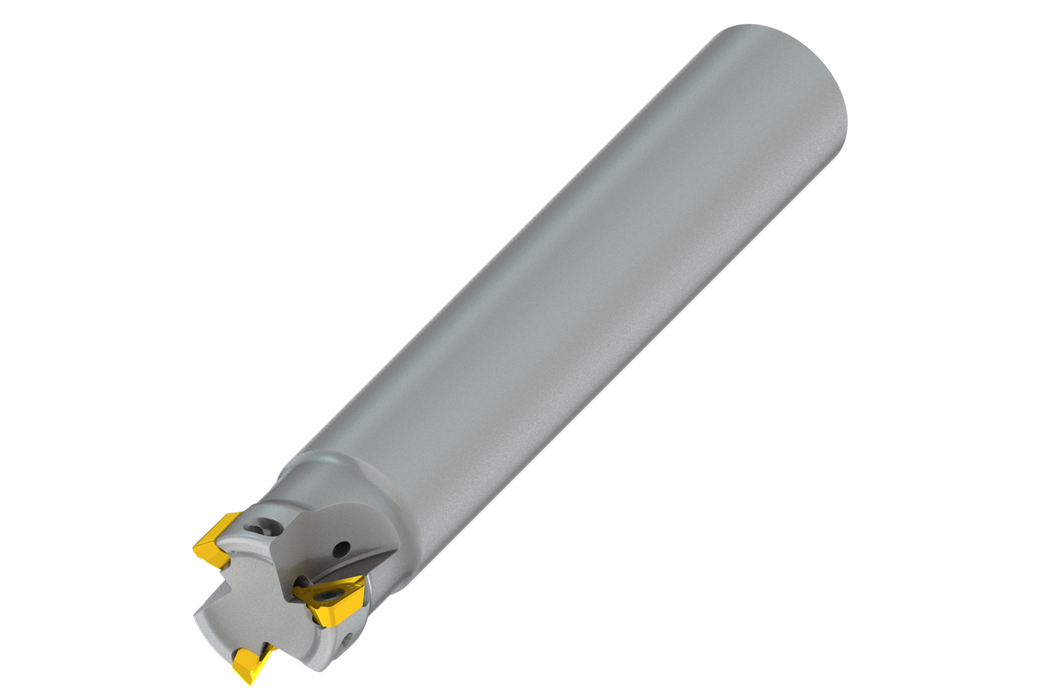

Shoulder mill with positve/negative geometry which utilises 3 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 35mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 34mm functional and 195mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 11.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35A3R034A32-STD17D-C
Product Number8782471
Product FamilySTD17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)195.0 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSTD17
ShankCylindrical shank DIN 1835A
Reference Numbers
EDP Number8782471
EAN3603604536448
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
35A3R034A32-STD17D-C — 3D Model STP Download
35A3R034A32-STD17D-C — 2D Model DXF Download
