40A3R050B32-STD17D-C

40A3R050B32-STD17D-C

SKU DOR8782476
by Dormer Pramet
Primary Use:

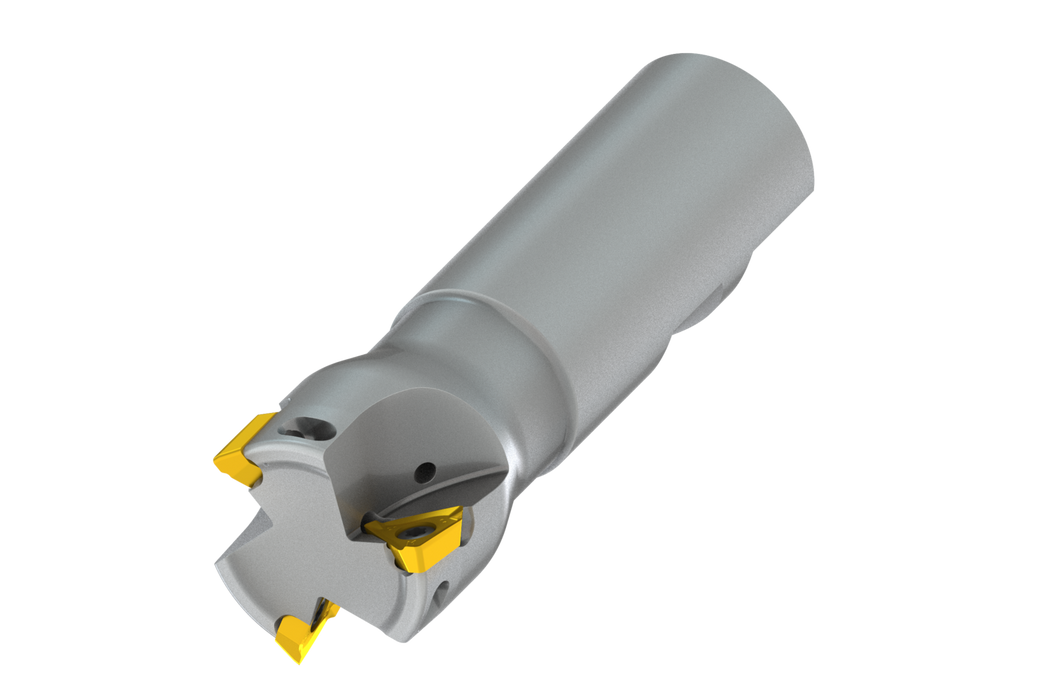

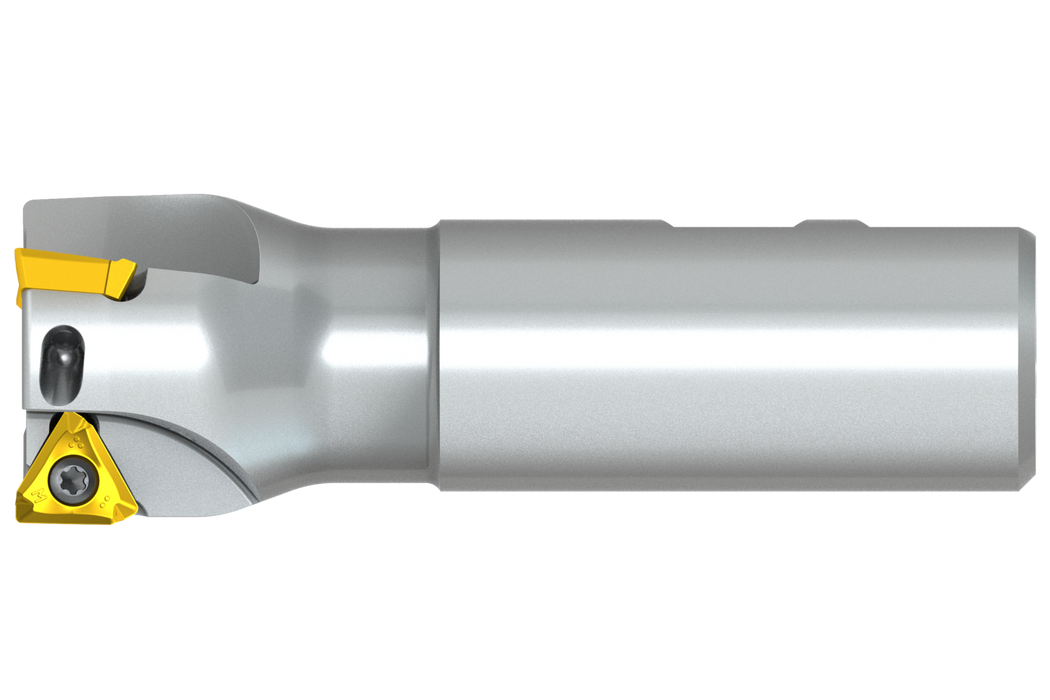

Shoulder mill with positve/negative geometry which utilises 3 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 50mm functional and 120mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 11.0mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$402.00 - $402.00
$402.00
$402.00 - $402.00
$402.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.575

Cutting Diameter - mm (DC): 40.0

Overall Length (OAL): 4.724

Connetion Diameter: 0.492

Max. Depth of Cut: 0.433

Shank: Weldon shank DIN 1835B

Cutter Design: STD17

Usable Length: 1.969

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

Hardened Material: Primary use

EDP: 8782476

EAN: 3603604536486

MFG Part Number: 8782476
