63A06R-S90TD17D-C

63A06R-S90TD17D-C

SKU DOR8782497
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$645.00 - $645.00
$645.00
$645.00 - $645.00
$645.00

Sold in packs of: 1

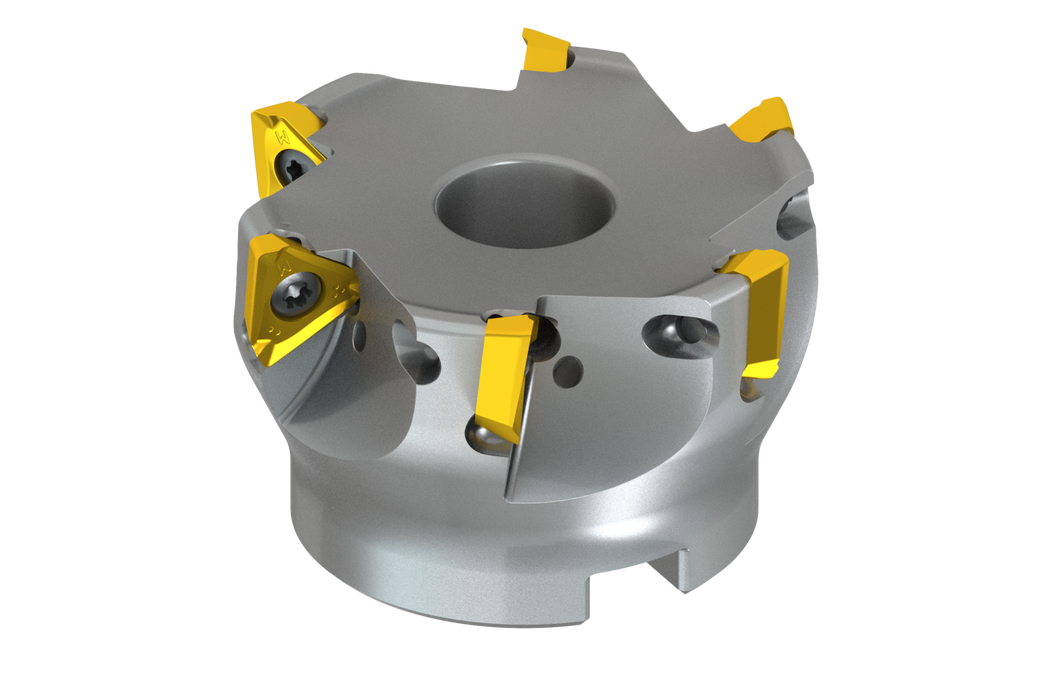

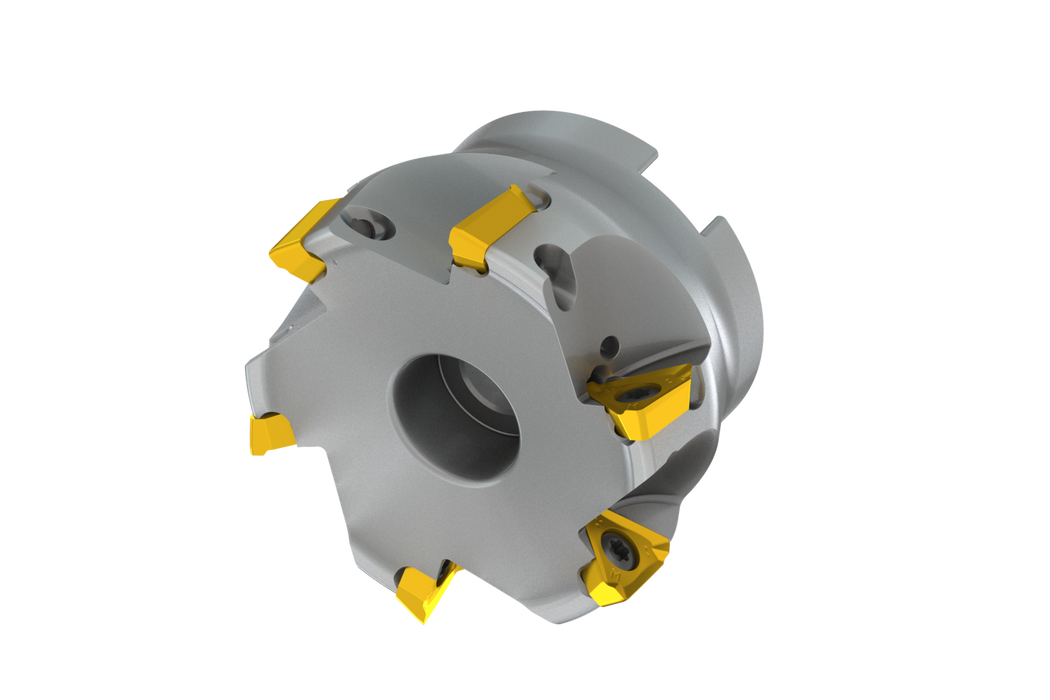

Shoulder mill with positve/negative geometry which utilises 6 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 63mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 11.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-S90TD17D-C
Product Number8782497
Product FamilySTD17
Insert Geometry
Insert DesignTDET17
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSTD17
ShankShell mill DIN 8030 A
Reference Numbers
EDP Number8782497
EAN3603604536592
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
63A06R-S90TD17D-C — 3D Model STP Download
63A06R-S90TD17D-C — 2D Model DXF Download
