125A3R315C125-ISTD17D-C

125A3R315C125-ISTD17D-C

SKU DOR8782552
by Dormer Pramet
Primary Use:

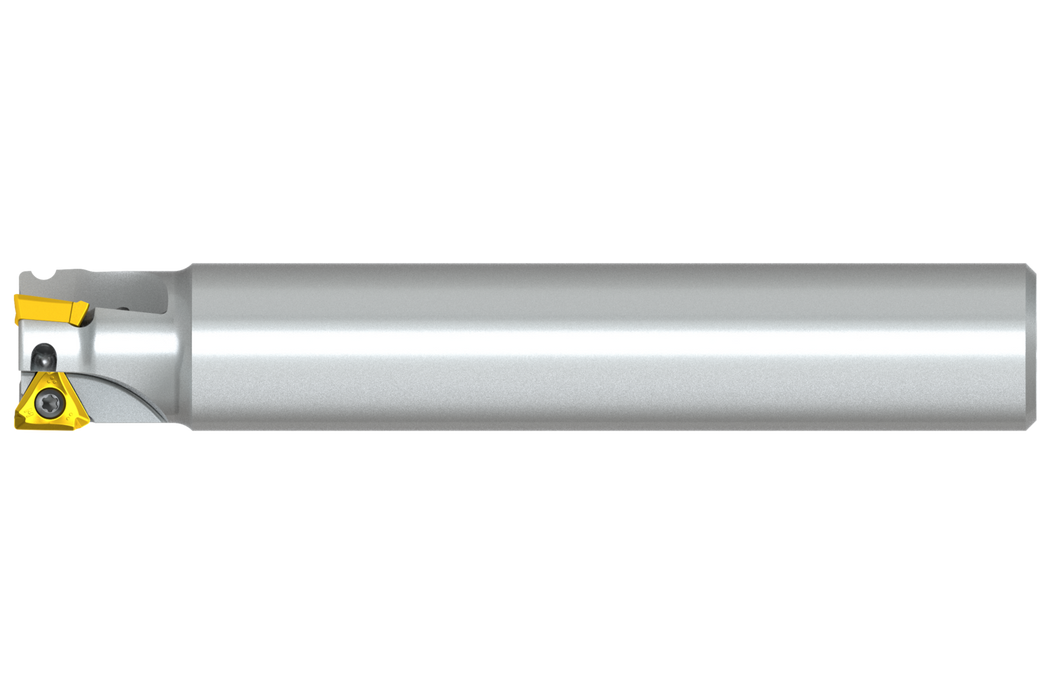

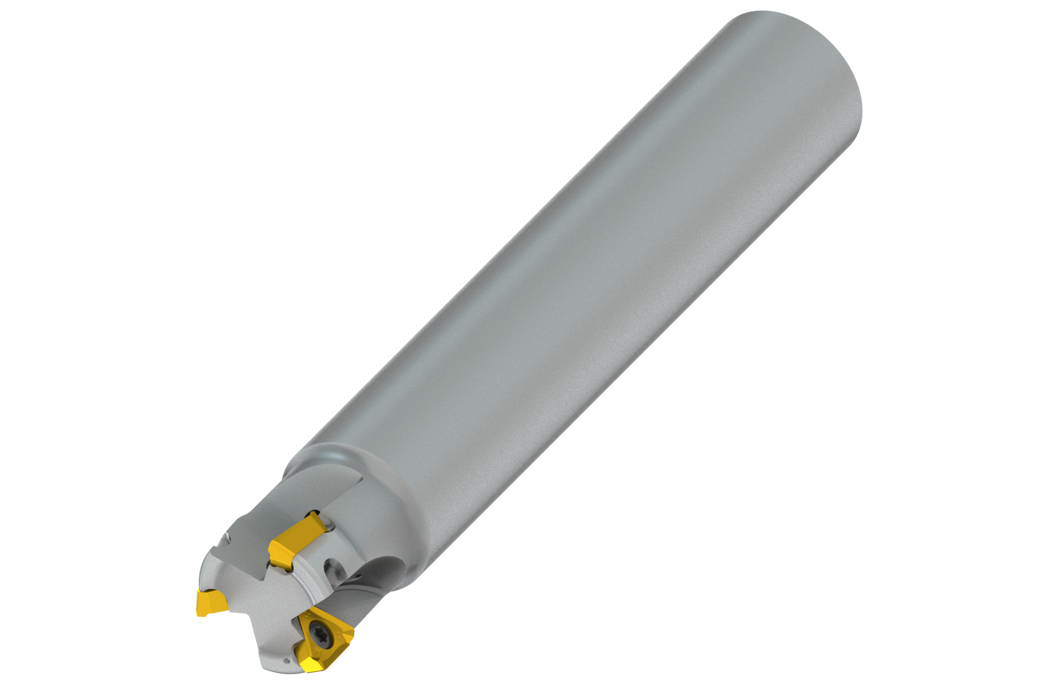

Shoulder mill with positve/negative geometry which utilises 3 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 1.250'' with 90° approach angle and 1.250'' parallel shank according to DIN 1835A, 3.150'' functional and 7.677'' overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .433''

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$356.00 - $356.00
$356.00
$356.00 - $356.00
$356.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.25

Cutting Diameter - mm (DC): 31.75

Overall Length (OAL): 7.677

Connetion Diameter: 0.492

Max. Depth of Cut: 0.433

Shank: Cylindrical shank DIN 1835A

Cutter Design: STD17

Usable Length: 3.15

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

EDP: 8782552

EAN: 3603604536745

MFG Part Number: 8782552
