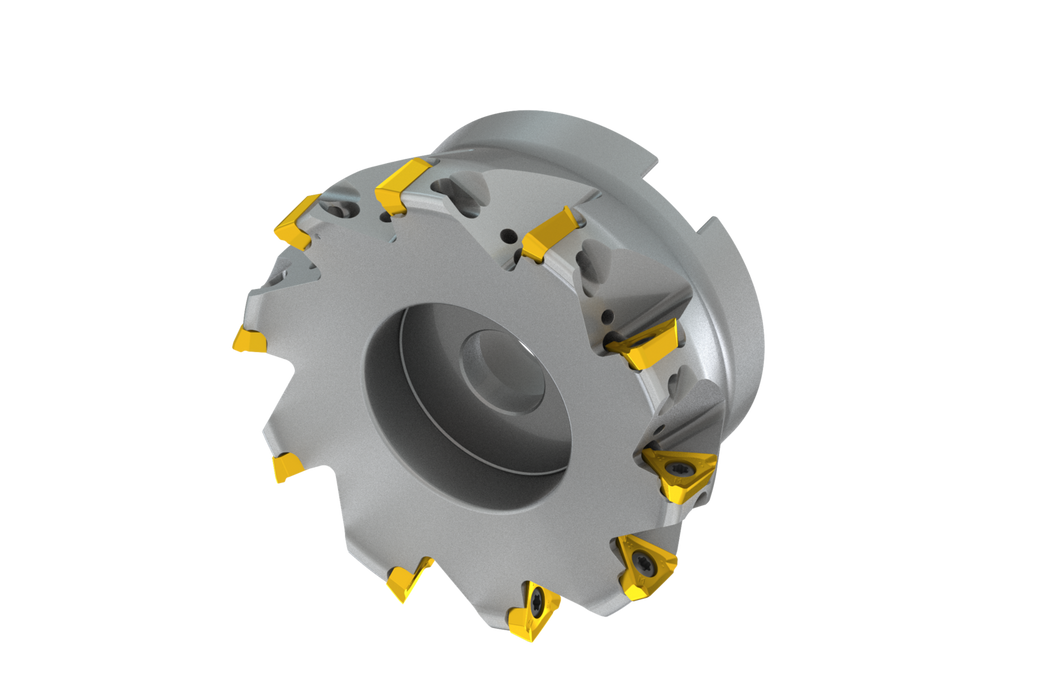

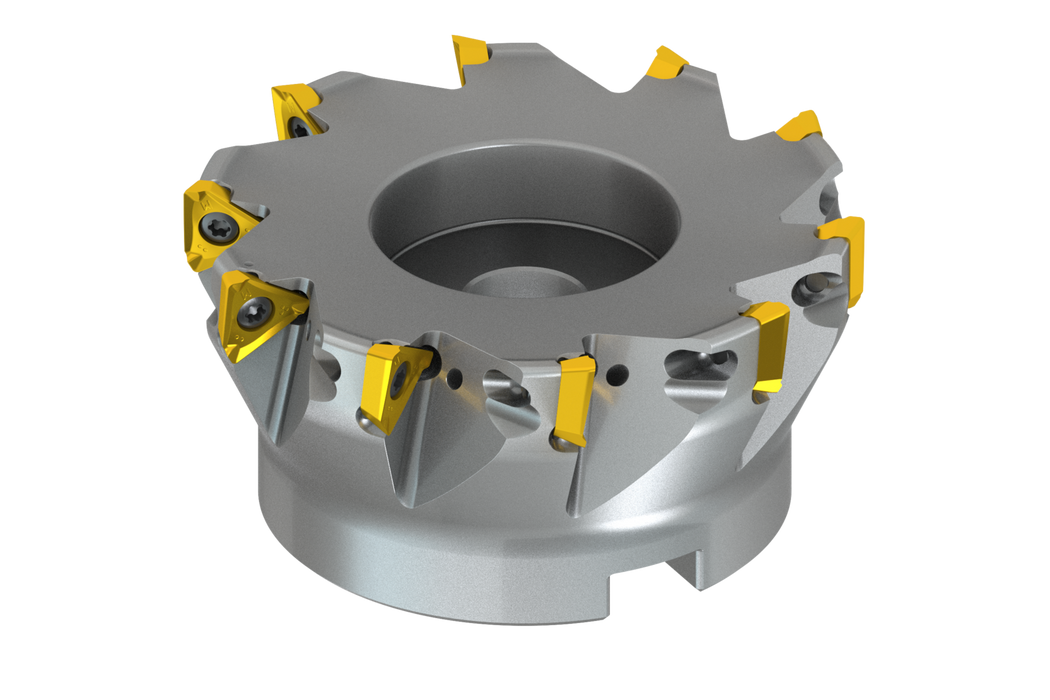

400A10R-IS90TD17D-C

400A10R-IS90TD17D-C

SKU DOR8782663
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$918.00 - $918.00
$918.00
$918.00 - $918.00
$918.00

Sold in packs of: 1

Shoulder mill with positve/negative geometry which utilises 10 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .433''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400A10R-IS90TD17D-C
Product Number8782663
Product FamilyISTD17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Dimensions
Cutting Diameter — in (DC)4.0"
Cutting Diameter — mm (DC)101.6 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSTD17
ShankShell mill DIN 8030 A
Reference Numbers
EDP Number8782663
EAN3603604536875
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
File Type Download
400A10R-IS90TD17D-C — 3D Model STP Download
400A10R-IS90TD17D-C — 2D Model DXF Download
