A25S-SVJBR 11
SKU DOR6759720
Primary Use:
Possible Use:

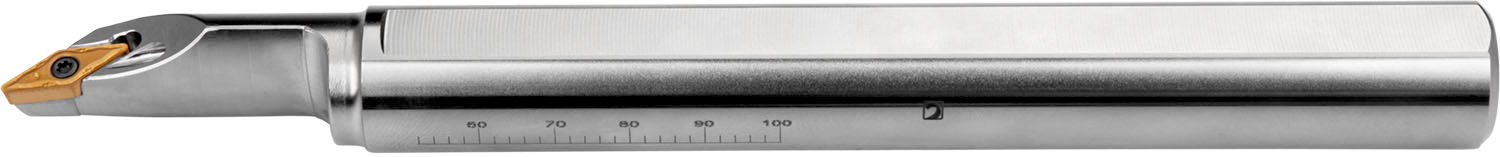

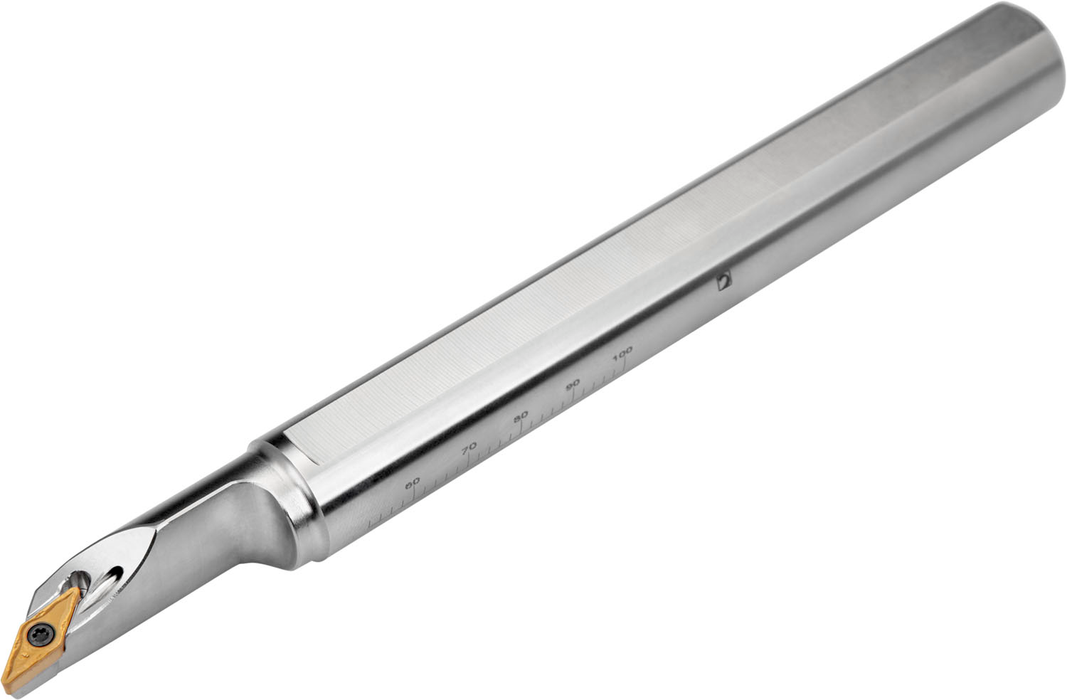

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), right hand 93° side cutting with off-set shank, steel with coolant hole, 25mm diameter x 250mm long for face copy turning
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$293.00
-
Original price
$293.00
Original price
$293.00
$293.00
-
$293.00
Current price
$293.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

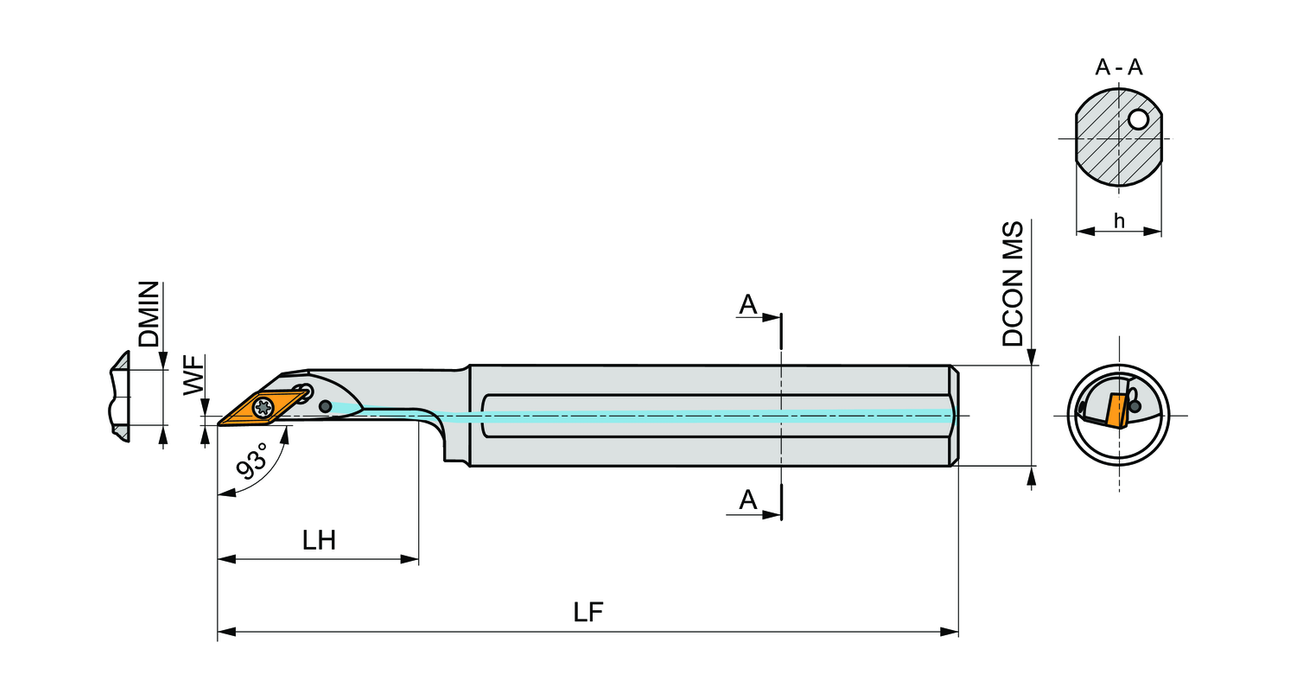

Through Coolant: 1
Connetion Diameter: 0.984
Height: 0.906
Minimum Bore: 1.26
Tool Direction: Left
Insert Designation: ["VB.. 1103.."]
Functional Length: 9.843
EDP: 6759720
EAN: 3603602950666
MFG Part Number: 6759720
