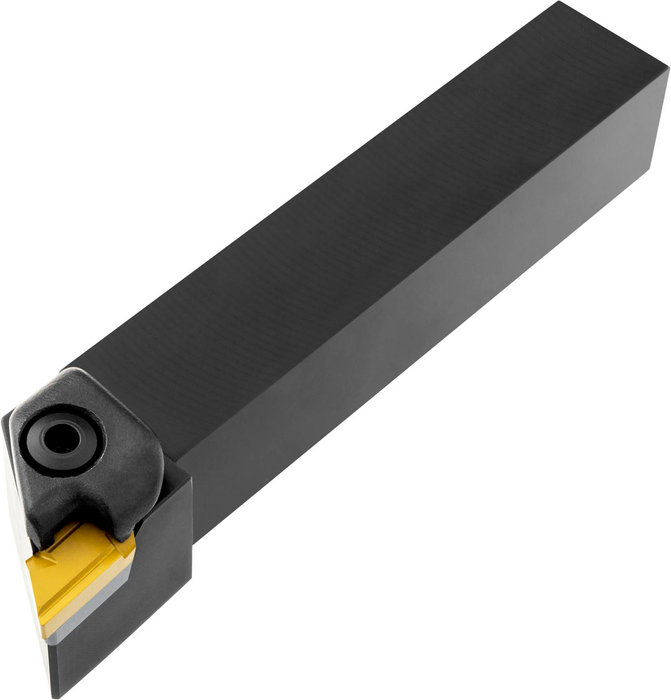

CKJNR 2020 K 16
SKU DOR6756934
Primary Use:
Possible Use:

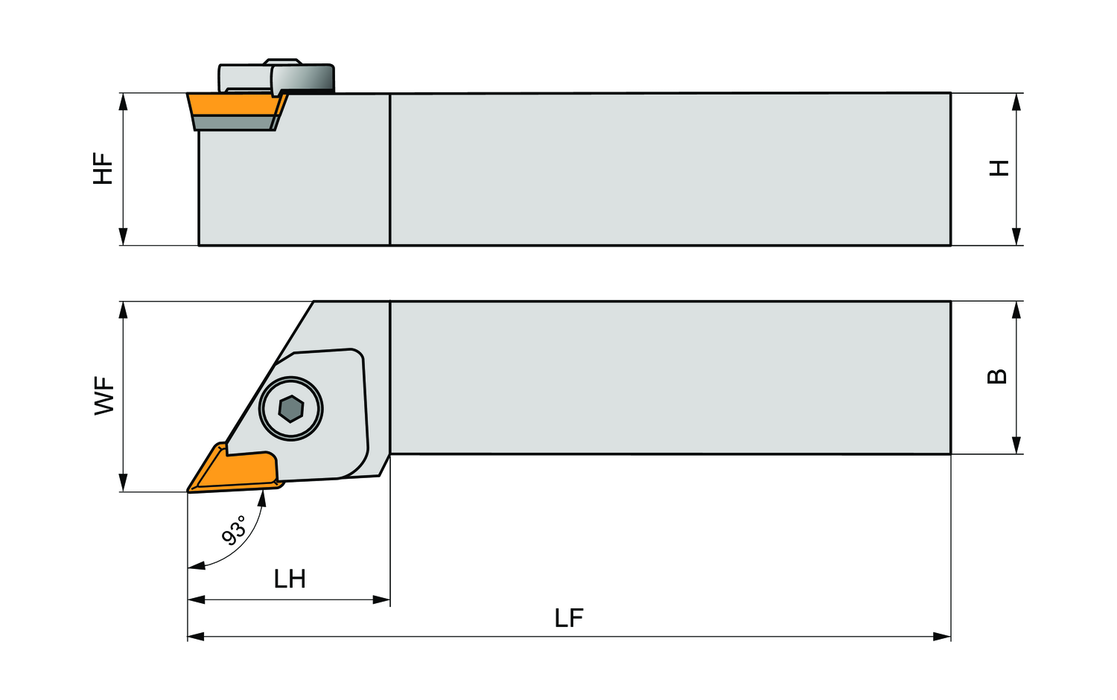

Top clamp turning tool for holding a 55° parallelogram, negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation KN.X 1604…R ), right hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$215.00
-
Original price
$215.00
Original price
$215.00
$215.00
-
$215.00
Current price
$215.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.787
Tool Direction: Left
Insert Designation: ["KN.X 1604…R"]
Functional Length: 4.921
EDP: 6756934
EAN: 3603602923004
MFG Part Number: 6756934
