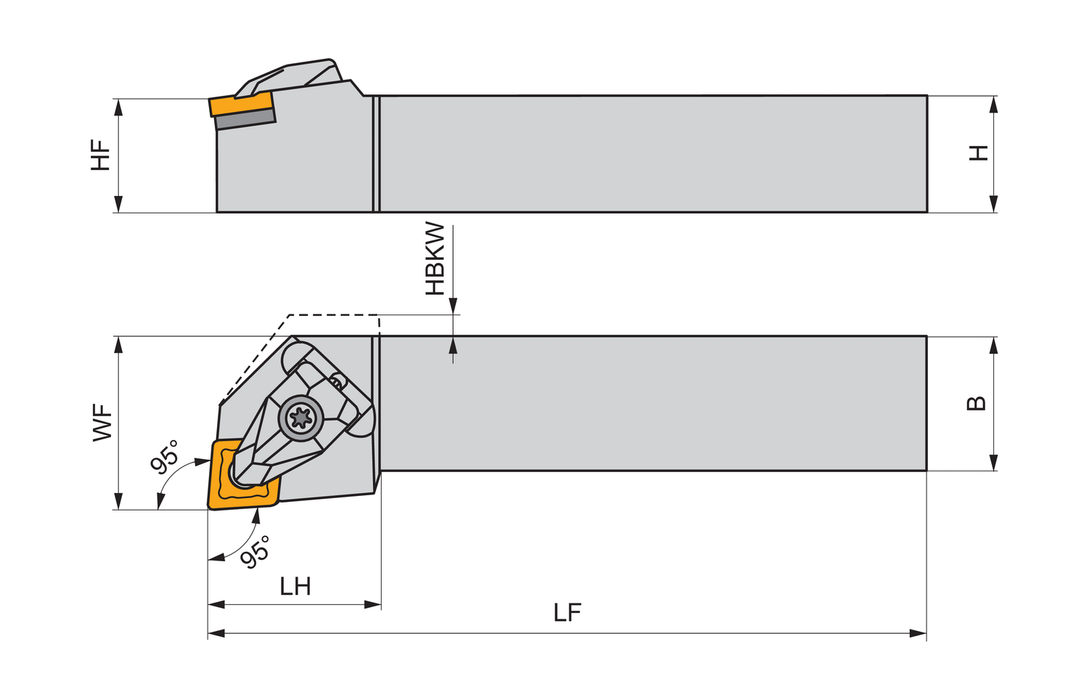

DCLNL 3225 P 16
SKU DOR6757929
Primary Use:
Possible Use:
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), left hand 95° side and end cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$167.00
-
Original price
$167.00
Original price
$167.00
$167.00
-
$167.00
Current price
$167.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.26
Tool Direction: Right
Insert Designation: ["CN.. 1606.."]
Functional Length: 6.693
EDP: 6757929
EAN: 3603602932853
MFG Part Number: 6757929
