DVJNR 16 3D
SKU DOR6788530
Primary Use:
Possible Use:

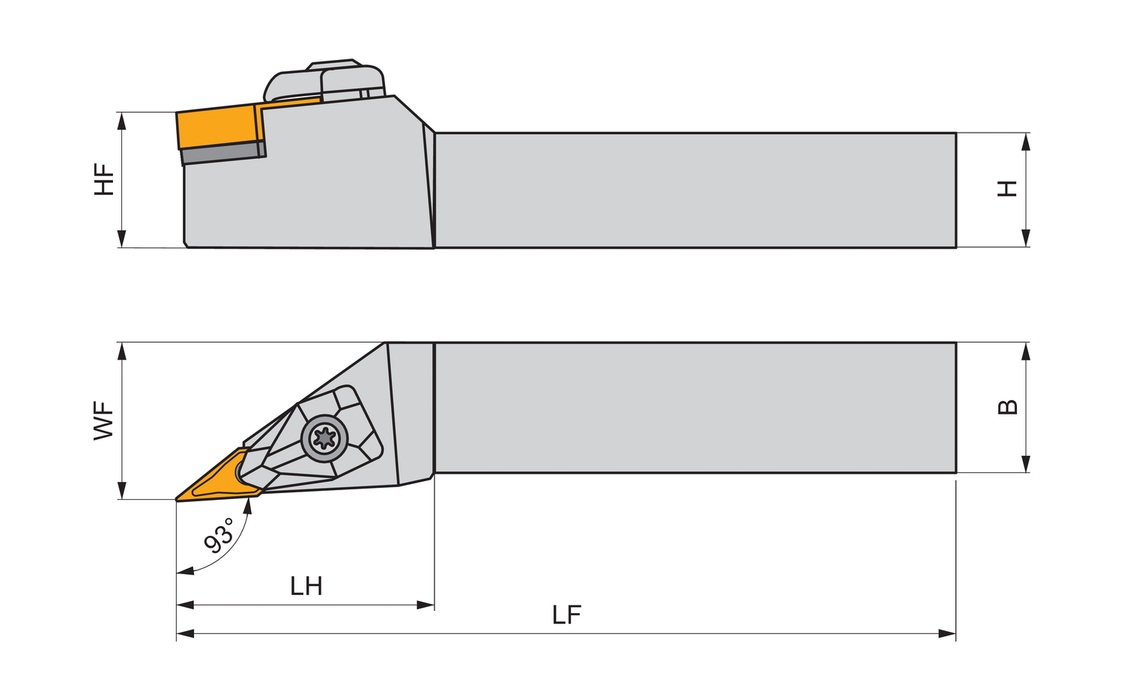

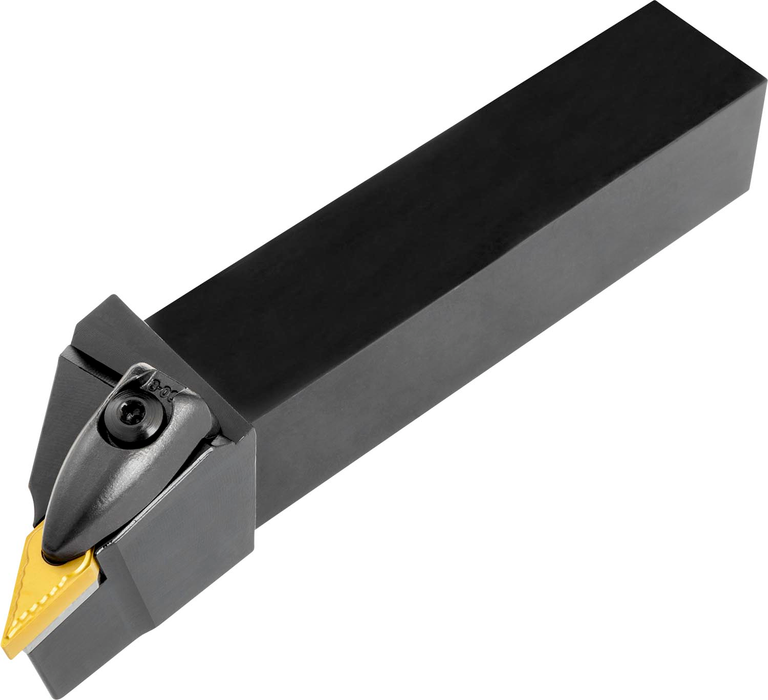

Double clamp turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation VN.. 33. ), right hand 93° side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$153.00
-
Original price
$153.00
Original price
$153.00
$153.00
-
$153.00
Current price
$153.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.0
Insert Designation: ["VN.. 33."]
Functional Length: 6.0
EDP: 6788530
EAN: 3603602982919
MFG Part Number: 6788530
