DCRNR 12 4B
SKU DOR6788538
Primary Use:
Possible Use:

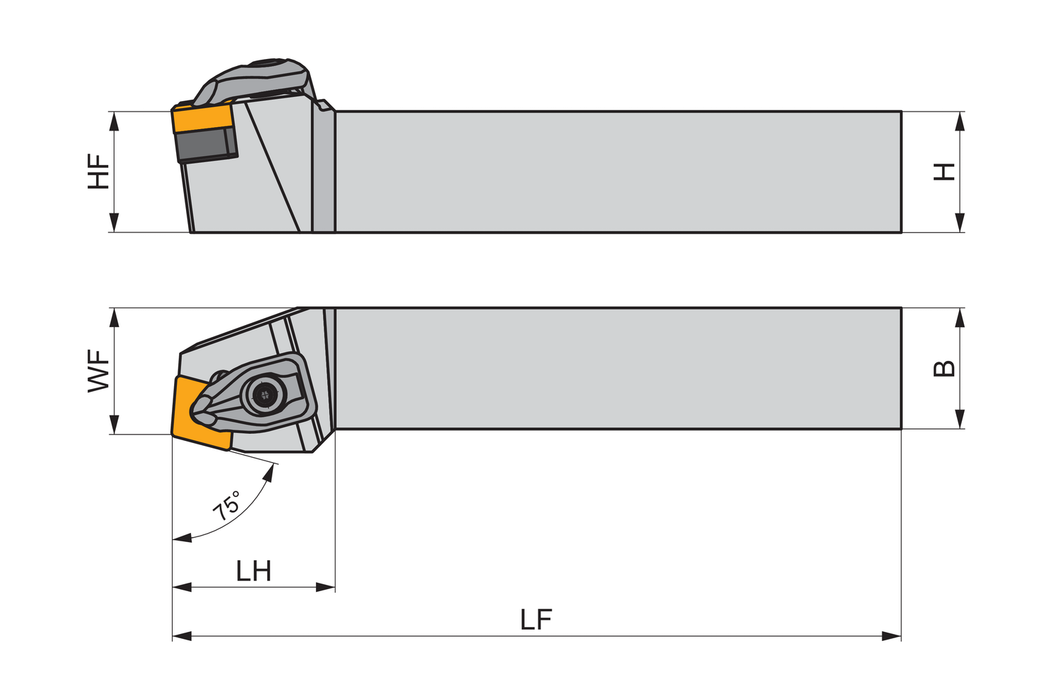

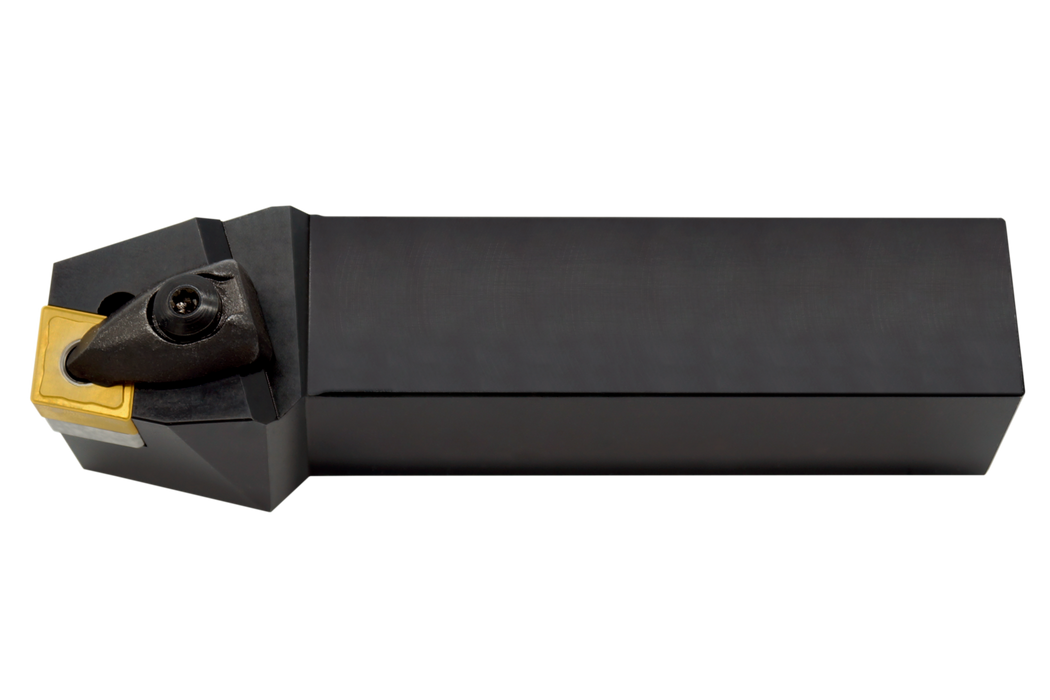

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), right hand 75° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for chamfering, taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$145.00
-
Original price
$145.00
Original price
$145.00
$145.00
-
$145.00
Current price
$145.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Designation: ["CN.. 43."]
Functional Length: 4.5
EDP: 6788538
EAN: 3603602982995
MFG Part Number: 6788538
