DCBNL 2525 M 16
SKU DOR7028369
Primary Use:
Possible Use:

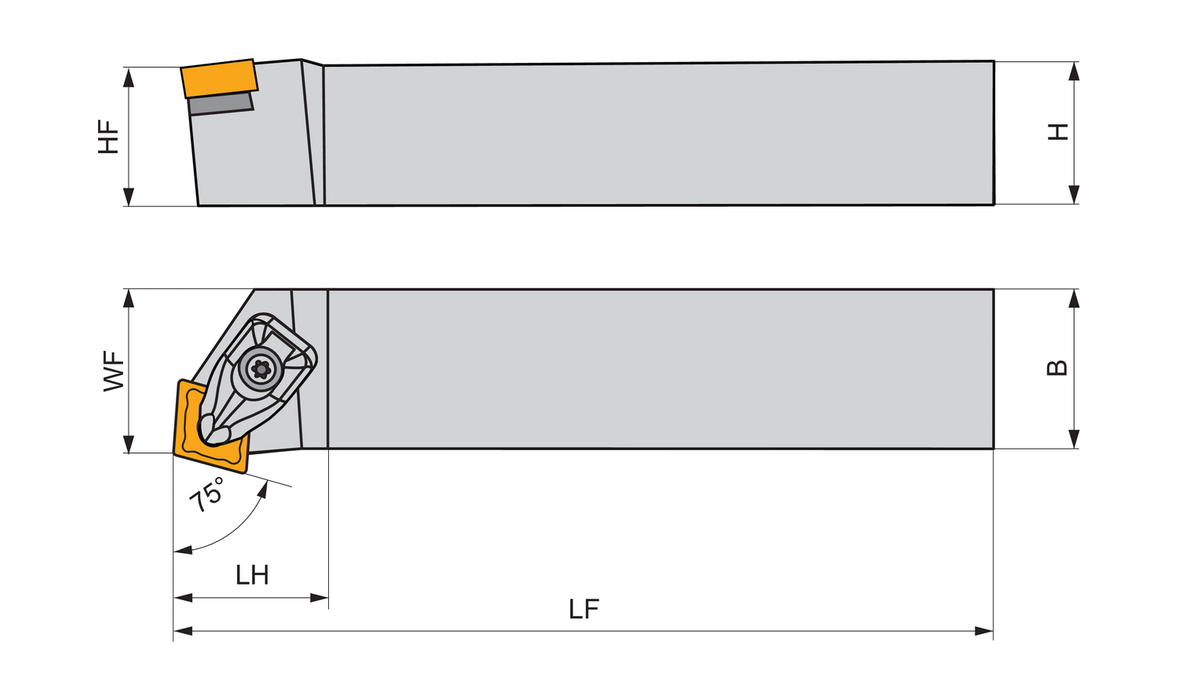

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), left hand 75° side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$153.00
-
Original price
$153.00
Original price
$153.00
$153.00
-
$153.00
Current price
$153.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.984
Tool Direction: Left
Insert Designation: ["CN.. 1606.."]
Functional Length: 5.906
EDP: 7028369
EAN: 3603603105041
MFG Part Number: 7028369
