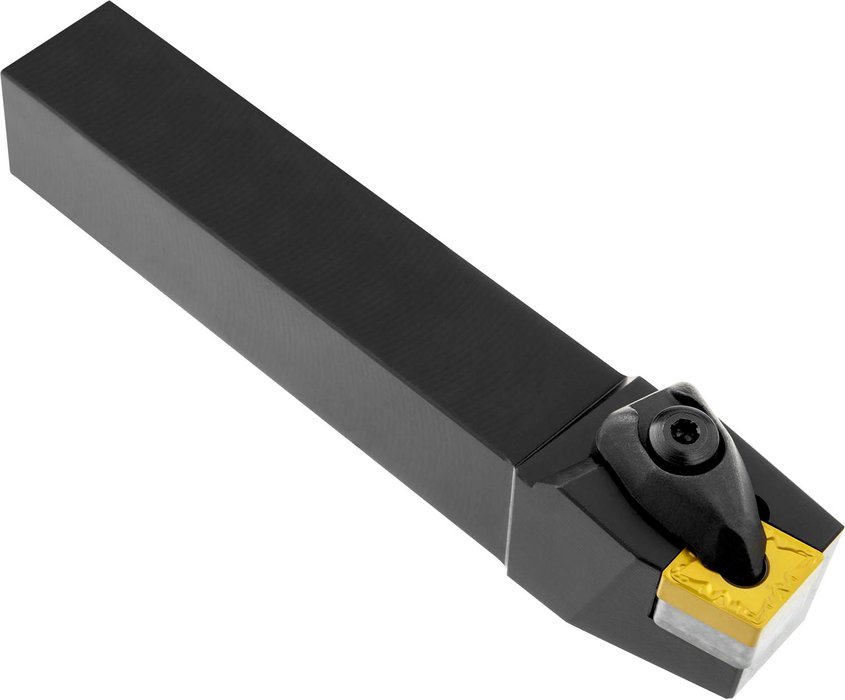

DCBNL 3225 P 12
SKU DOR7028400
Primary Use:
Possible Use:

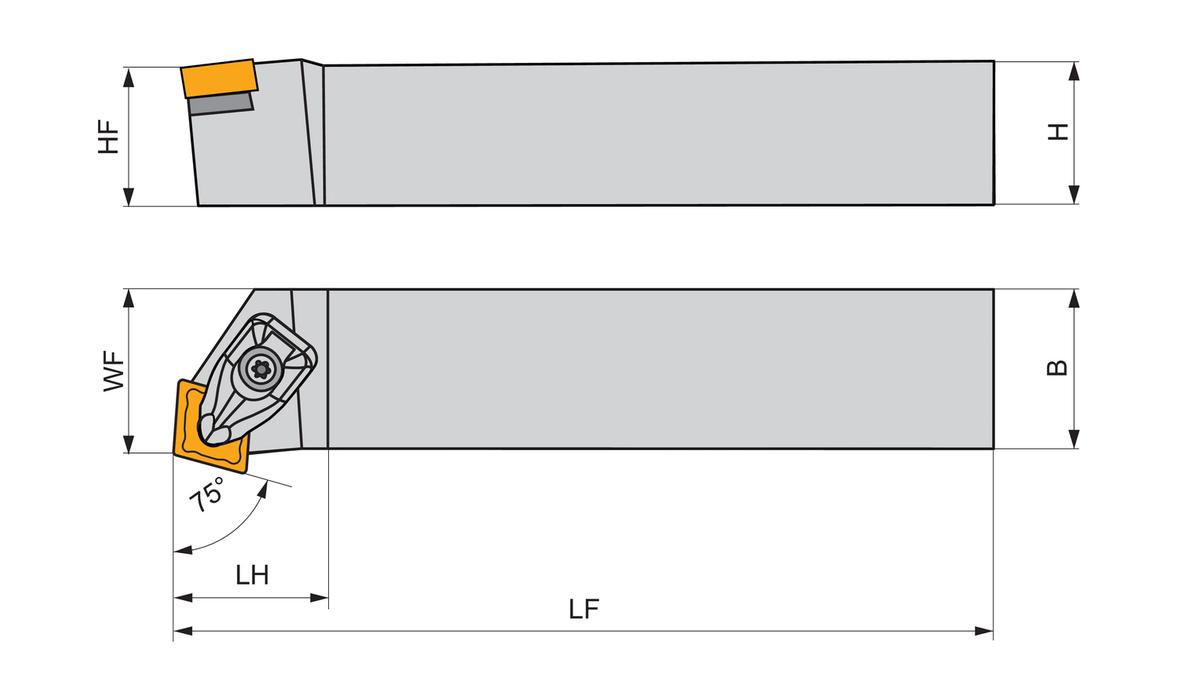

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 75° side cutting with straight shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$168.00
-
Original price
$168.00
Original price
$168.00
$168.00
-
$168.00
Current price
$168.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.26
Tool Direction: Left
Insert Designation: ["CN.. 1204.."]
Functional Length: 6.693
EDP: 7028400
EAN: 3603603105058
MFG Part Number: 7028400
