STGCL 10 CA-11

STGCL 10 CA-11

SKU DOR6757377
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 - $169.00
$169.00
$169.00 - $169.00
$169.00

Sold in packs of: 1

ISO Turning cartridge with screw clamp for holding a triangular positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation TC.. 1102.. ), in accordance with DIN 4985 left hand 90° side cutting with off-set shank for taper turning and longitudinal turning without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STGCL 10 CA-11
Product Number6757377
Product FamilySTGC(RL) 10 CA
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolLeft
Reference Numbers
EDP Number6757377
EAN3603602927330
File Type Download
STGCL 10 CA-11 — 3D Model STP Download

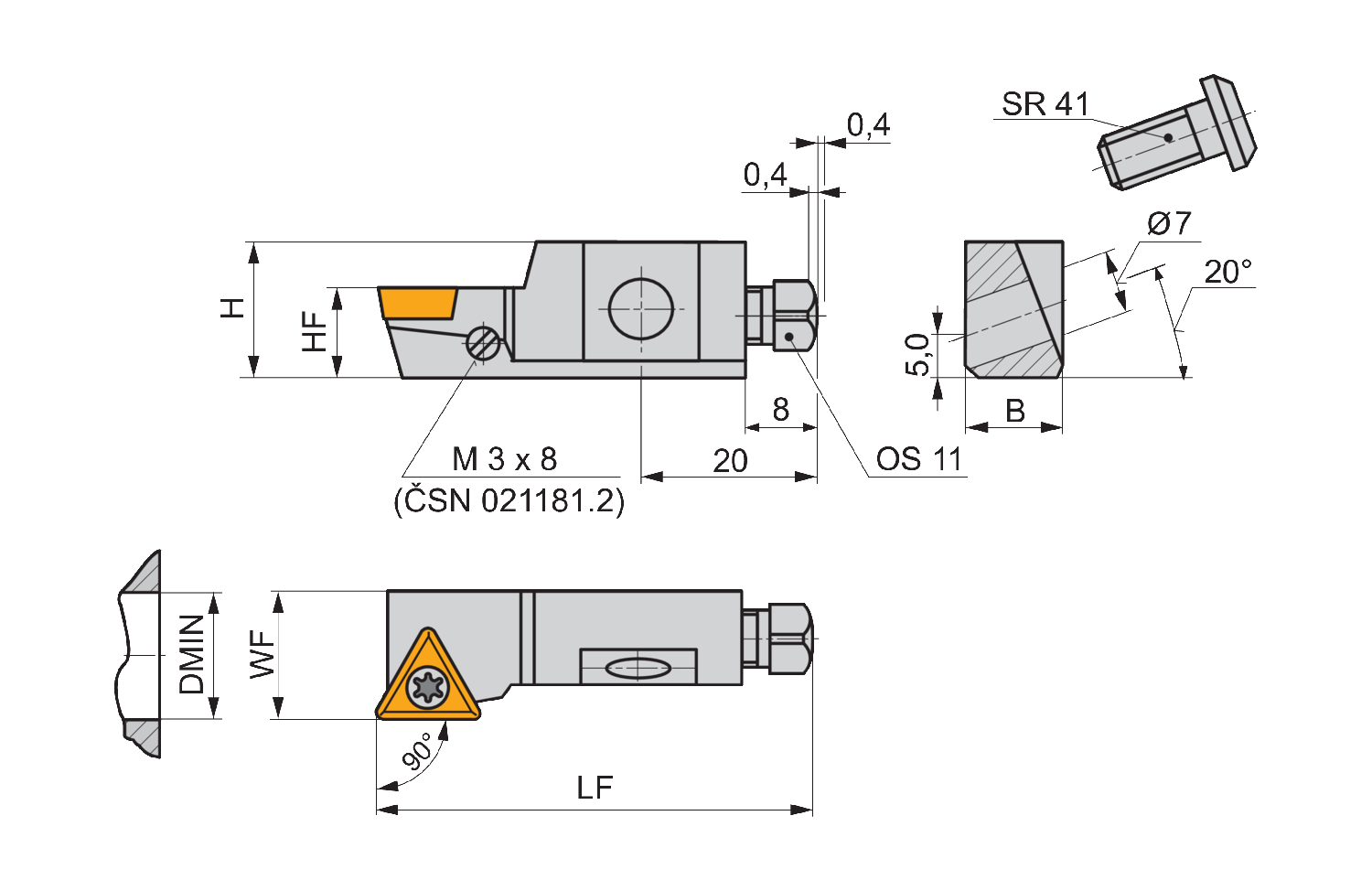

STGCL 10 CA-11 — Line Drawing PDF Download
