E299M30X2.0

E299M30X2.0

SKU DOR6290605
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

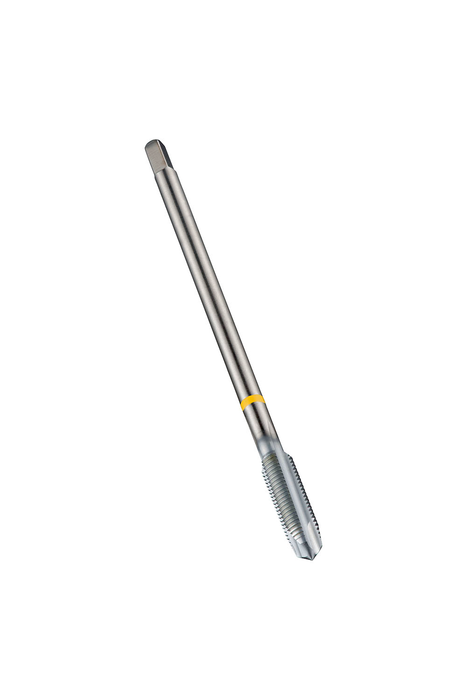

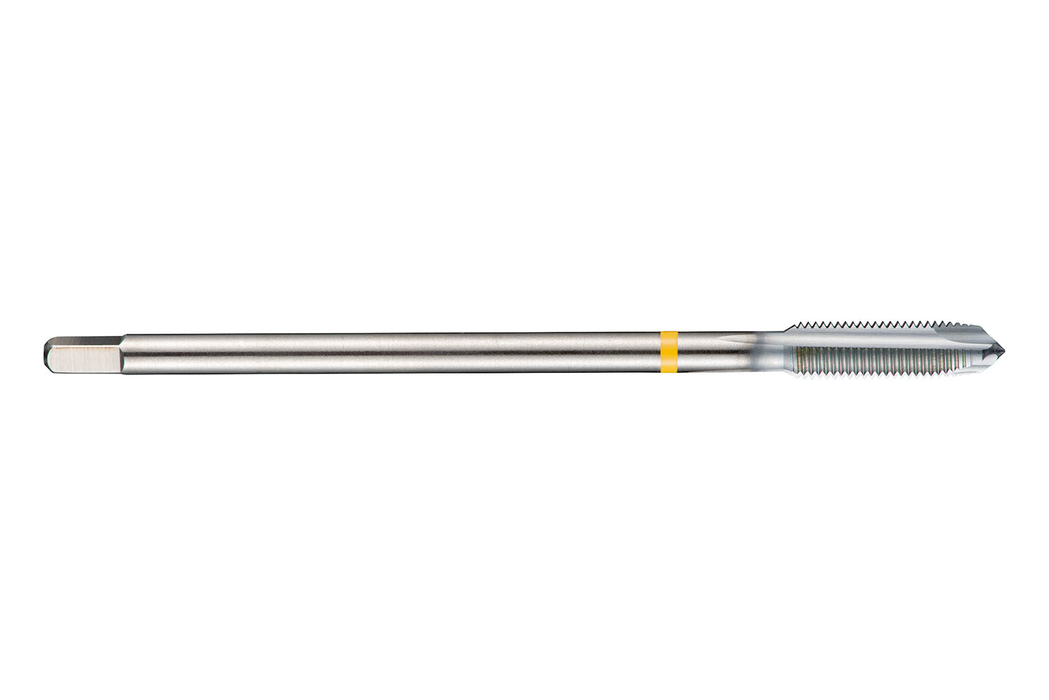

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$277.92 - $277.92
$277.92
$277.92 - $277.92
$277.92
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

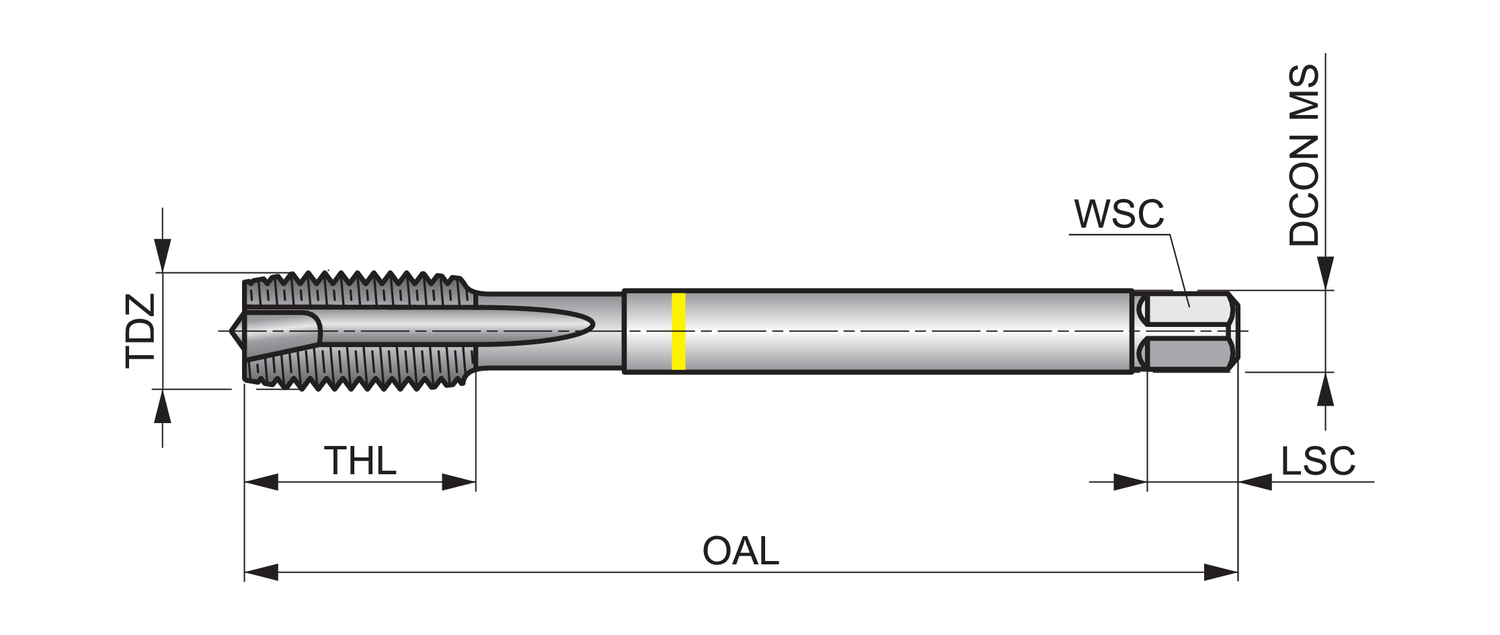

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.9055

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 30

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Flash Crome

EDP: 46290605

EAN: 7320760663257

MFG Part Number: 6290605
