SDGX 120508EN-FM:M8345

SDGX 120508EN-FM:M8345

SKU DOR6756068
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.86 - $27.86
$27.86
$27.86 - $27.86
$27.86

Sold in packs of: 10

Single-sided milling insert SDGX 1205, square for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with shoulder mills with extended flute J(T)-CSD12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDGX 120508EN-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number6756068
Product FamilySDGX 12

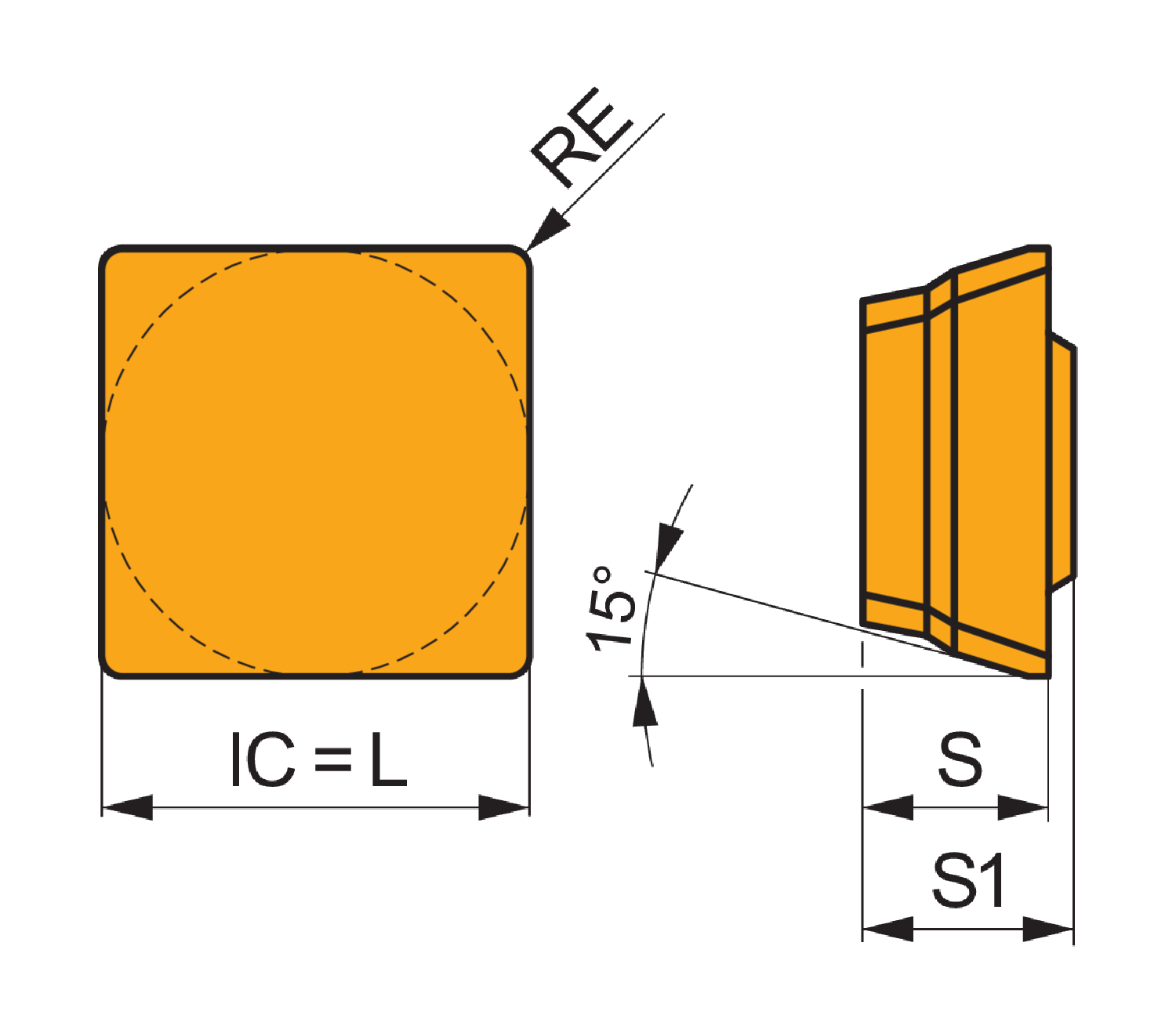

Insert Geometry
Insert DesignSDGX
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6756068
EAN3603602914347
File Type Download
SDGX 120508EN-FM:M8345 — Line Drawing PDF Download
