PDKX 0905ZEER-FM:M8345

PDKX 0905ZEER-FM:M8345

SKU DOR6756072
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.20 - $25.20
$25.20
$25.20 - $25.20
$25.20

Sold in packs of: 10

Single-sided milling insert PDKX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with high feed cutters SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDKX 0905ZEER-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number6756072
Product FamilyPDKX 09

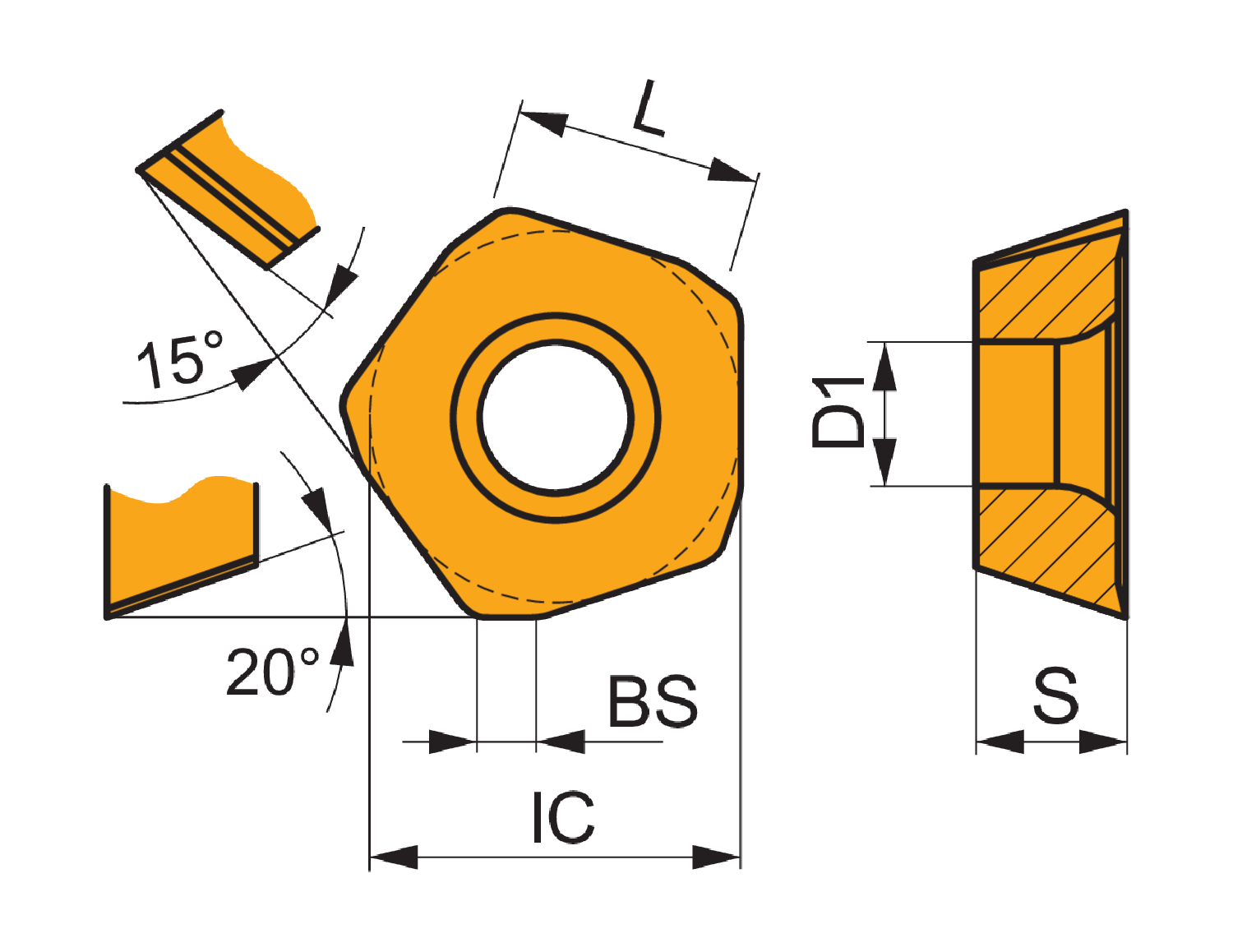

Insert Geometry
Insert DesignPDKX
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756072
EAN3603602914385
File Type Download
PDKX 0905ZEER-FM:M8345 — Line Drawing PDF Download
