PDMW 090530SR:M8345

PDMW 090530SR:M8345

SKU DOR6756074
by Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 - $22.76
$22.76
$22.76 - $22.76
$22.76

Sold in packs of: 10

Single-sided milling insert PDMW 0905 with a plane rake surface, pentagonal for a maximum depth of cut of .0787", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide for machining with high feed cutters SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDMW 090530SR:M8345
GradeM8345
Chipbreaker (CBMD)No chipbreaker
Product Number6756074
Product FamilyPDMW 09

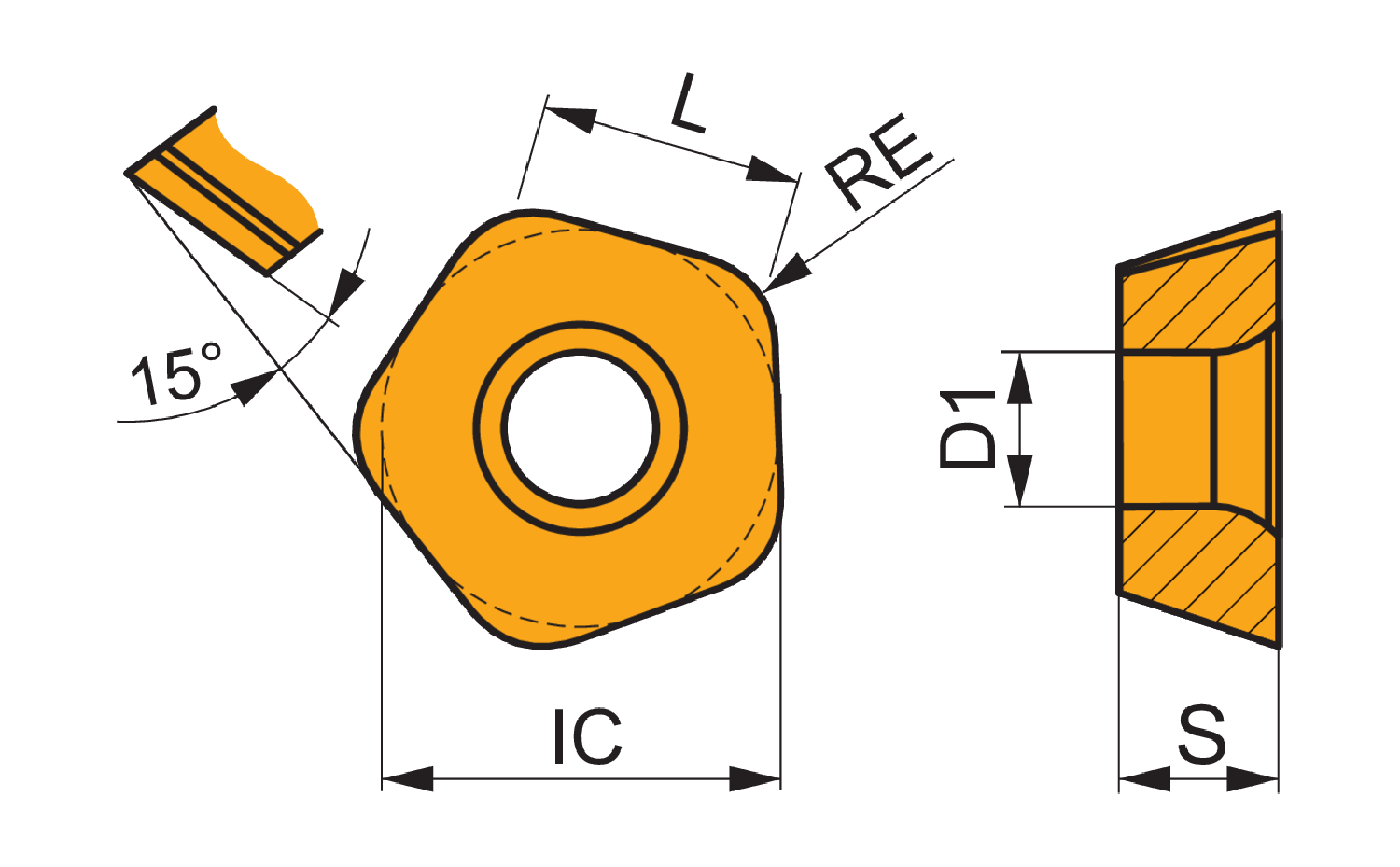

Insert Geometry
Insert DesignPDMW
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756074
EAN3603602914408
File Type Download
PDMW 090530SR:M8345 — Line Drawing PDF Download
