63J4R150H50-SSAP95-A

63J4R150H50-SSAP95-A

SKU DOR6757790
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,118.00 - $2,118.00
$2,118.00
$2,118.00 - $2,118.00
$2,118.00

Sold in packs of: 1

Shoulder mill with extended flute with positve/negative geometry which utilises 2 off APE. 1504.. and 20 SPE. 1204.. single-sided inserts, cutting diameter 63mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 95mm functional and 252mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J4R150H50-SSAP95-A
Product Number6757790
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

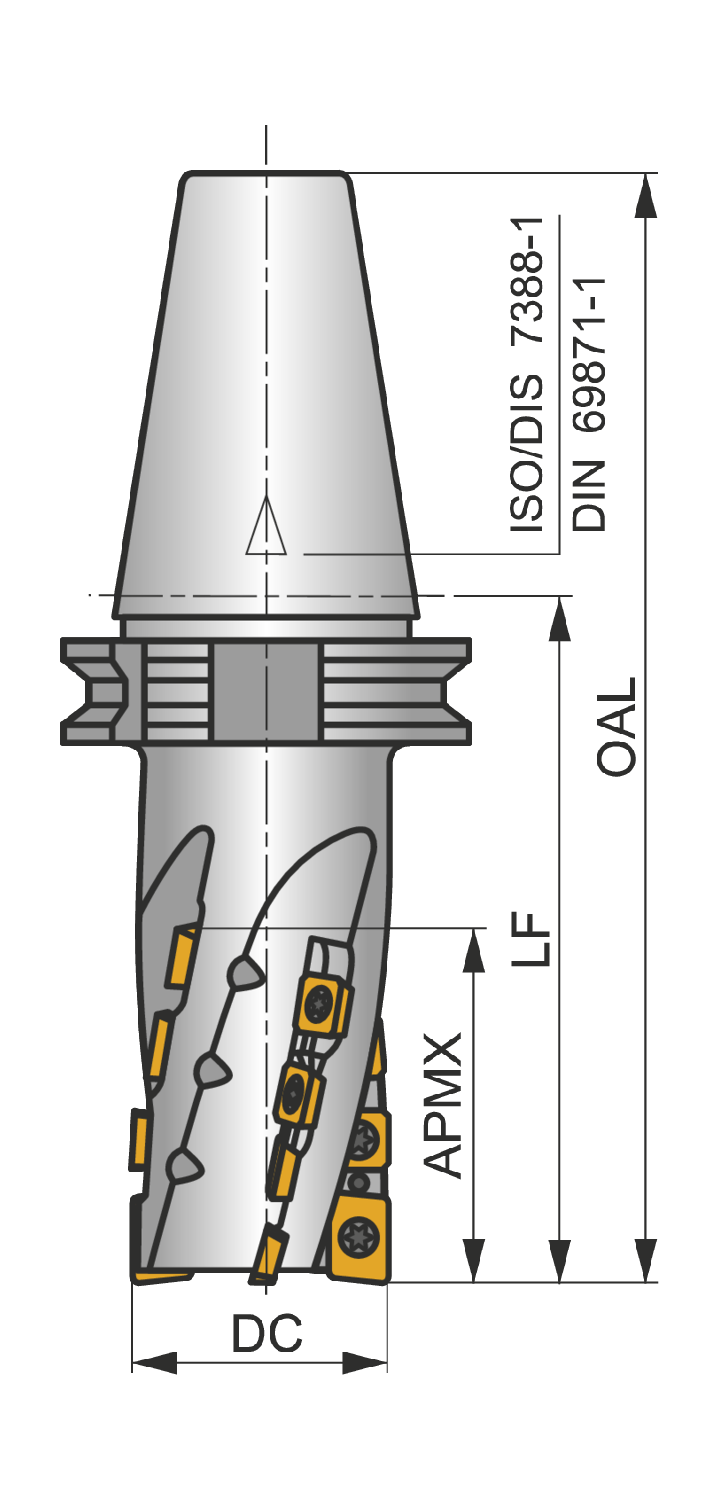

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)9.921"
Overall Length — mm (OAL)252.0 mm
Functional Length — mm (LF)150.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbor DIN 69871-1
Direction of ToolRight
Reference Numbers
EDP Number6757790
EAN3603602931467
File Type Download
63J4R150H50-SSAP95-A — 3D Model STP Download
63J4R150H50-SSAP95-A — Line Drawing PDF Download
