50T03R-S90AD11E37-C

50T03R-S90AD11E37-C

SKU DOR6759650
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,062.00 - $1,062.00
$1,062.00
$1,062.00 - $1,062.00
$1,062.00

Sold in packs of: 1

Shoulder mill with extended flute with positve/negative geometry which utilises 12 off ADMX 11T3.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030, 37mm functional and 58.0mm protrusion length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 37mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50T03R-S90AD11E37-C
Product Number6759650
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)37.0 mm

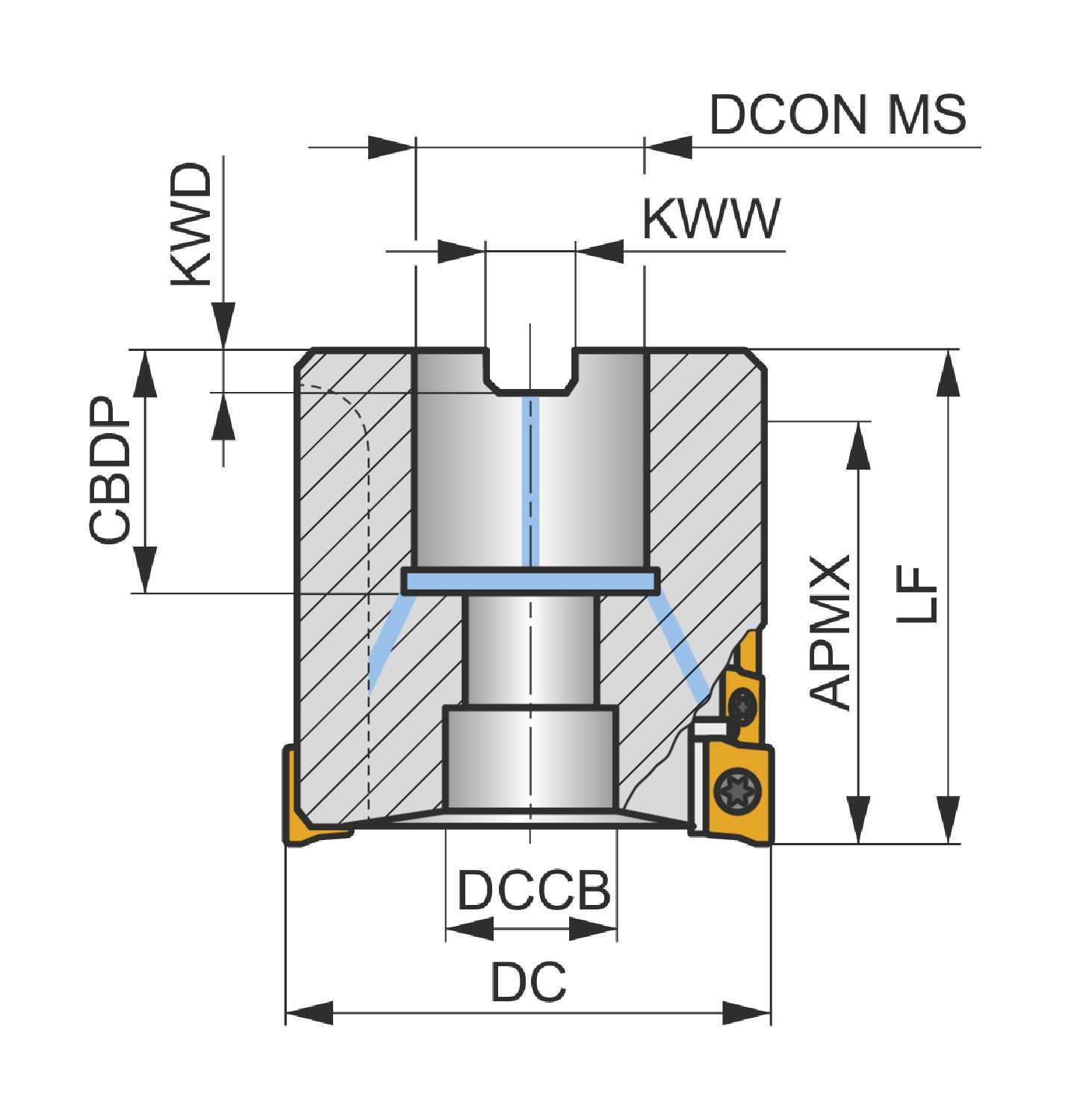

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)58.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankShell mill DIN 8030 – helical mill
Direction of ToolNeutral
Through Coolant Yes
Reference Numbers
EDP Number6759650
EAN3603602949967
File Type Download
50T03R-S90AD11E37-C — 3D Model STP Download
50T03R-S90AD11E37-C — 2D Model DXF Download
50T03R-S90AD11E37-C — Line Drawing PDF Download
