40J4R090H40-CSD12X44

Name: 40J4R090H40-CSD12X44
Brand: Dormer Pramet
SKU: DOR6761737
Price: 2377.0 CAD
Availability: InStock

SKU DOR6761737

by Dormer Pramet

Primary Use:

Availability in Distribution Centers:

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$2,377.00 - $2,377.00

$2,377.00

$2,377.00 - $2,377.00

$2,377.00

Sold in packs of: 1

Shoulder mill with extended flute with positve/negative geometry which utilises 16 off SDGX 1205.. or SDMX 1205.. single-sided inserts, cutting diameter 40mm with 90° approach angle and SK 40 taper shank according to ISO/DIS 7388-1, 70mm functional and 158.4mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 44,1mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	40J4R090H40-CSD12X44
Product Number	6761737
Product Family	J(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)	44.1 mm

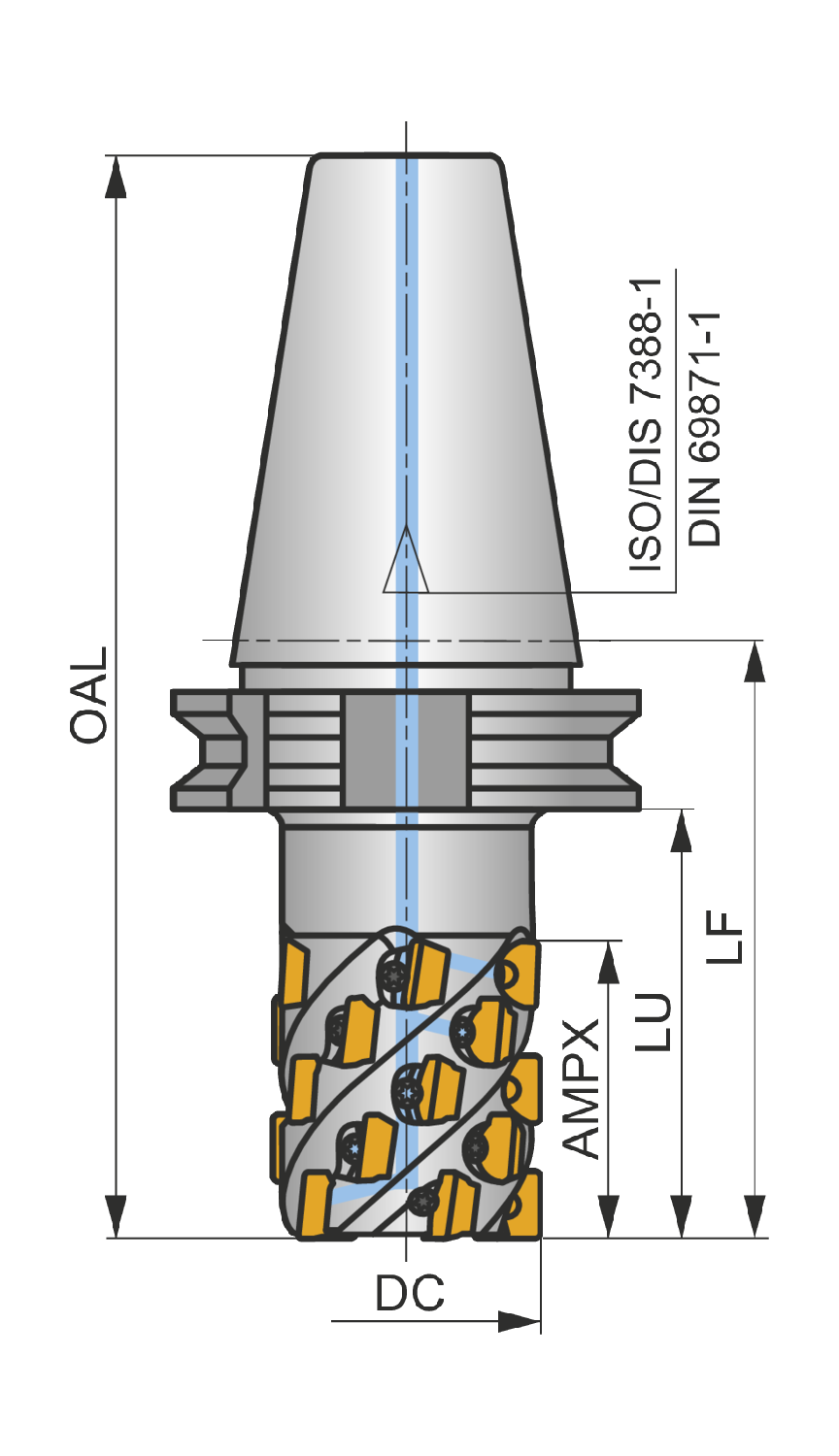

Dimensions
Cutting Diameter — in (DC)	1.575"
Cutting Diameter — mm (DC)	40.0 mm
Overall Length — in (OAL)	6.236"
Overall Length — mm (OAL)	158.4 mm
Usable Length — mm (LU)	70.0 mm
Functional Length — mm (LF)	90.0 mm
Number of Flutes (NOF)	4
Tool Information
Tool Design	J(T)-CSD12X
Shank	Arbor DIN 69871-1
Direction of Tool	Right
Through Coolant	Yes
Reference Numbers
EDP Number	6761737
EAN	3603602970831

File	Type	Download
40J4R090H40-CSD12X44 — 3D Model	STP	Download
40J4R090H40-CSD12X44 — 2D Model	DXF	Download
40J4R090H40-CSD12X44 — Line Drawing	PDF	Download
