80T08R-C90SD12X88

80T08R-C90SD12X88

SKU DOR6761746
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4,537.00 - $4,537.00
$4,537.00
$4,537.00 - $4,537.00
$4,537.00

Sold in packs of: 1

Shoulder mill with extended flute with positve/negative geometry which utilises 64 off SDGX 12 or SDMX 12 single-sided inserts, cutting diameter 80mm with 90° approach angle and 40mm connection bore according to DIN 8030, 115mm protrusion length for deep shoulder milling and deep slot milling with a maximum depth of cut of 87,3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80T08R-C90SD12X88
Product Number6761746
Product FamilyJ(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)87.3 mm

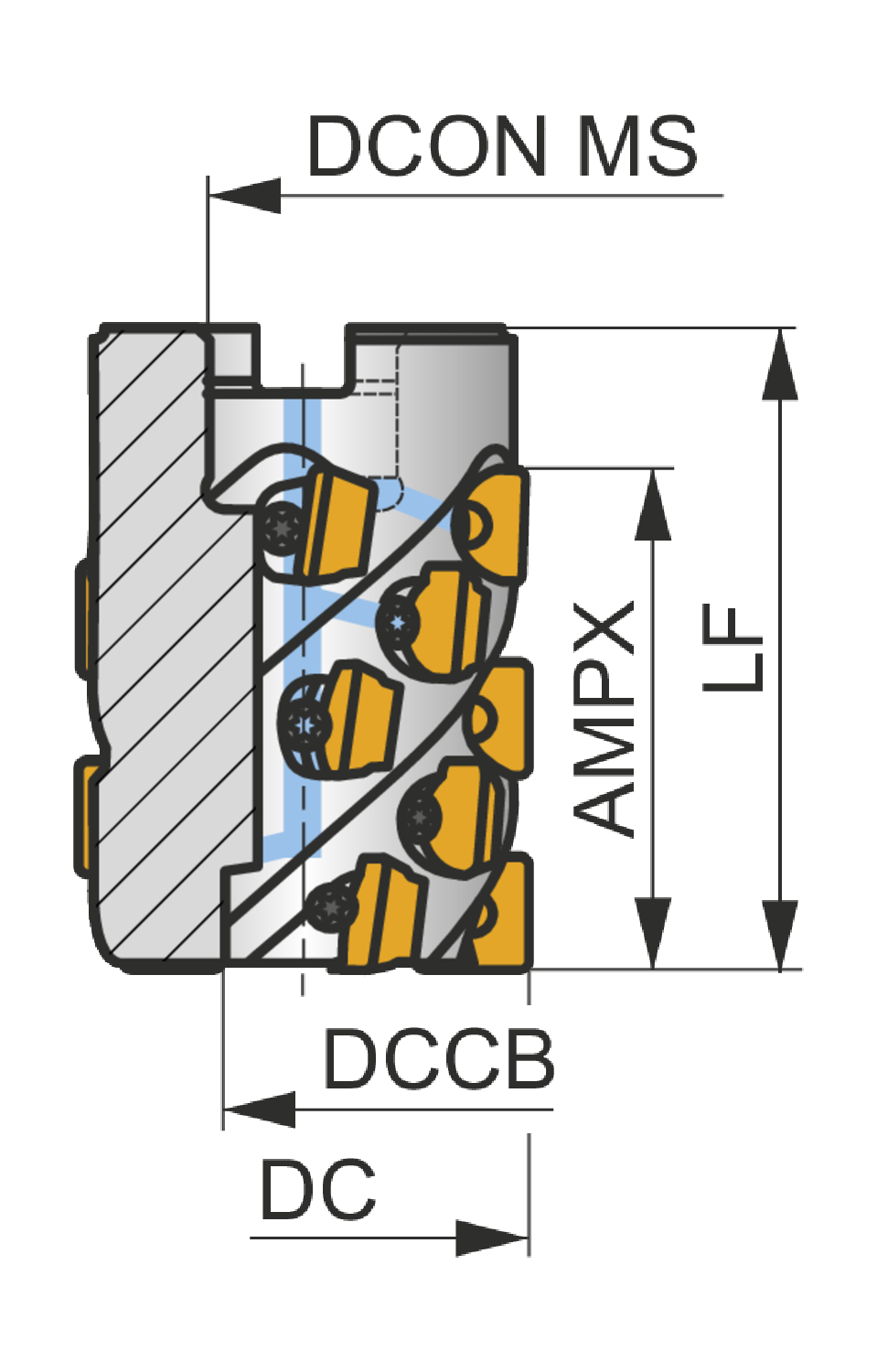

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)115.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignJ(T)-CSD12X
ShankShell mill DIN 8030 – helical mill
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6761746
EAN3603602970923
File Type Download
80T08R-C90SD12X88 — 3D Model STP Download
80T08R-C90SD12X88 — 2D Model DXF Download
80T08R-C90SD12X88 — Line Drawing PDF Download
