500H06N-IS90SN12N5

500H06N-IS90SN12N5

SKU DOR6789680
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,737.00 - $1,737.00
$1,737.00
$1,737.00 - $1,737.00
$1,737.00

Sold in packs of: 1

Disc mill with double positive geometry which utilises 12 off SNHQ 1102.. double-sided inserts, cutting diameter 5.000'' with 90° approach angle and 1.250'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .313''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500H06N-IS90SN12N5
Product Number6789680
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)1.22"

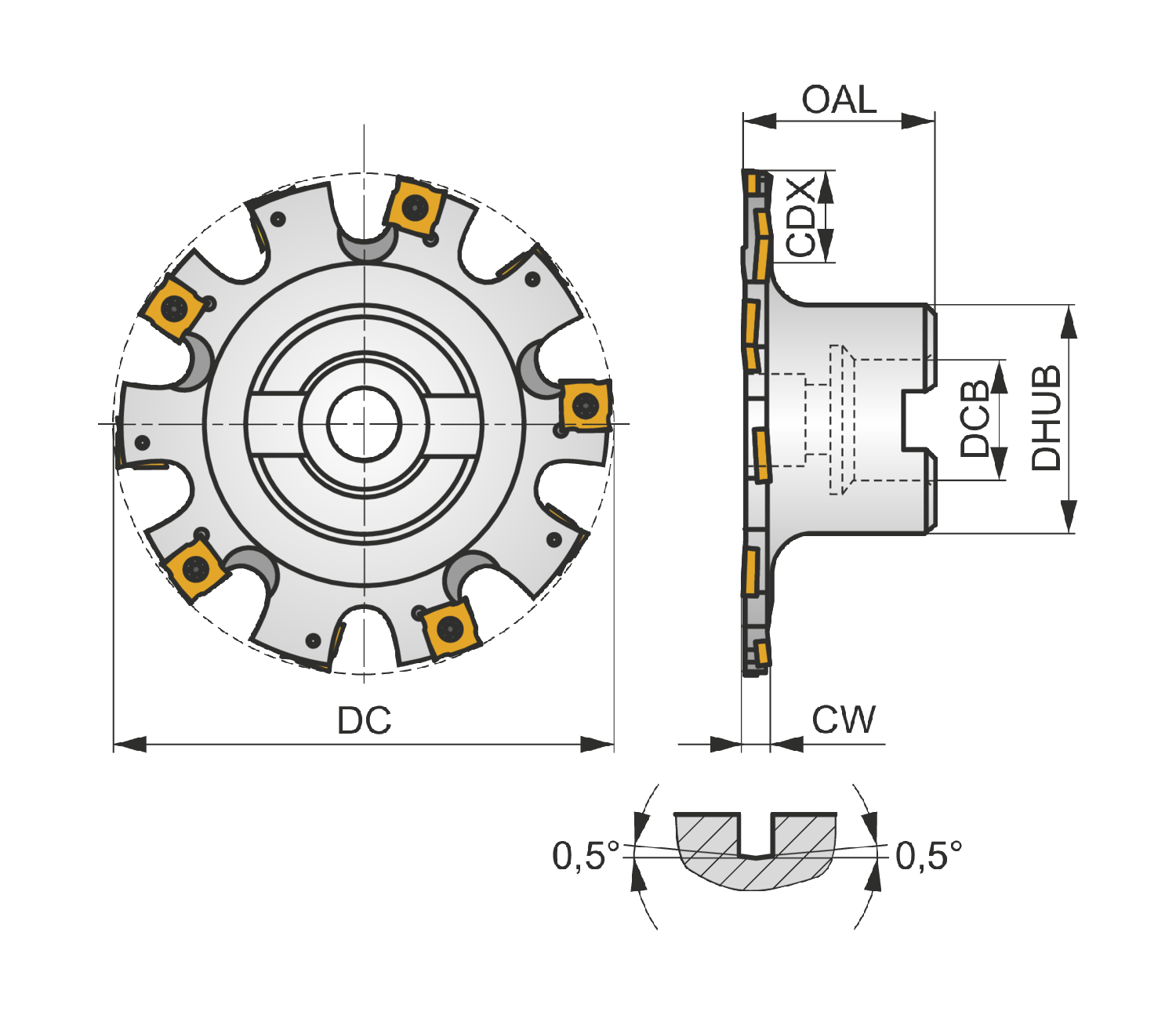

Dimensions
Cutting Diameter — in (DC)5.0"
Cutting Diameter — mm (DC)127.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignS90SN
ShankShell mill DIN 8030 – disc mill
Direction of ToolNeutral
Reference Numbers
EDP Number6789680
EAN3603602979292
File Type Download
500H06N-IS90SN12N5 — 3D Model STP Download
500H06N-IS90SN12N5 — 2D Model DXF Download
500H06N-IS90SN12N5 — Line Drawing PDF Download
