125A4R150W125-ISSO09-C

125A4R150W125-ISSO09-C

SKU DOR6789776
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$718.00 - $718.00
$718.00
$718.00 - $718.00
$718.00

Sold in packs of: 1

Shoulder mill with positve/negative geometry which utilises 4 off SOMT 09T3.. single-sided inserts, cutting diameter 1.250'' with 90° approach angle and 1.250'' Weldon shank according to DIN 1835B, 4.000'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A4R150W125-ISSO09-C
Product Number6789776
Product FamilyISSO09

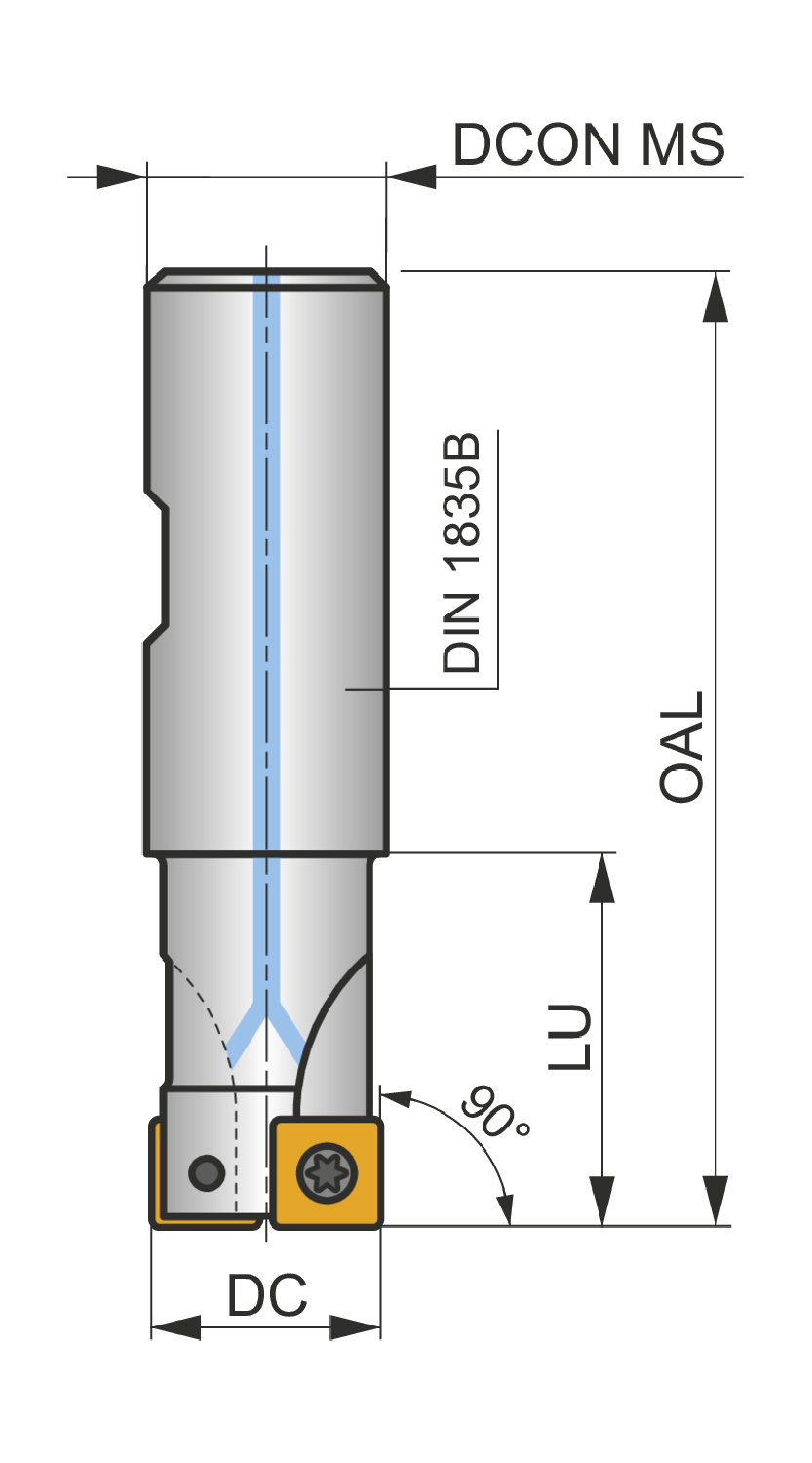

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)102.0 mm
Usable Length — in (LU)1.5"
Usable Length — mm (LU)38.1 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSO09
ShankWeldon shank DIN 1835B
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6789776
EAN3603602979988
File Type Download
125A4R150W125-ISSO09-C — 3D Model STP Download
125A4R150W125-ISSO09-C — 2D Model DXF Download
125A4R150W125-ISSO09-C — Line Drawing PDF Download
