200A06R-IS90SO09-C

200A06R-IS90SO09-C

SKU DOR6789778
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$738.00 - $738.00
$738.00
$738.00 - $738.00
$738.00

Sold in packs of: 1

Shoulder mill with positve/negative geometry which utilises 6 off SOMT 09T3.. single-sided inserts, cutting diameter 2.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A06R-IS90SO09-C
Product Number6789778
Product FamilyISSO09

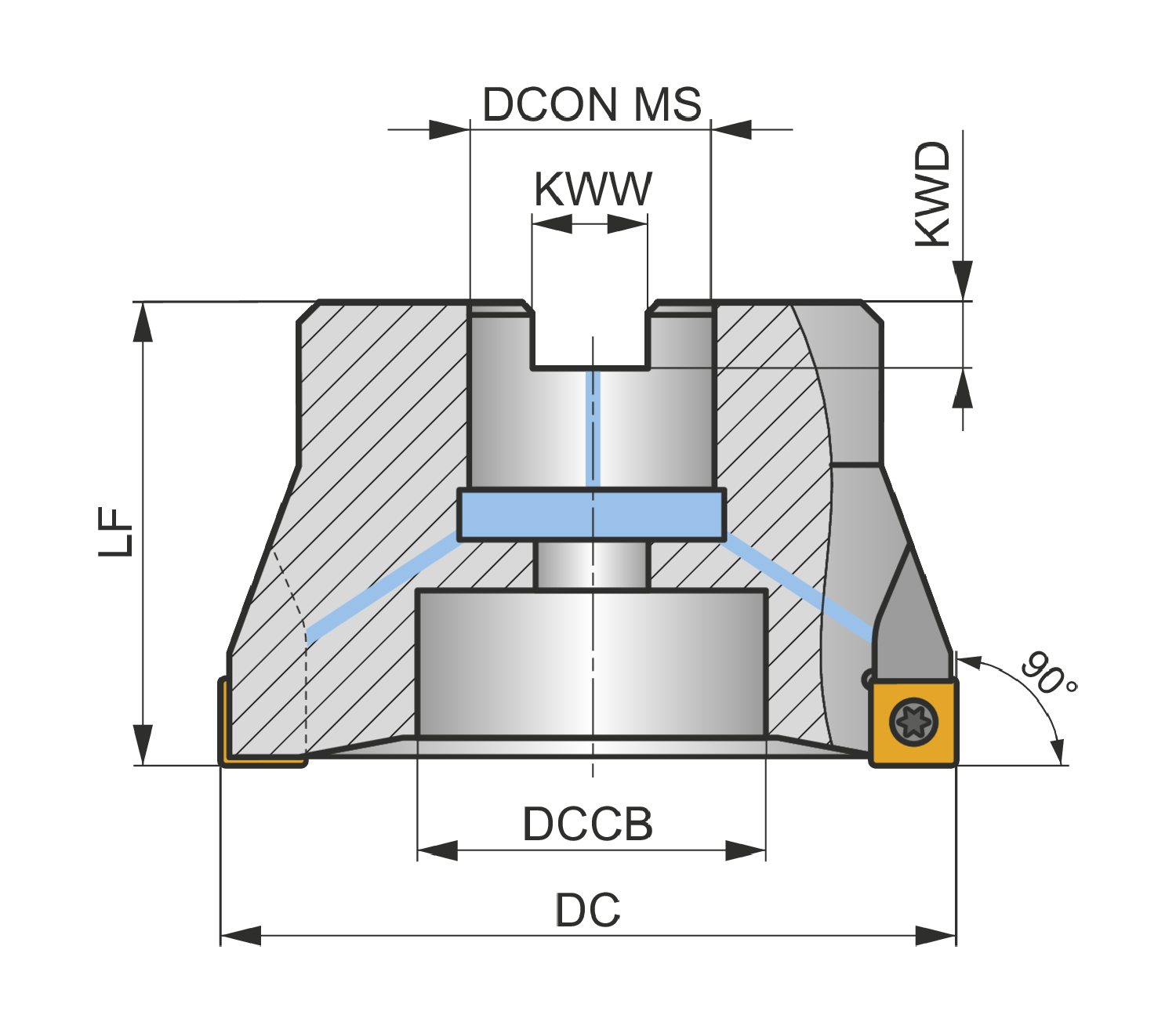

Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)50.8 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSO09
ShankShell mill DIN 8030 A
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6789778
EAN3603602980007
File Type Download
200A06R-IS90SO09-C — 3D Model STP Download
200A06R-IS90SO09-C — 2D Model DXF Download
200A06R-IS90SO09-C — Line Drawing PDF Download
