800C10R-IS45HN09CF

800C10R-IS45HN09CF

SKU DOR6790772
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,607.00 - $2,607.00
$2,607.00
$2,607.00 - $2,607.00
$2,607.00

Sold in packs of: 1

Face mill with double negative geometry which utilises 10 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 8.000 to maximum 8.461'' with 45° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)800C10R-IS45HN09CF
Product Number6790772
Product FamilyISHN09C

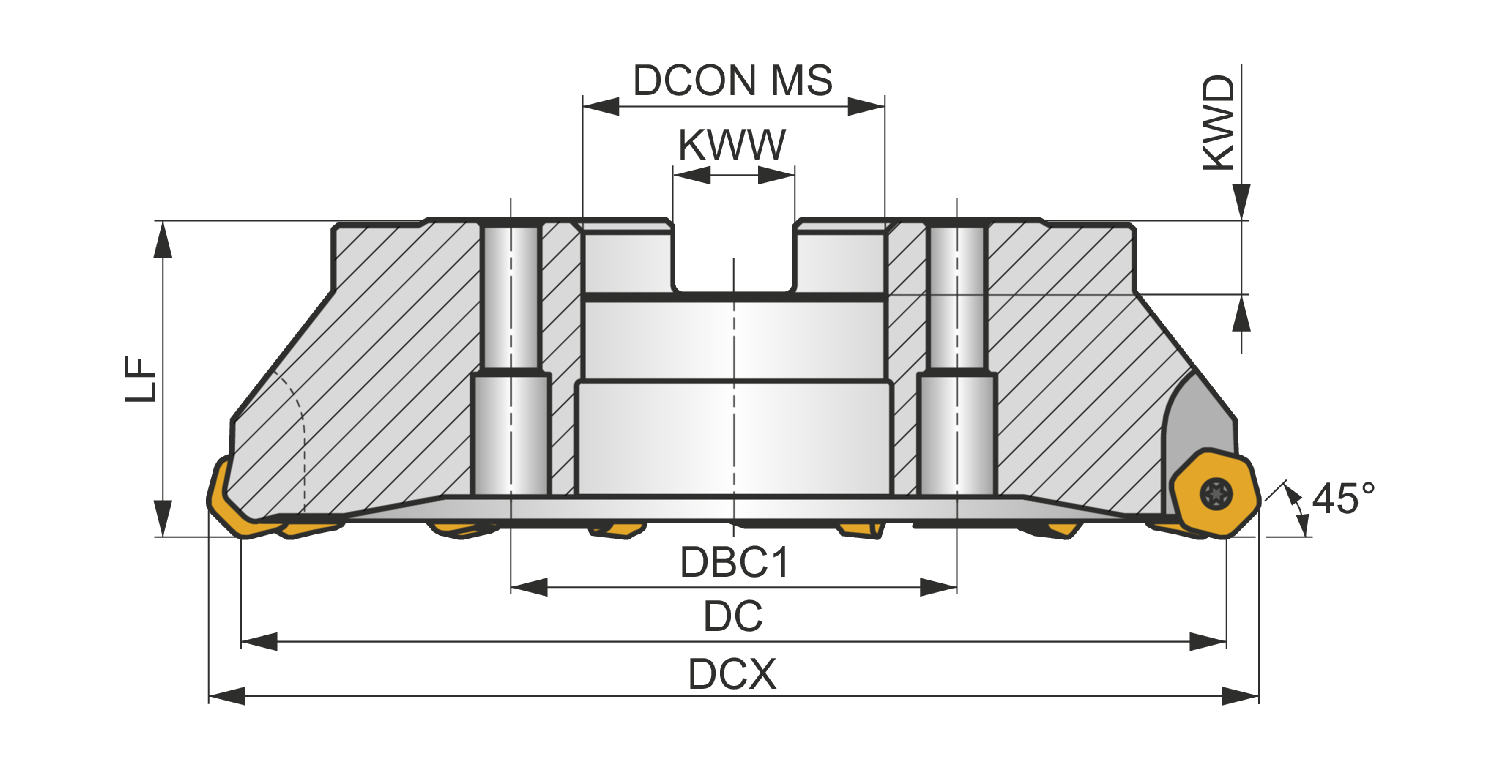

Dimensions
Cutting Diameter — in (DC)8.0"
Cutting Diameter — mm (DC)203.2 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)63.5 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSHN09C
ShankShell mill DIN 8030 C
Direction of ToolRight
Through Coolant No
Reference Numbers
EDP Number6790772
EAN3603602987112
File Type Download
800C10R-IS45HN09CF — 3D Model STP Download
800C10R-IS45HN09CF — 2D Model DXF Download
800C10R-IS45HN09CF — Line Drawing PDF Download
