250A05R-IS19PD09-C

250A05R-IS19PD09-C

SKU DOR6792980
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 - $895.00
$895.00
$895.00 - $895.00
$895.00

Sold in packs of: 1

High feed cutter with positve/negative geometry which utilises 5 off PD.X 09, PDKT 09 or PDMW 09 single-sided inserts, cutting diameter 2.500'' with 19° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling with a maximum depth of cut of .079''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A05R-IS19PD09-C
Product Number6792980
Product FamilyISPD09

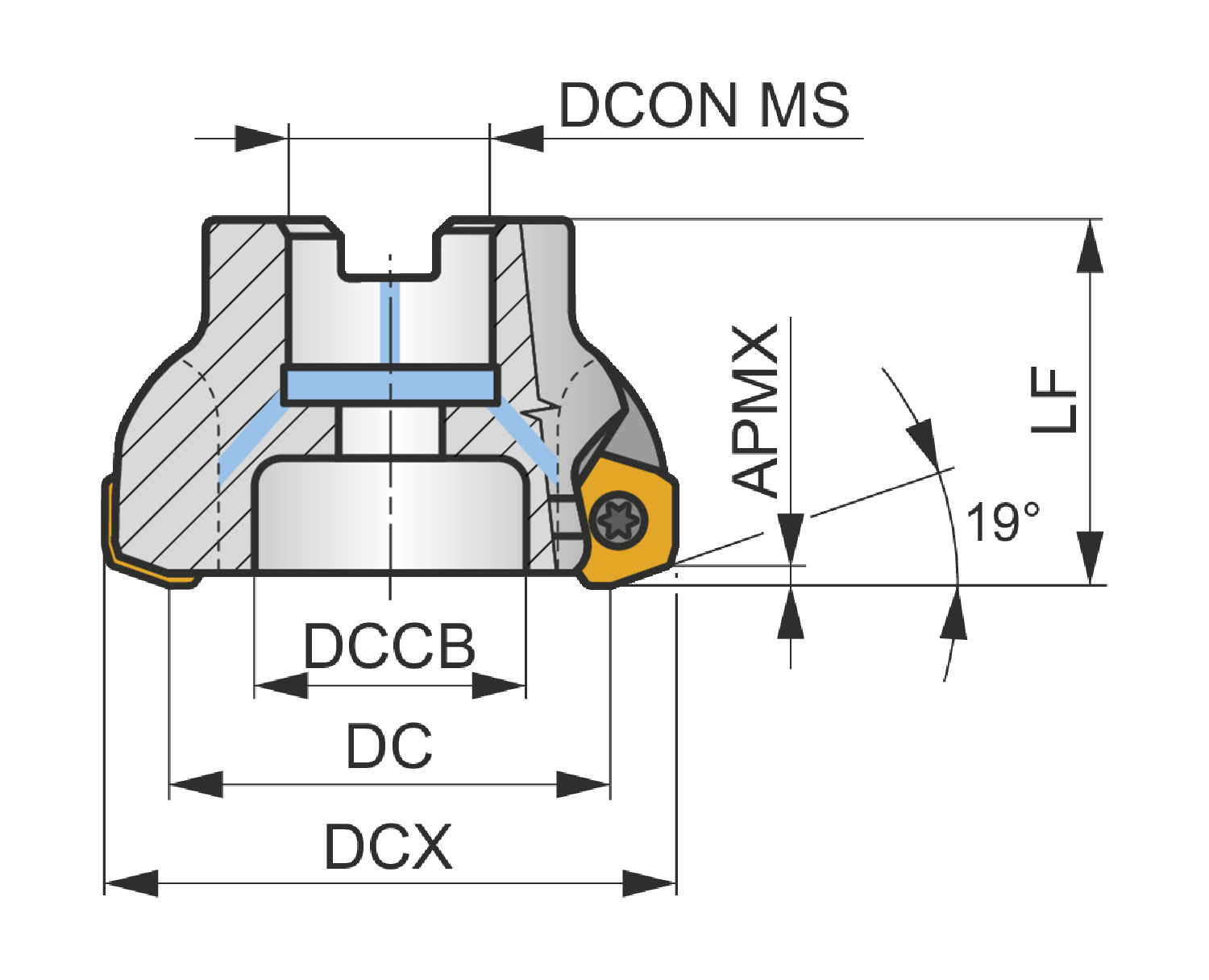

Dimensions
Cutting Diameter — in (DC)1.931"
Cutting Diameter — mm (DC)49.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPD09
ShankShell mill DIN 8030 A
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6792980
EAN3603602988089
File Type Download
250A05R-IS19PD09-C — 3D Model STP Download
250A05R-IS19PD09-C — 2D Model DXF Download
250A05R-IS19PD09-C — Line Drawing PDF Download
