600B08R-IS57PN13

600B08R-IS57PN13

SKU DOR6792990
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,082.00 - $2,082.00
$2,082.00
$2,082.00 - $2,082.00
$2,082.00

Sold in packs of: 1

Face mill with double negative geometry which utilises 8 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 6.000 to maximum 6.628'' with 57° approach angle and 2.000'' connection bore according to DIN 8030-B, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)600B08R-IS57PN13
Product Number6792990
Product FamilyISPN13

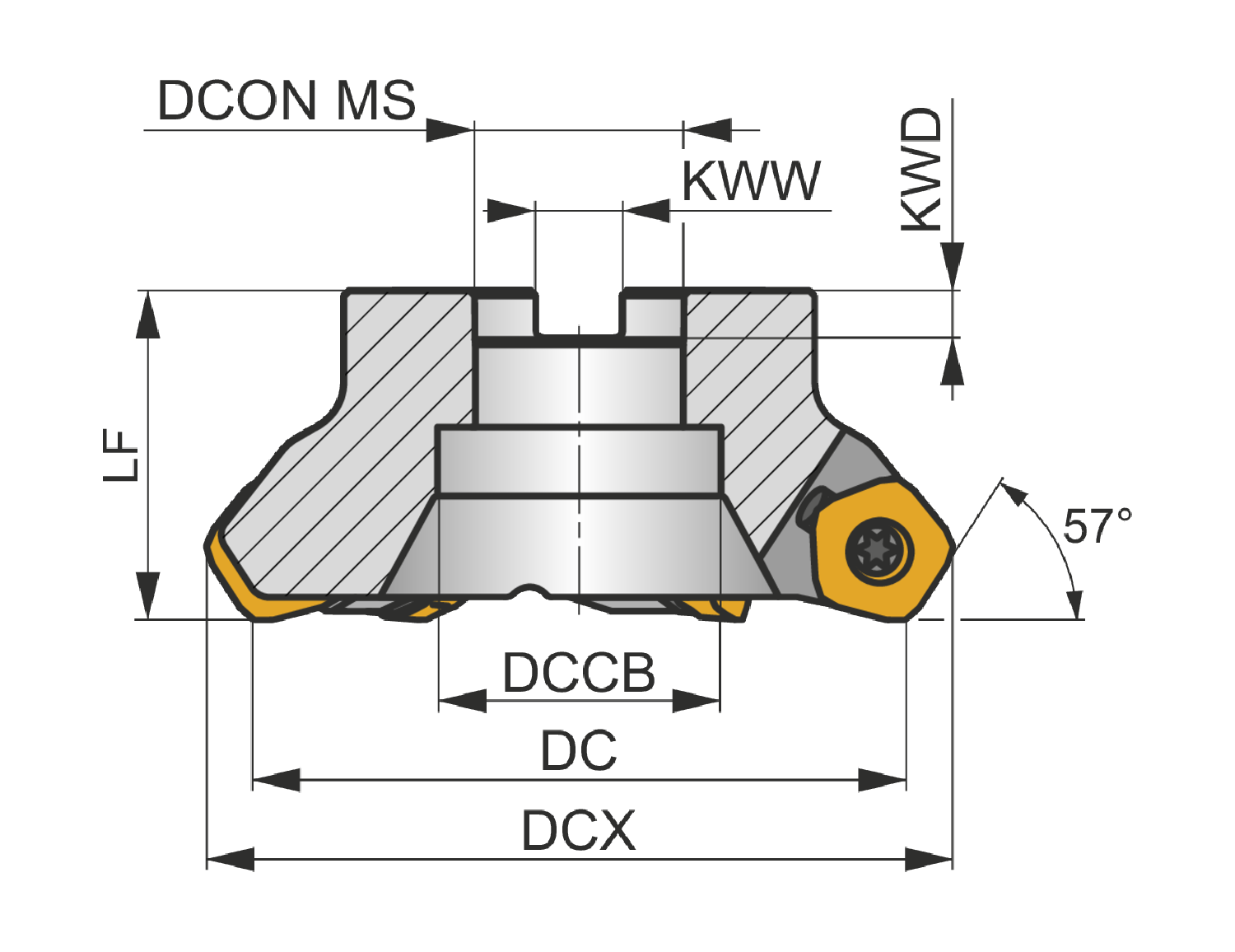

Dimensions
Cutting Diameter — in (DC)6.0"
Cutting Diameter — mm (DC)152.4 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.0"
Connection Dia. — mm (DCON)50.8 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSPN13
ShankShell mill DIN 8030 B
Direction of ToolRight
Reference Numbers
EDP Number6792990
EAN3603602988164
File Type Download
600B08R-IS57PN13 — 3D Model STP Download
600B08R-IS57PN13 — 2D Model DXF Download
600B08R-IS57PN13 — Line Drawing PDF Download
