1200C14R-IS57PN13

1200C14R-IS57PN13

SKU DOR6792992
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5,153.00 - $5,153.00
$5,153.00
$5,153.00 - $5,153.00
$5,153.00

Sold in packs of: 1

Face mill with double negative geometry which utilises 14 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 12.000 to maximum 12.627'' with 57° approach angle and 2.500'' connection bore according to DIN 8030-C, 3.150'' protrusion length for face milling with a maximum depth of cut of .394''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)1200C14R-IS57PN13
Product Number6792992
Product FamilyISPN13

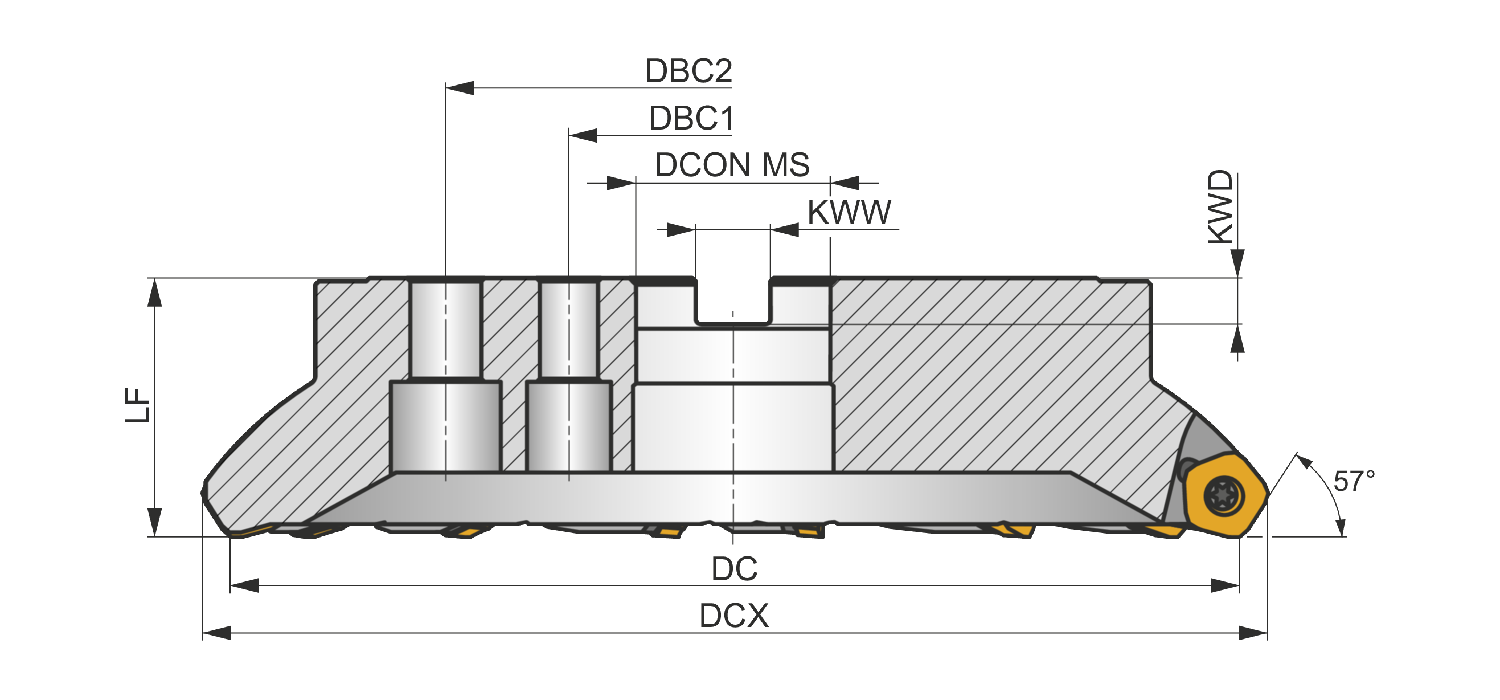

Dimensions
Cutting Diameter — in (DC)12.0"
Cutting Diameter — mm (DC)304.8 mm
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.01 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)63.5 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignSPN13
ShankShell mill DIN 8030 C
Direction of ToolRight
Reference Numbers
EDP Number6792992
EAN3603602988188
File Type Download
1200C14R-IS57PN13 — 3D Model STP Download
1200C14R-IS57PN13 — 2D Model DXF Download
1200C14R-IS57PN13 — Line Drawing PDF Download
