100A2R138M12-ISLN12-C

100A2R138M12-ISLN12-C

SKU DOR6792997
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$475.00 - $475.00
$475.00
$475.00 - $475.00
$475.00

Sold in packs of: 1

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 1.000'' with 90° approach angle and M12 threaded shank for standard modular tool-holders, 1.378'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A2R138M12-ISLN12-C
Product Number6792997
Product FamilyISLN12

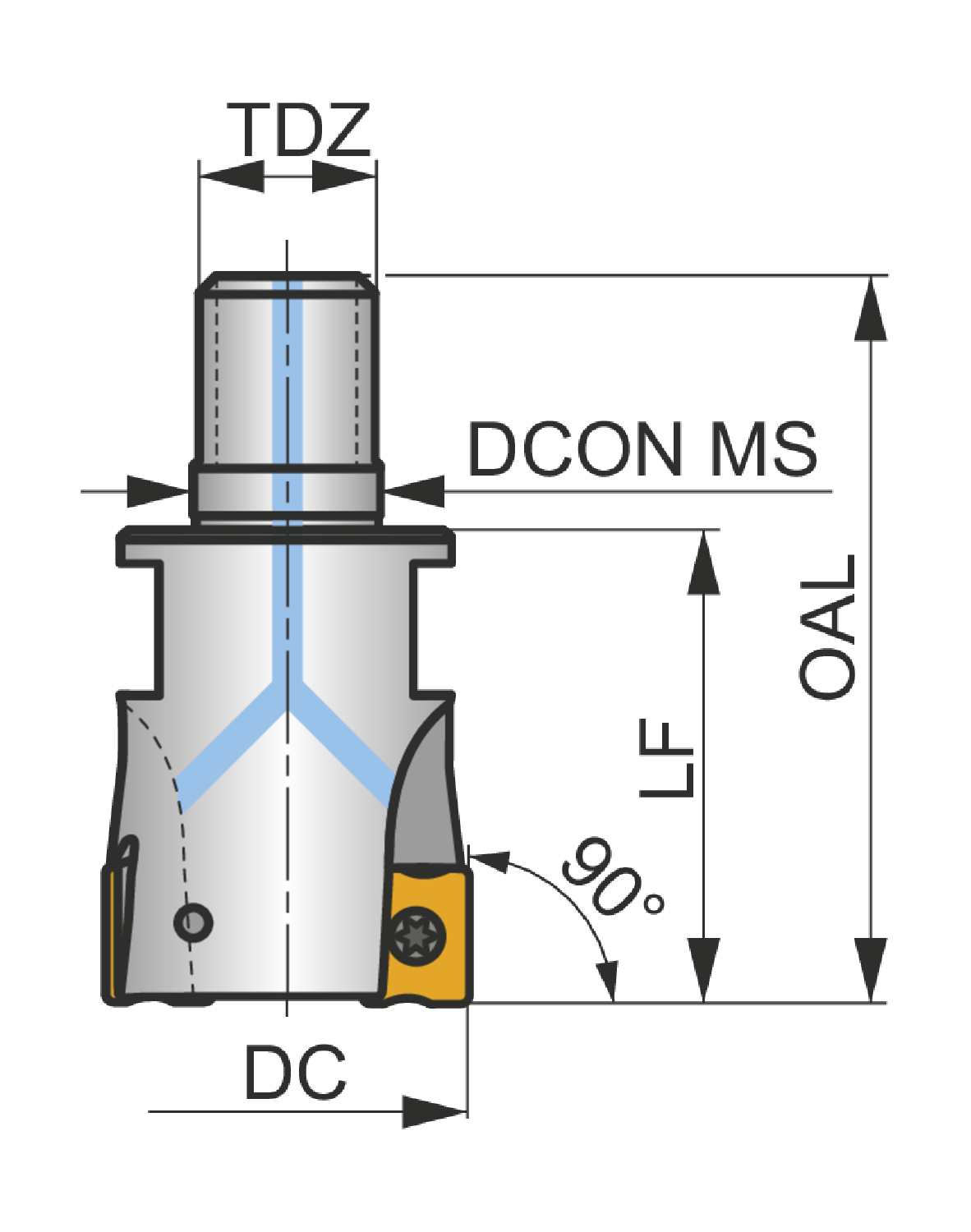

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)2.244"
Overall Length — mm (OAL)57.0 mm
Functional Length — in (LF)1.378"
Functional Length — mm (LF)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)–
Tool Information
Tool DesignSLN12
ShankThreaded coupling
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6792997
EAN3603602988225
File Type Download
100A2R138M12-ISLN12-C — 3D Model STP Download
100A2R138M12-ISLN12-C — 2D Model DXF Download
100A2R138M12-ISLN12-C — Line Drawing PDF Download
