RDET 1003MOSN:M8340

RDET 1003MOSN:M8340

SKU DOR6800840
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.14 - $17.14
$17.14
$17.14 - $17.14
$17.14

Sold in packs of: 10

Single-sided milling insert RDET 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDET 1003MOSN:M8340
GradeM8340
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number6800840
Product FamilyRDET

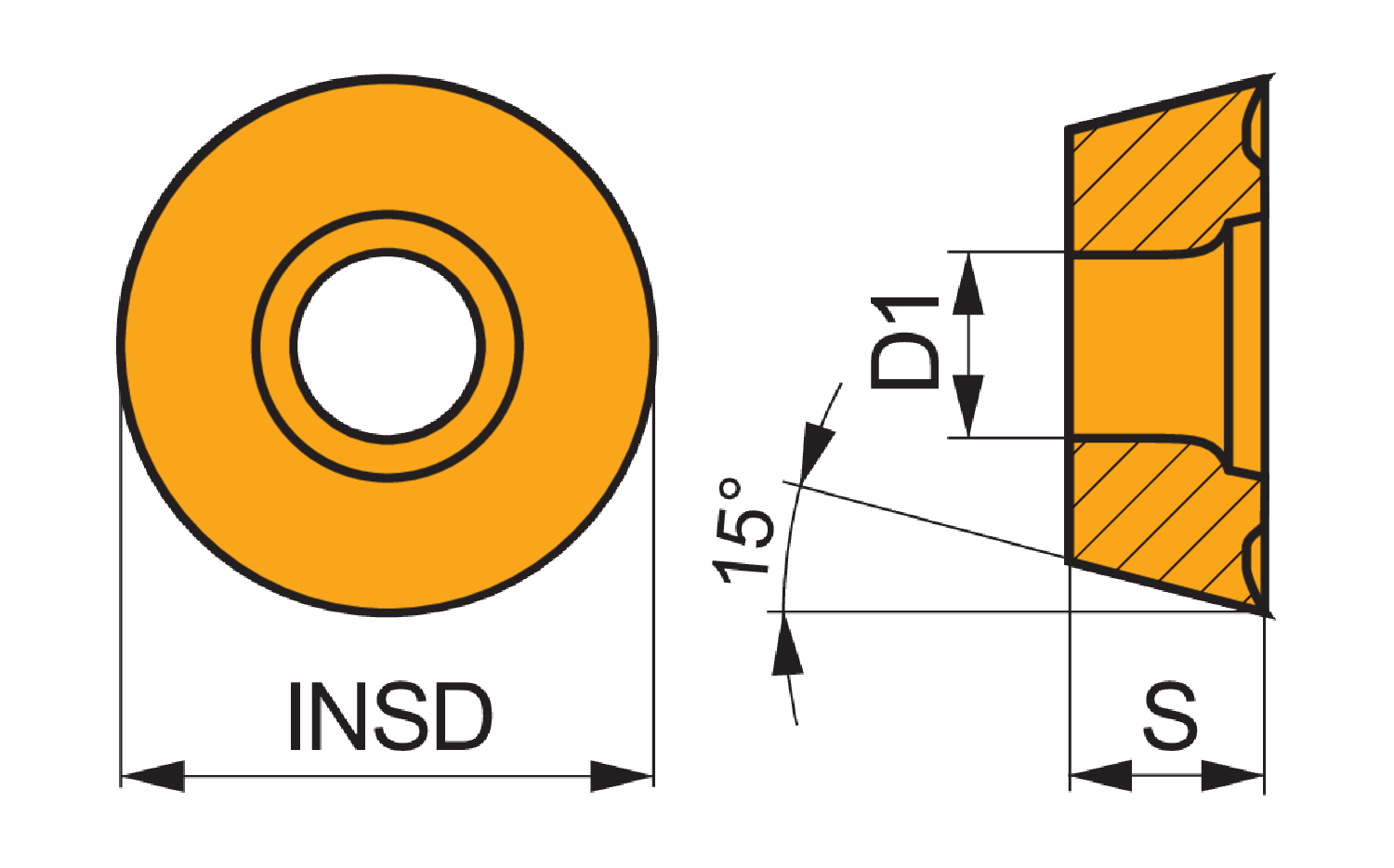

Insert Geometry
Insert DesignRDET
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6800840
EAN3603602993717
File Type Download
RDET 1003MOSN:M8340 — Line Drawing PDF Download
