RPEX 1204MOSN-12:M8340

RPEX 1204MOSN-12:M8340

SKU DOR6800847
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.14 - $20.14
$20.14
$20.14 - $20.14
$20.14

Sold in packs of: 10

Single-sided milling insert RPEX 1204, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-E and 12 geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPEX 1204MOSN-12:M8340
GradeM8340
Chipbreaker (CBMD)12
Product Number6800847
Product FamilyRPEX
Insert Geometry
Insert DesignRPEX
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6800847
EAN3603602993786
File Type Download

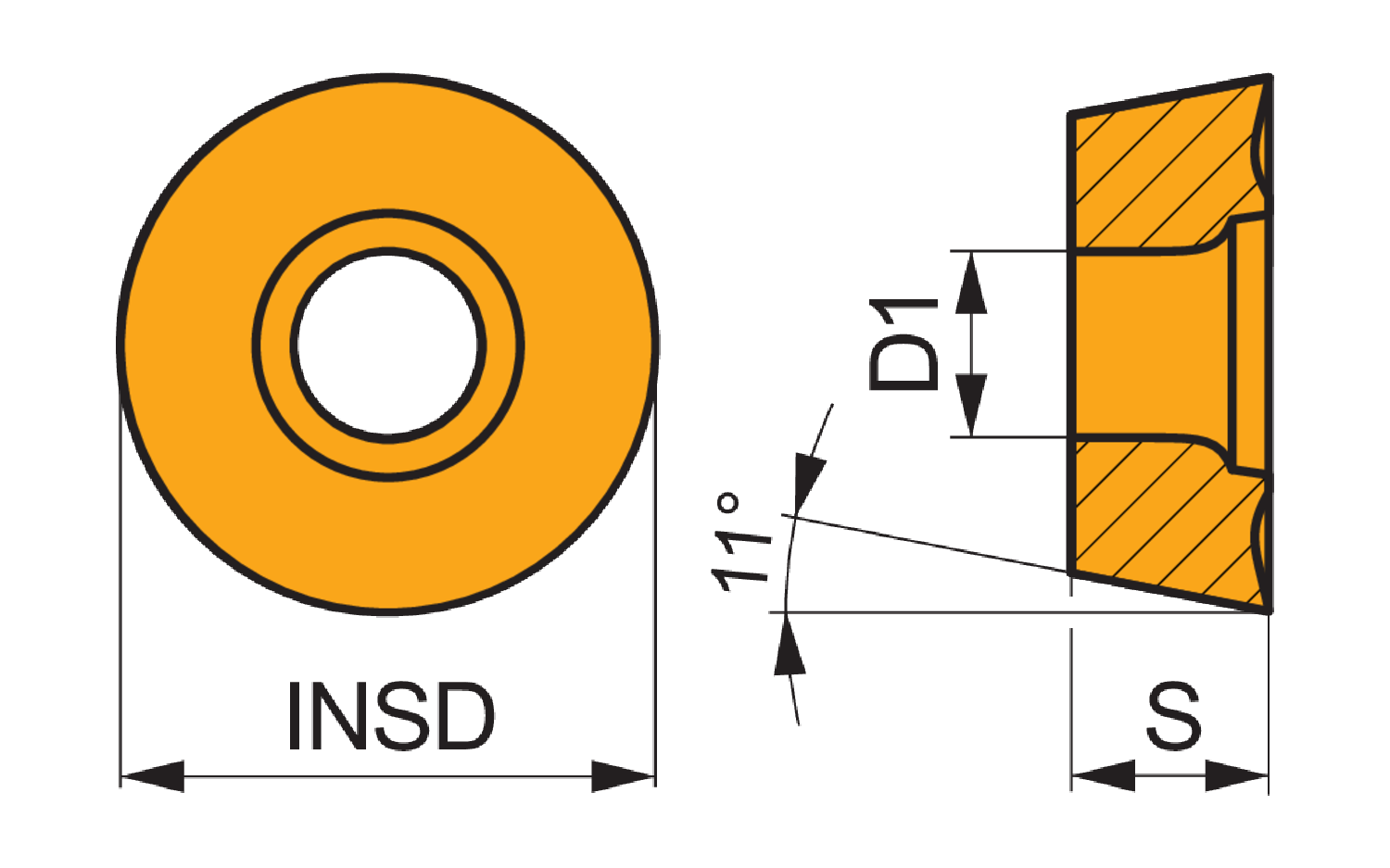

RPEX 1204MOSN-12:M8340 — Line Drawing PDF Download
