RDMX 12T3MOT:M8310

RDMX 12T3MOT:M8310

SKU DOR6801017
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.26 - $18.26
$18.26
$18.26 - $18.26
$18.26

Sold in packs of: 10

Single-sided milling insert RDMX 12T3, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDMX 12T3MOT:M8310
GradeM8310
Chipbreaker (CBMD)No chipbreaker
Product Number6801017
Product FamilyRDMX 12
Insert Geometry
Insert DesignRDMX
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6801017
EAN3603602995285
File Type Download

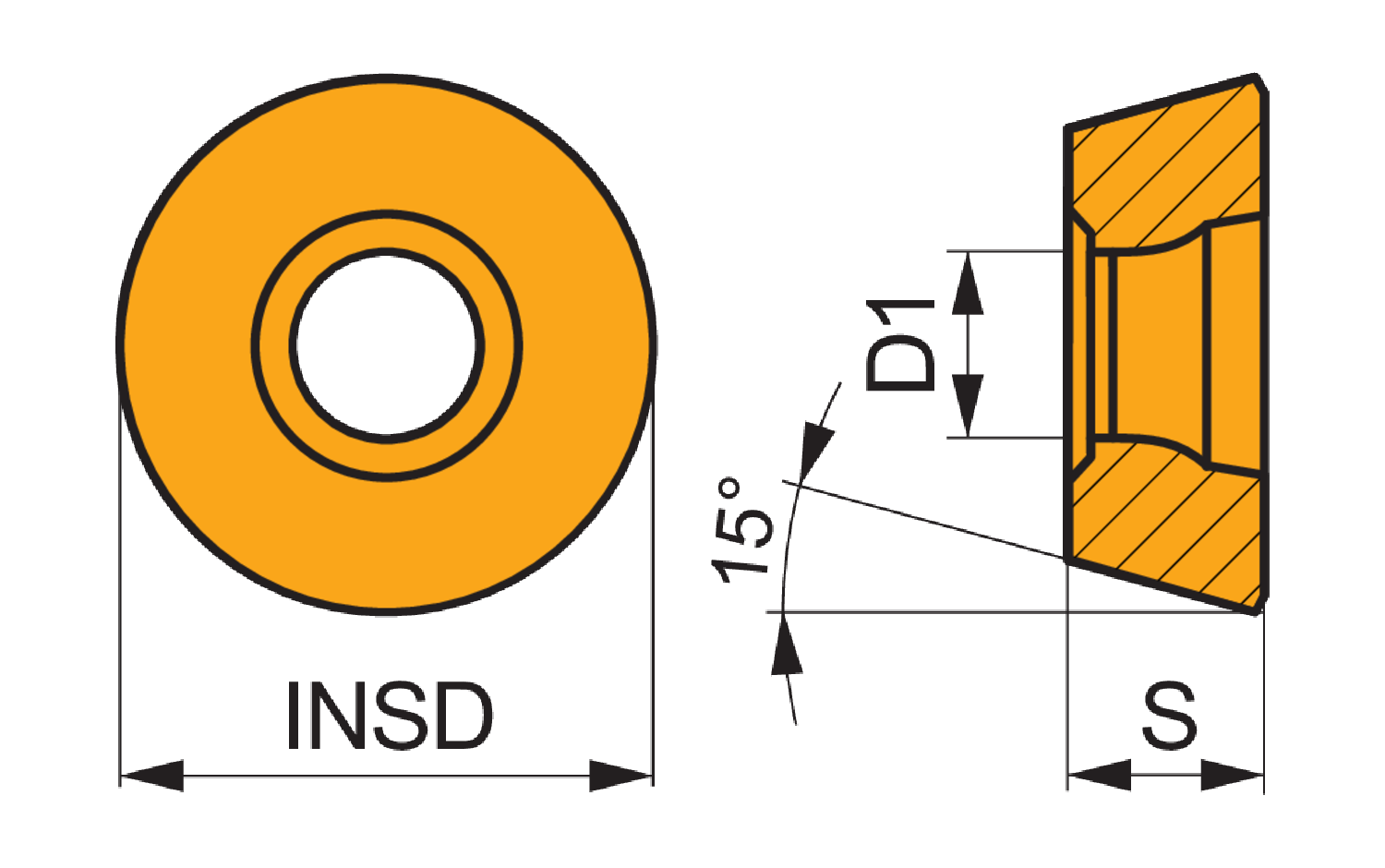

RDMX 12T3MOT:M8310 — Line Drawing PDF Download
