SBKX 2207DZER:M8326

SBKX 2207DZER:M8326

SKU DOR6801307
by Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.93 - $67.93
$67.93
$67.93 - $67.93
$67.93

Sold in packs of: 5

Single-sided milling insert SBKX 2207, square for a maximum depth of cut of .5906", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills FSB22X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SBKX 2207DZER:M8326
GradeM8326
Chipbreaker (CBMD)No chipbreaker
Product Number6801307
Product FamilySBKX 22
Insert Geometry
Insert DesignSBKX
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6801307
EAN3603602996886
File Type Download

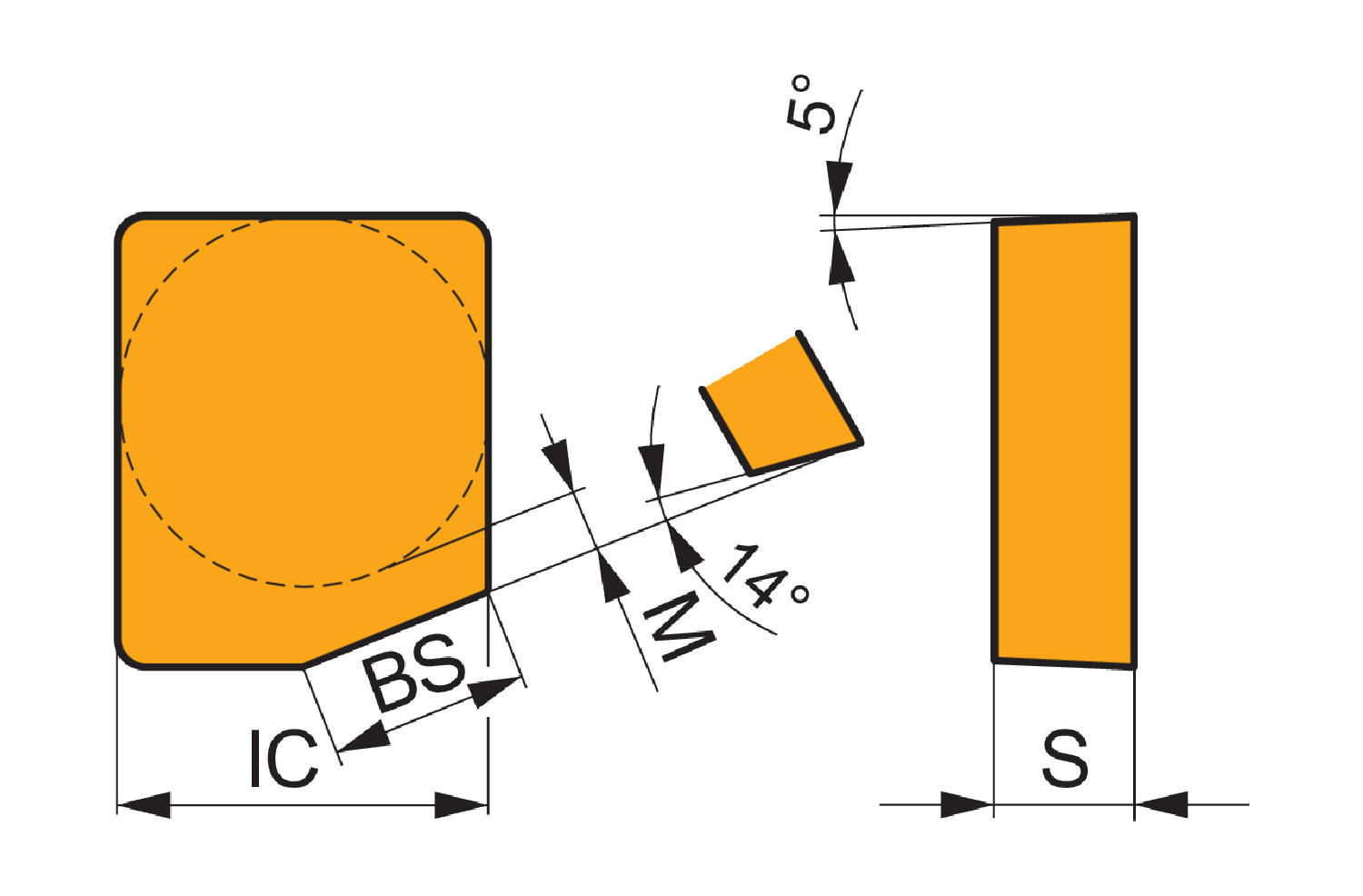

SBKX 2207DZER:M8326 — Line Drawing PDF Download
