P84212.7X6.0

P84212.7X6.0

SKU DOR6814219
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.14 - $53.14
$53.14
$53.14 - $53.14
$53.14

Sold in packs of: 1

Ball-nosed cone burr (L shape), diameter 12.7mm with 32mm length of cut, 77mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, AL single cut flute style with wide spaced edged for enlarging holes, rounding edges and surface-finishing in tight narow angles or other hard-to-reach areas in wrought, cast aluminium and glass fibre reinforced polymers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P84212.7X6.0
GradeBright
Product Number6814219
Product FamilyP842
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)3.0315"
Overall Length — mm (OAL)77.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number46814219
EAN7320760688601
File Type Download

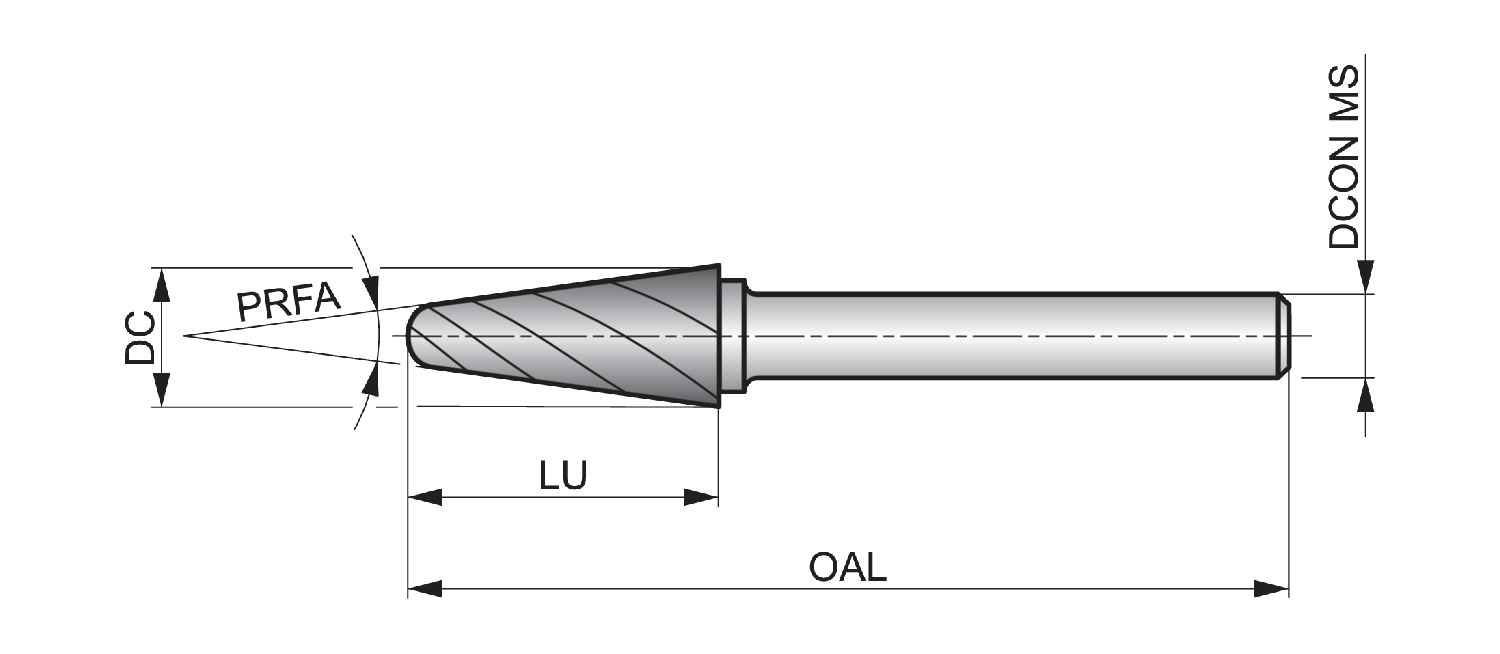

P84212.7X6.0 — Line Drawing PDF Download
