2636-05-25

2636-05-25

SKU DOR6827937
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$588.00 - $588.00
$588.00
$588.00 - $588.00
$588.00

Sold in packs of: 1

Chamfer mill with double negative geometry which utilises 1 off TCMT 16T304E-FM:T83.. or TCMT 16T308E-FM:T83.. single-sided insert, cutting diameter 5 to maximum 31mm with 10 -80° approach angle and 25mm Weldon shank according to DIN 1835B, 100mm overall length for chamfering with a maximum depth of cut of 8.5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2636-05-25
Product Number6827937
Product Family2636
Insert Geometry
Depth of Cut Max — mm (APMX)8.5 mm

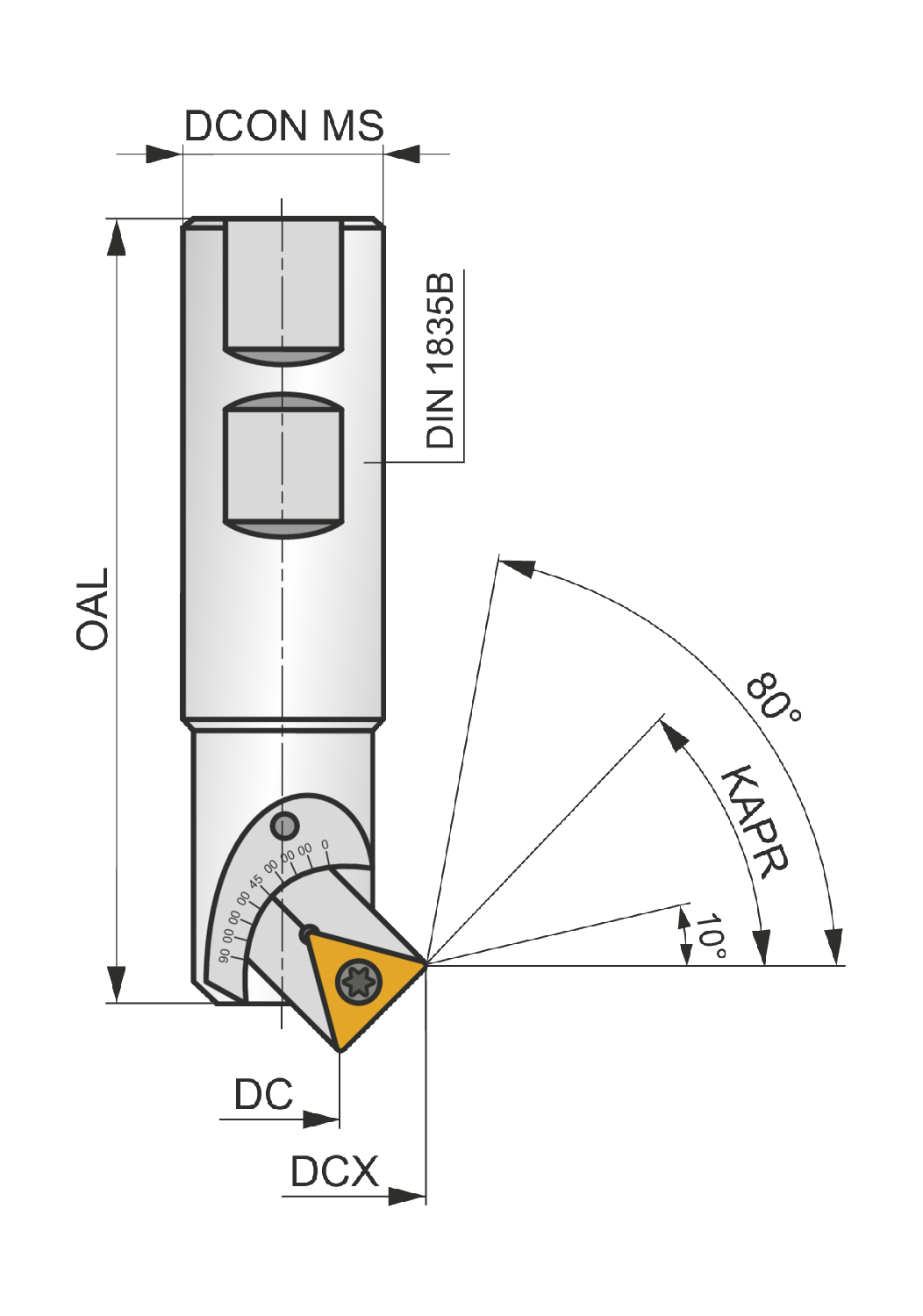

Dimensions
Cutting Diameter — in (DC)0.197"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)1
Tool Information
Tool Design2636
ShankWeldon shank DIN 1835B
Direction of ToolRight
Reference Numbers
EDP Number6827937
EAN3603603006089
File Type Download
2636-05-25 — 3D Model STP Download
2636-05-25 — 2D Model DXF Download
2636-05-25 — Line Drawing PDF Download
