LNGU 160708FR-FA:HF7

LNGU 160708FR-FA:HF7

SKU DOR6941432
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.69 - $33.69
$33.69
$33.69 - $33.69
$33.69

Sold in packs of: 10

Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SLN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGU 160708FR-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number6941432
Product FamilyLNGU 16-FA

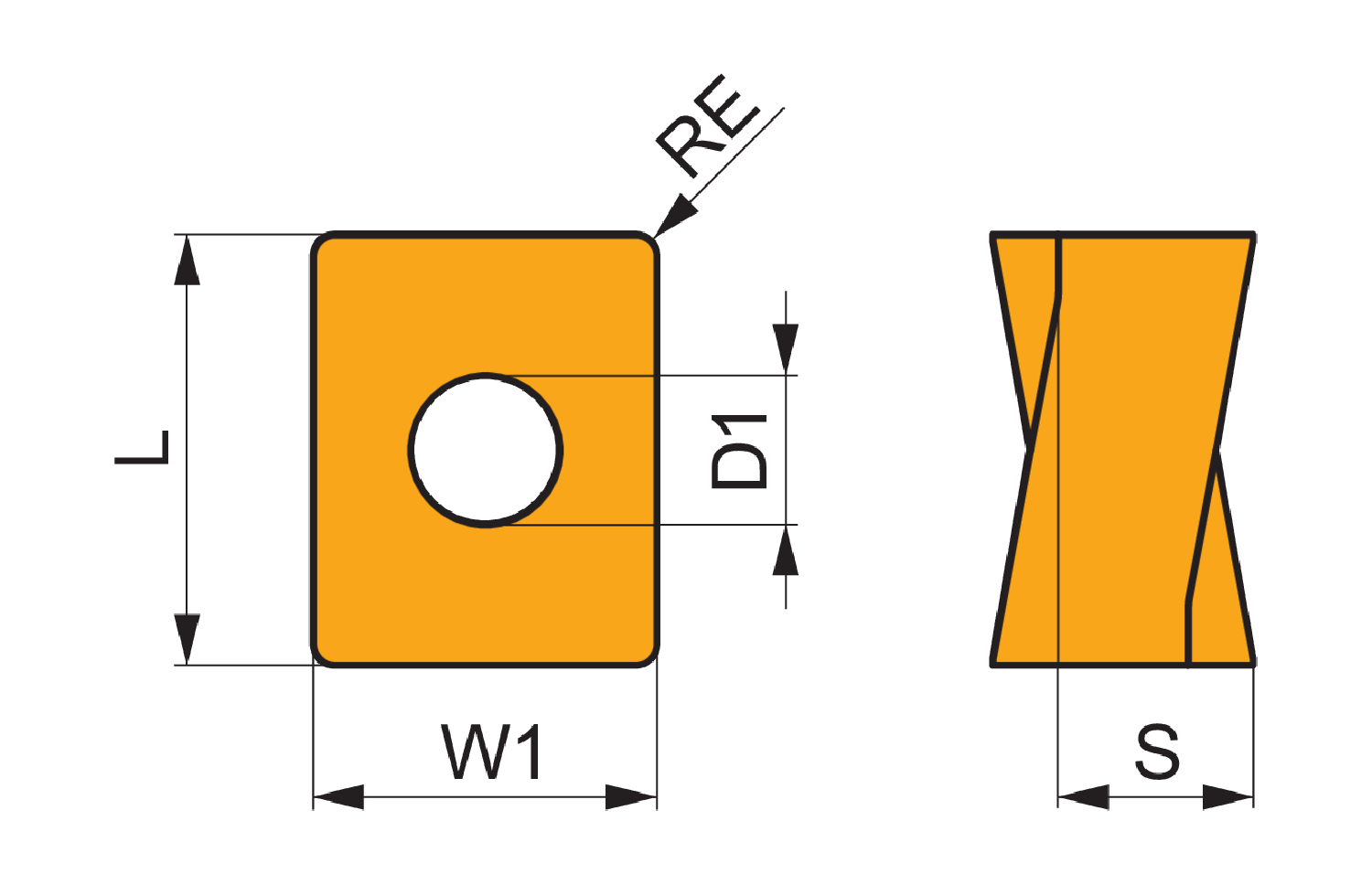

Insert Geometry
Insert DesignLNGU
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.295"
Insert Thickness — mm (S)7.5 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number6941432
EAN3603603081291
File Type Download
LNGU 160708FR-FA:HF7 — Line Drawing PDF Download
