PPH-16/02-025-P08

PPH-16/02-025-P08

SKU DOR7024748
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$522.00 - $522.00
$522.00
$522.00 - $522.00
$522.00

Sold in packs of: 1

Copy end mill which utilises 1 off PPH 16, PPHE 16, PPHT 16 or PPHF 16 single-sided insert, cutting diameter 16mm with M8 threaded shank for standard modular tool-holders, 25mm protrusion length for copy milling with a maximum depth of cut of 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-16/02-025-P08
Product Number7024748
Product FamilyK2-PPH

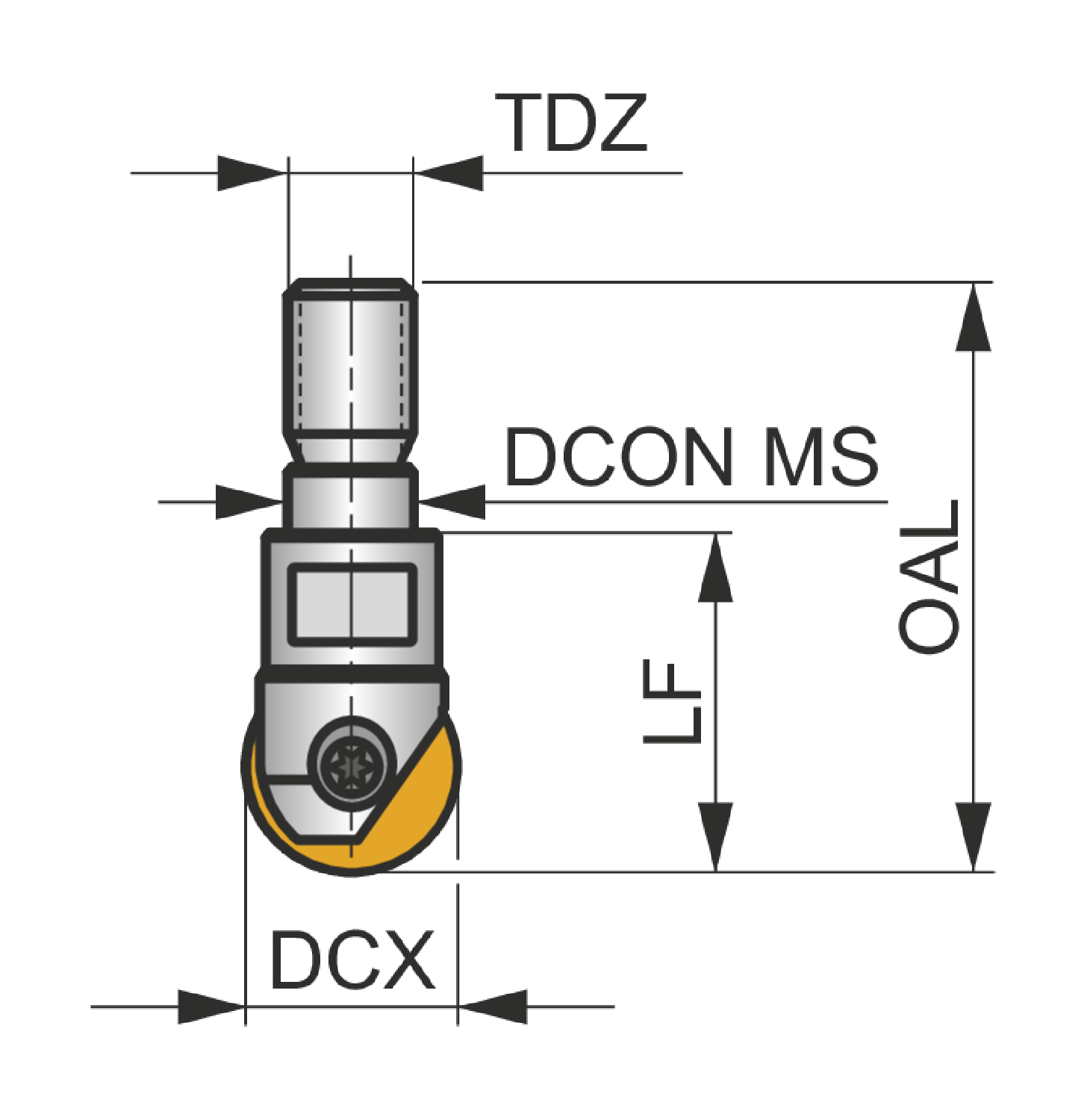

Dimensions
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignK2-PPH
ShankThreaded coupling
Reference Numbers
EDP Number7024748
EAN3603603104211
File Type Download
PPH-16/02-025-P08 — 3D Model STP Download
PPH-16/02-025-P08 — 2D Model DXF Download
PPH-16/02-025-P08 — Line Drawing PDF Download
