P7158.0X6.0

P7158.0X6.0

SKU DOR7059564
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.31 - $31.31
$31.31
$31.31 - $31.31
$31.31

Sold in packs of: 1

Flame burr (H shape), diameter 8mm with 19mm length of cut, 64mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, ST single cut flute style with chip-breakers and medium spaced edges for round edge contouring and welding preparation in steel and cast steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P7158.0X6.0
GradeBright
Product Number7059564
Product FamilyP715
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number47059564
EAN7320760693407
File Type Download

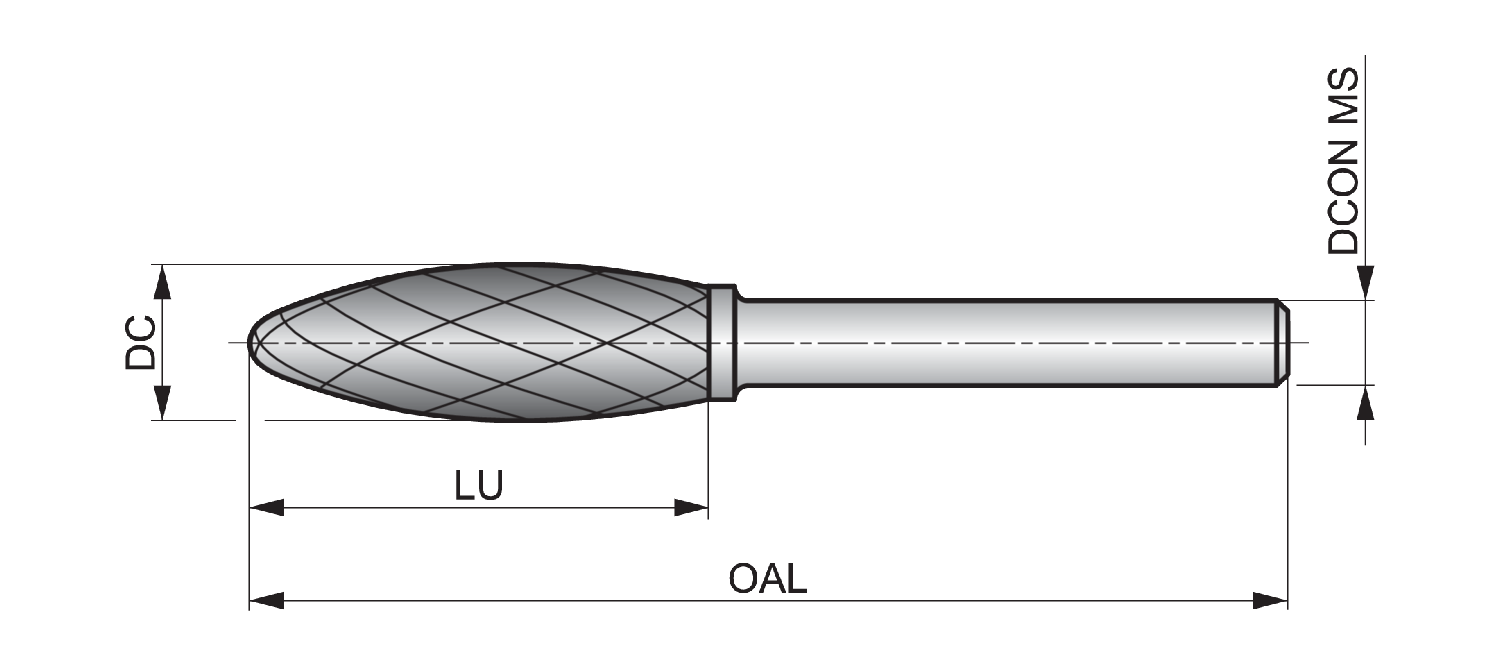

P7158.0X6.0 — Line Drawing PDF Download
