100A06R-SMORC12-C

100A06R-SMORC12-C

SKU DOR7155899
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$728.00 - $728.00
$728.00
$728.00 - $728.00
$728.00

Sold in packs of: 1

Copy face mill with double negative geometry which utilises 6 off RCMT 1204MO.. single-sided inserts, cutting diameter 100mm with 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 6.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A06R-SMORC12-C
Product Number7155899
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

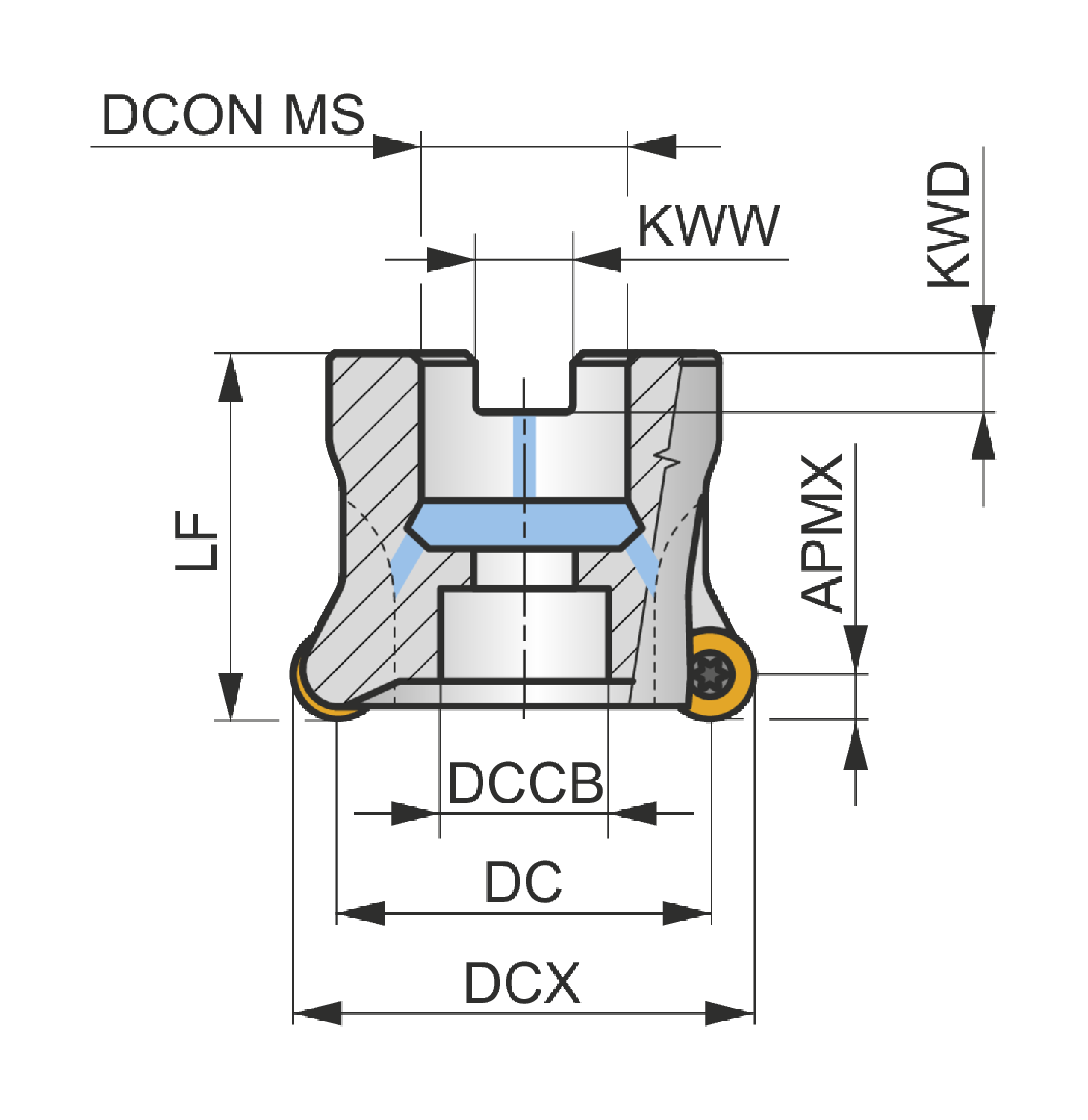

Dimensions
Cutting Diameter — in (DC)3.465"
Cutting Diameter — mm (DC)88.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRC12
ShankShell mill DIN 8030 A
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number7155899
EAN3603603162051
File Type Download
100A06R-SMORC12-C — 3D Model STP Download
100A06R-SMORC12-C — 2D Model DXF Download
100A06R-SMORC12-C — Line Drawing PDF Download
