PPHT 250020-A2:2003

PPHT 250020-A2:2003

SKU DOR7156124
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.43 - $105.43
$105.43
$105.43 - $105.43
$105.43

Sold in packs of: 10

Toroidal copy milling insert with a diameter of .9843" and .0787" corner radii for a maximum depth of cut of .0787", A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 250020-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156124
Product FamilyPPHT

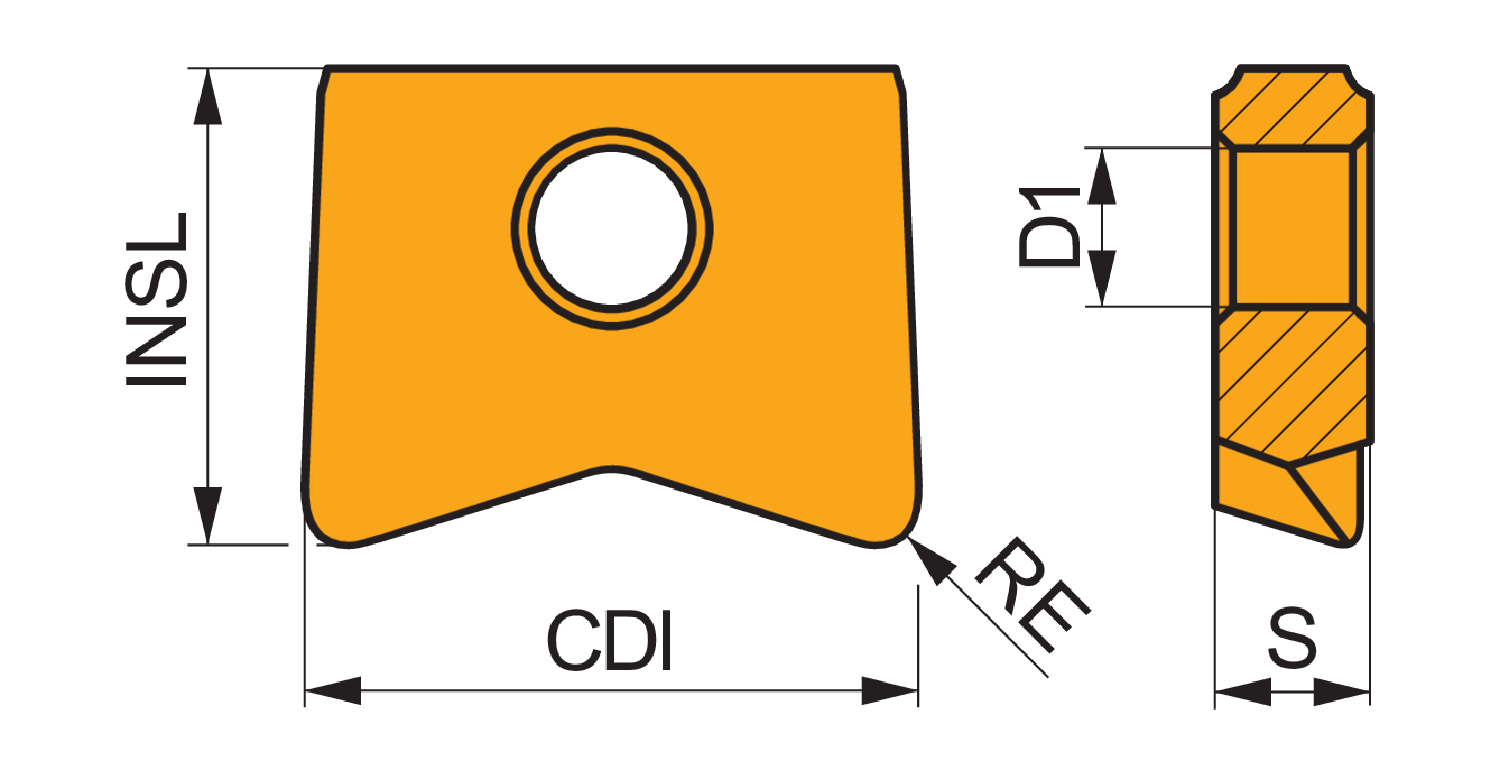

Insert Geometry
Insert DesignPPHT
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.236"
Insert Thickness — mm (S)6.0 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156124
EAN3603603162808
File Type Download
PPHT 250020-A2:2003 — Line Drawing PDF Download
